PowerView 500
- Optically-bonded 5-inch LCD designed for harsh environments
- High-brightness screen for full sunlight viewability
- Glass display surface offers enhanced clarity and strength
- Glove-friendly touch panel
POWERVIEW® EDGE-TO-EDGE DISPLAYS

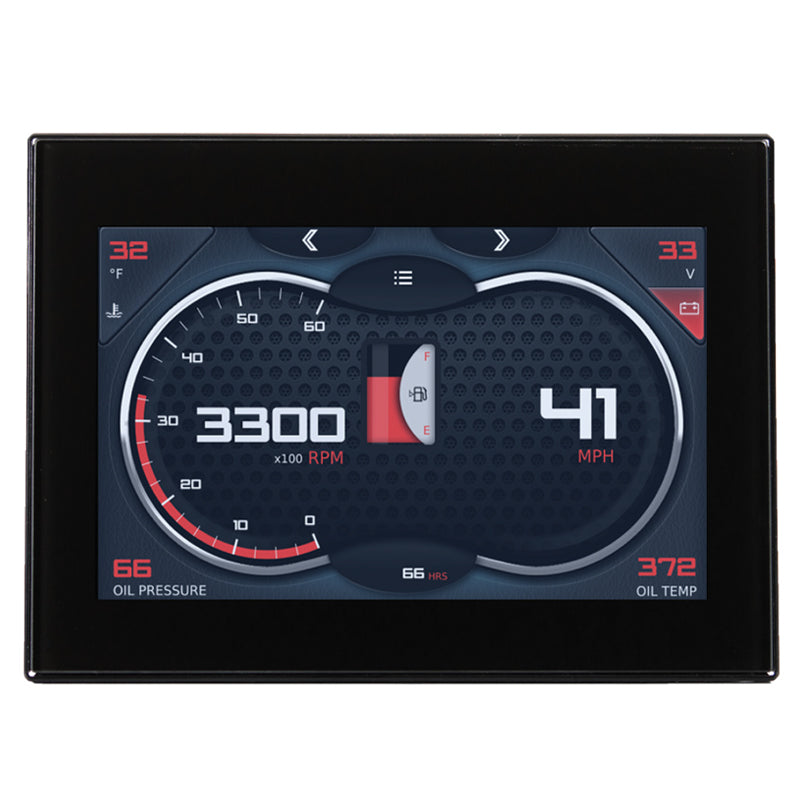

The PowerView 500 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The PV500 is easily viewed in full sunlight and contains an optically bonded LCD inside its IP67-rated case to keep it safe in all weather environments. The PV500’s high-speed processor allows it toboots quickly and render high-quality graphics and animations. Its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications.
POWERVIEW® EDGE-TO-EDGE DISPLAYS
The PowerView 500 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The PV500 is easily viewed in full sunlight and contains an optically bonded LCD inside its IP67-rated case to keep it safe in all weather environments. The PV500’s high-speed processor allows it toboots quickly and render high-quality graphics and animations. Its available glove-friendly touchscreen and rugged design make it a perfect solution for all types of environments and applications.
| Processor: | Renesas® RZ/G1e Arm® Cortex®-A7 dual-core processor @ 1.0 GHz (32-bit) |
| Software: | QNX® Realtime Operating System |
| Storage: | 8 GB flash memory |
| RAM: | 256 MB DDR3-SDRAM |
| Display Area: | 5-inch (108 mm [H] x 64.8 mm [V]) |
| Type: | LVDS TFT LCD with LED backlight, 24-bit color |
| Resolution: | 800 x 480 (WVGA) |
| Operating temperature: | -30°C to +85°C (-22°F to +185°F) |
| Storage Temperature: | -40°C to +85°C (-40°F to +185°F) |
| Protection: | IP66 and IP67, front and back, for outdoor use |
