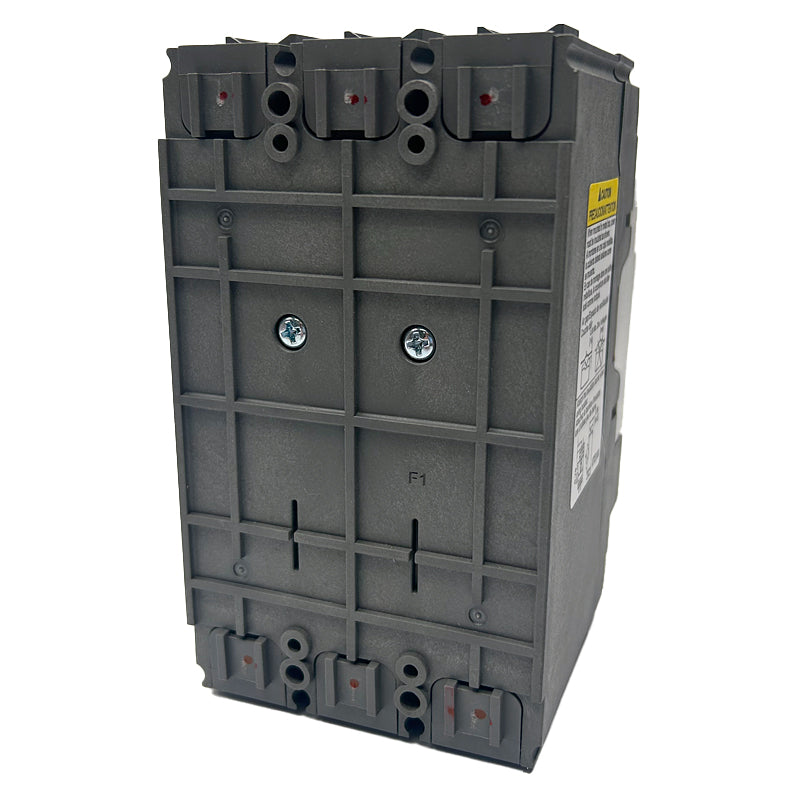

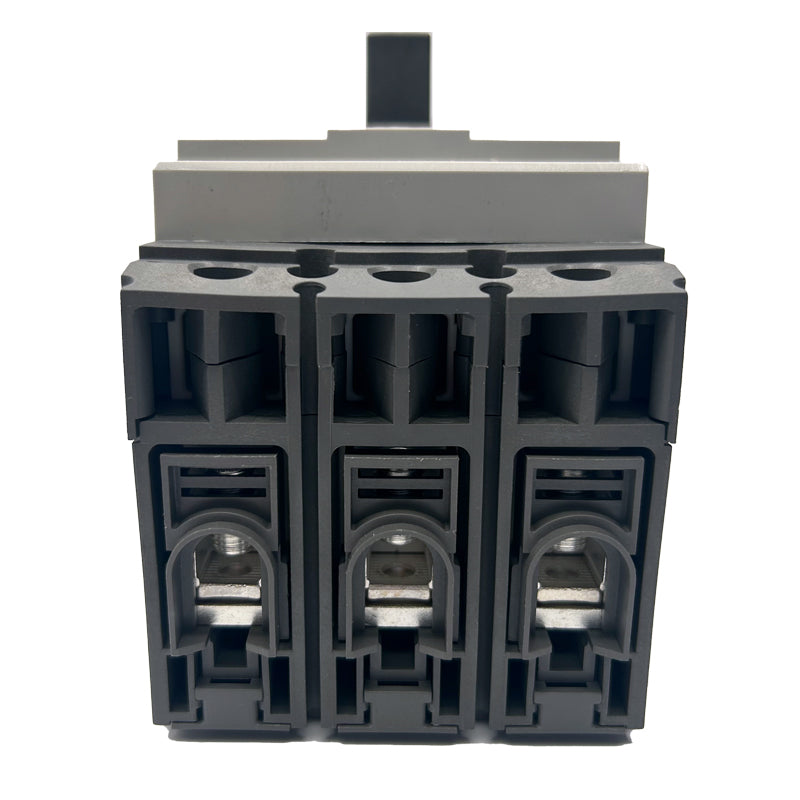

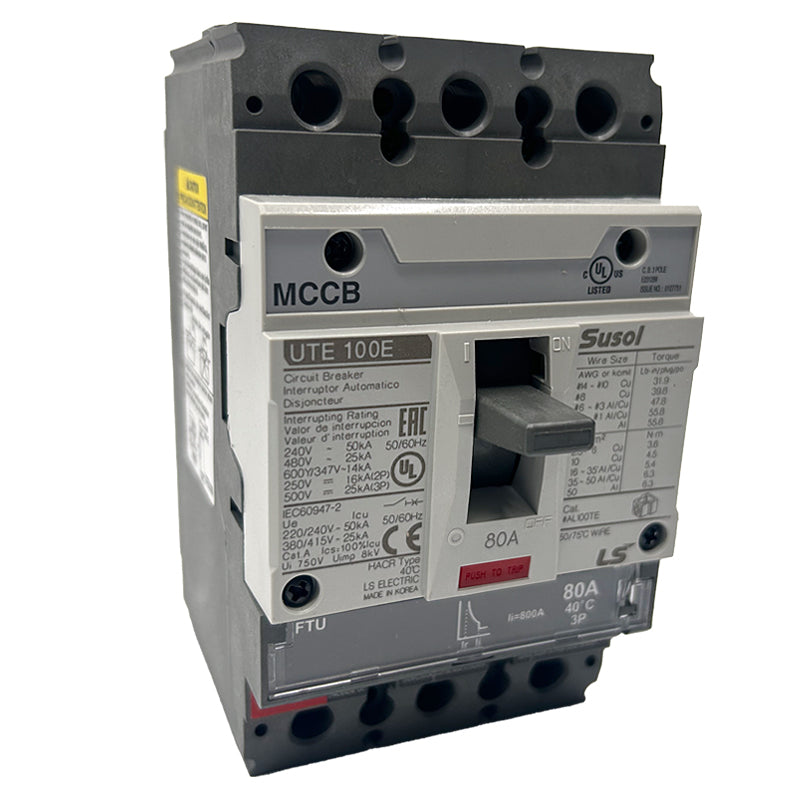

UTE100E FTU 80A 3P LL UL
![UTE100E FTU 80A 3P LL UL]()
![UTE100E FTU 80A 3P LL UL]()
![UTE100E FTU 80A 3P LL UL]()
UTE100E FTU 80A 3P LL UL
Available: 10 items in stock
- Fixed Thermal, Fixed Magnet
- 80A Current Rating, 3 Number of Poles
- Lugs Line/Load Side
- Thermal-Magnetic 40 A through 150 A
- Suitable for Branch Circuit Protection
- UL489 Listed for use on UL508 Control Panels
- Shunt Trip, Undervoltage Release and Other Accessories available
- Line and Load Lug Terminals included on All MCCBs
- Toggle Handle provides Three Positions (On/Off and Tripped)
- HACR (Heating, Air Conditioning and Refrigeration Rated)
- Auxiliary Switch, Alarm Switch, Shunt Trip and Undervoltage
- Release can be installed in the field
- Door-Mounted or Flange-Mounted, Flex Shaft Operating Handles available
- All Frame Sizes Suitable For Reverse-Feed Applications
- All Breakers include Mounting Hardware
- UL489 MCCB, File E231289
- UL489 Circuit-Breaker Accessories, File E223241
- Product SKU: 02050009UL
- Category:Circuit Breakers
- Contact for high volume orders (25 or more) for special pricing
$277.17 CAD
UL Molded Case Circuit Breakers
LS ELECTRIC molded case circuit breakers (MCCB) are designed to protect low voltage electrical systems from overloads and short circuits. The Susol series (UTS/UTE) is a compact UL489 listed MCCB with ratings available from 15 to 1200 amps in seven frame sizes.
UL Molded Case Circuit Breakers
LS ELECTRIC molded case circuit breakers (MCCB) are designed to protect low voltage electrical systems from overloads and short circuits. The Susol series (UTS/UTE) is a compact UL489 listed MCCB with ratings available from 15 to 1200 amps in seven frame sizes.
| Model: | UTE100E-FTU-80-3P-LL-UL |
| Category: | Circuit Protection Circuit Breakers |
| Series: | UTE100E |
| Mounting Type: | Panel Mount |
| Breaker Type: | Thermal Magnetic |
| Current Rating (Amps): | 80A |
| Voltage Rating - AC: | 600 V |
| Voltage Rating - DC: | 500 V |
| Actuator Type: | Lever |
| Number of Poles: | 3 |
| Approval Agency: | cULus, UL489 |
