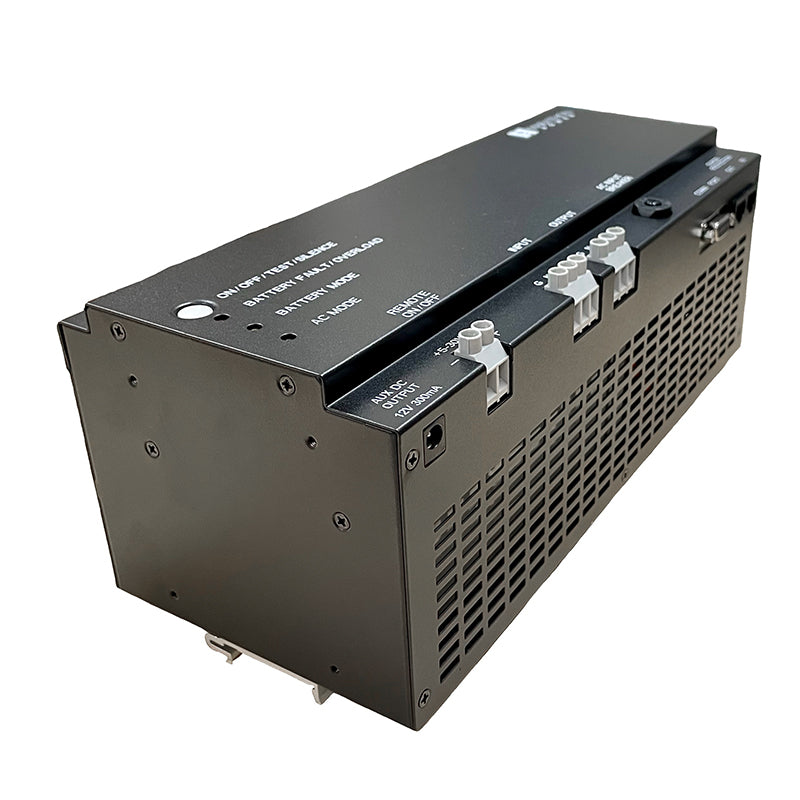

SDRS-0500-H1
Categories
Marathon Power

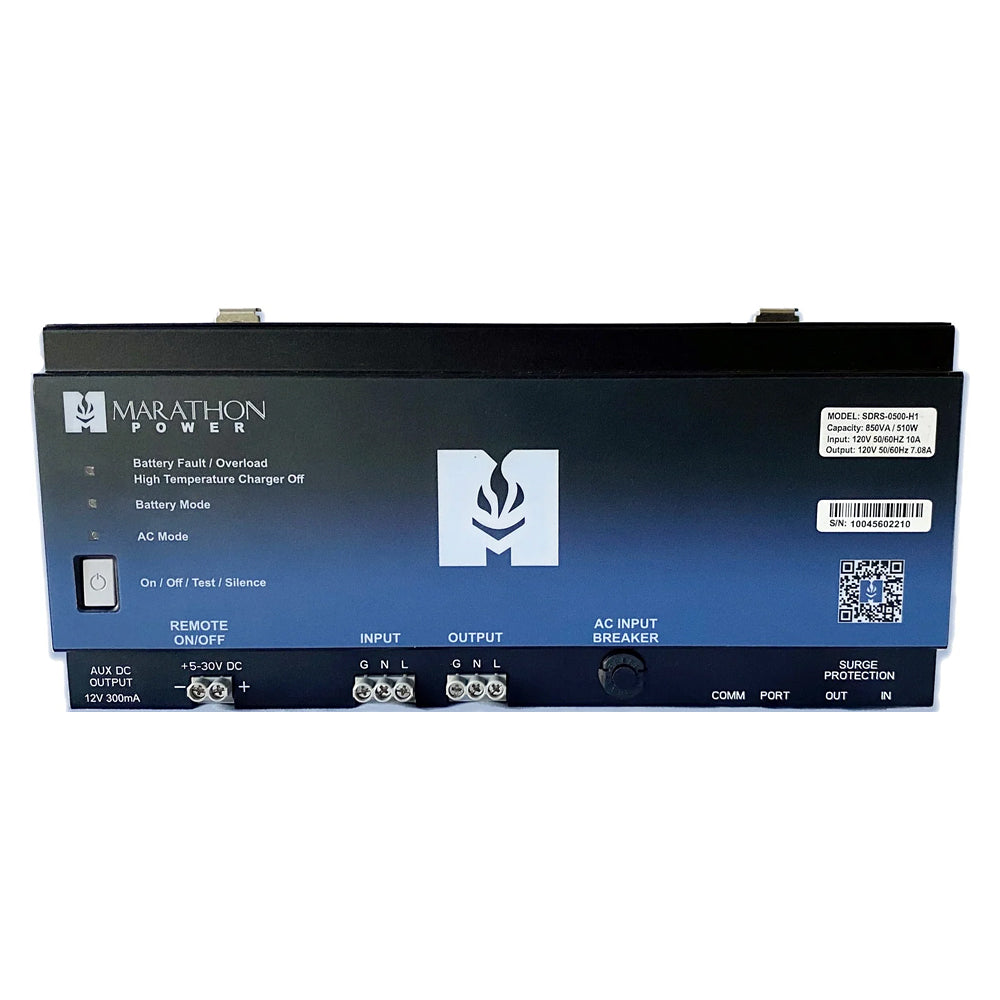

SDRS-0500-H1

Available: Out of Stock
  • Recognized to UL 1778 standards (120V Models)
  • Suitable for UL508
  • Compact design in a rugged, industrially-rated enclosure

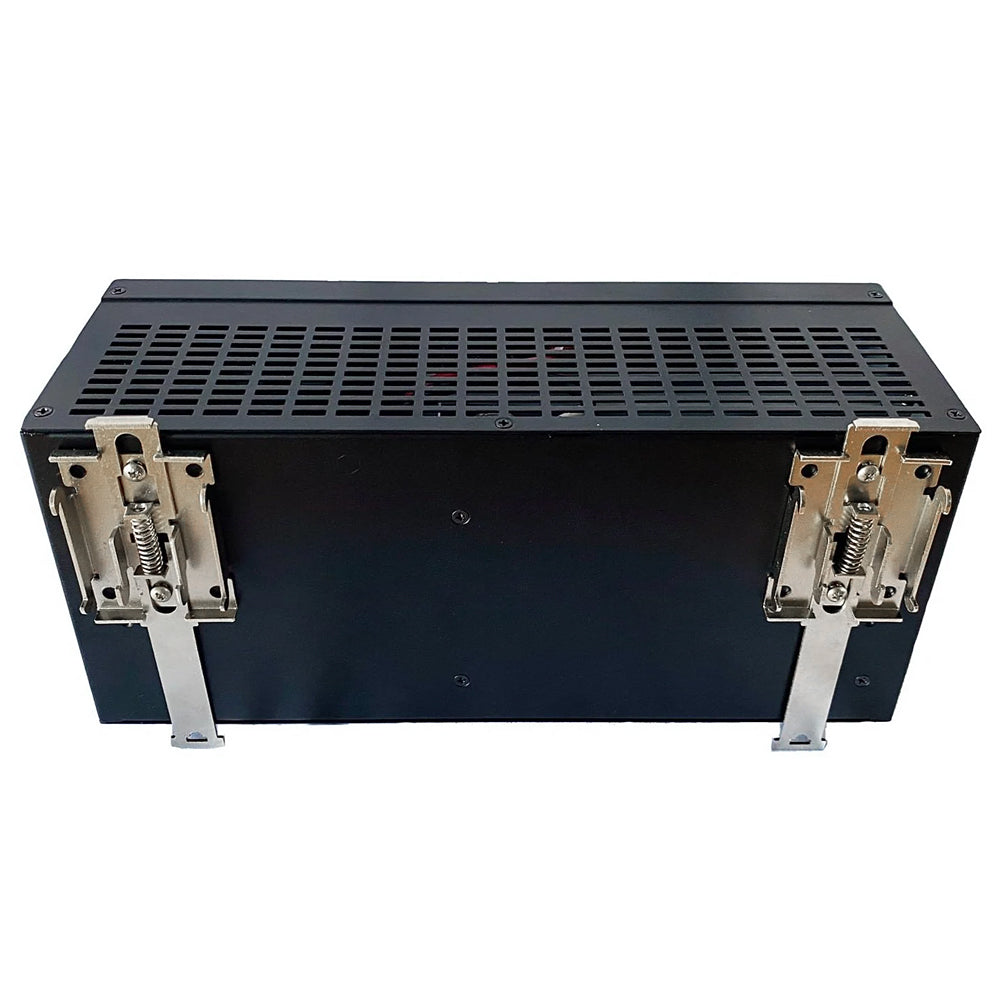

  • DIN Rail, shelf or panel mount
  • For wide temperature ranges, harsh environment
  • IP20-rated hardwire terminals for AC connections
  • Various self-diagnostics and alarm output
  • Easily removable, hot-swappable battery with integral pull tab
  • Overload, overcharge and fault protection in all modes
  • No internal fan, no extra cooling required

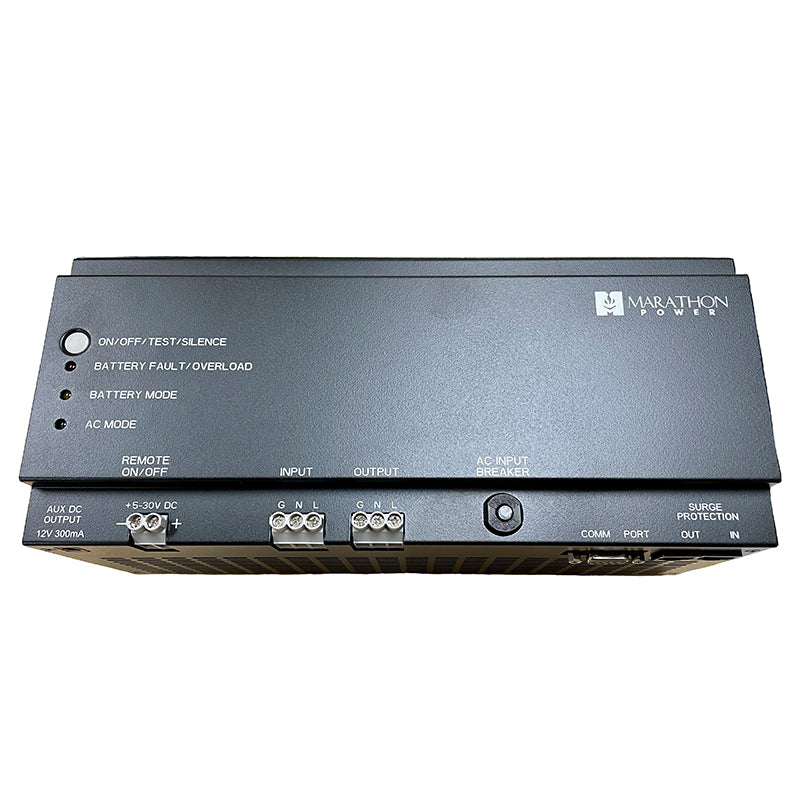

  • LED Status Indicators
  • Various communication option
  • Optional PCB conformal coating
$827.31 CAD

Marathon Power

DIN RAIL UPS 120V

The new Sprint Series DIN Rail AC UPS is an industrial-rated uninterruptible power supply that features a wide operational temperature range in a compact package. Using the latest micro-controller technology, the unit provides mitigation from power quality issues that adversely affect critical loads found in industrial automation, process control and other similar applications.

APPLICATIONS: Industrial Automation, Process Control, PLC’s, Mini Computers, SCADA, OEM Equipment, Robotics, Material Handling.

Datasheet (PDF)

Marathon Power

DIN RAIL UPS 120V

The new Sprint Series DIN Rail AC UPS is an industrial-rated uninterruptible power supply that features a wide operational temperature range in a compact package. Using the latest micro-controller technology, the unit provides mitigation from power quality issues that adversely affect critical loads found in industrial automation, process control and other similar applications.

APPLICATIONS: Industrial Automation, Process Control, PLC’s, Mini Computers, SCADA, OEM Equipment, Robotics, Material Handling.

Datasheet (PDF)

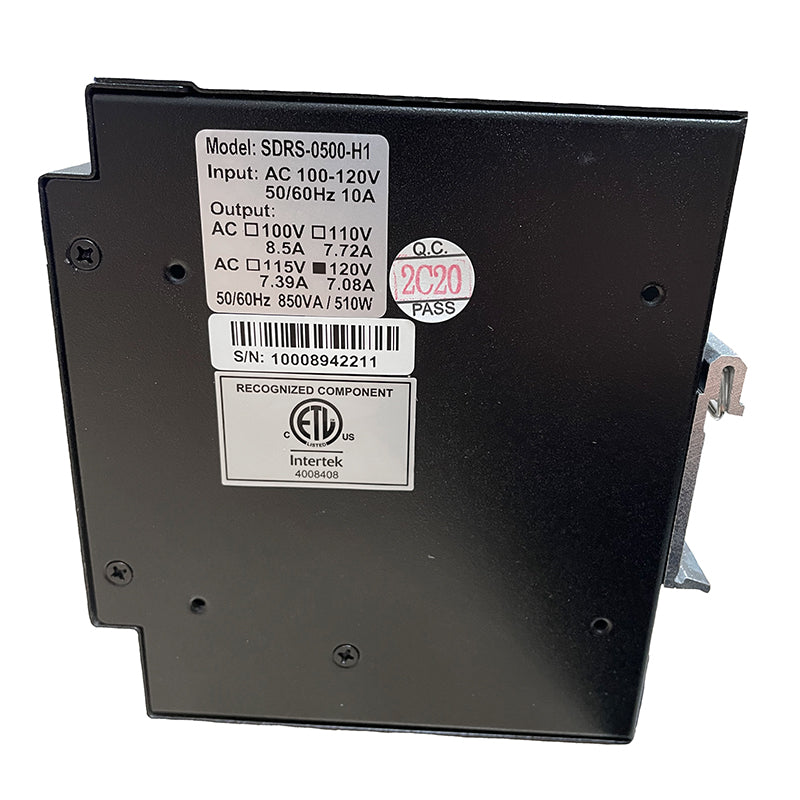

Model: SDRS-0500-H1
Capacity:  850VA / 500W
INPUT
Voltage: 120V (+10%, -20%); 230V (±20%); 240V(+15% -20%)
Frequency: 50Hz ± 10%;
60Hz ± 10%
Maximum Input Current: 10A
Inrush Current: 25A
Transient Suppression:  EN61000-4-5,
L-N: 1KV, L-G or N-G: 2KV
Short Circuit Protection: Yes
Battery String Voltage: 12VDC
OUTPUT
Power: 500W / 850VA
Output Voltage: 120V / 230V / 240V ± 5%
Frequency (On Battery): 50 / 60HZ ±0.3Hz
Output Power Factor: 0.6
Waveform: Stepped Square Wave
Load Crest Factor: 3:1
Transfer Time: 4-6 ms typical
Overload Capacity: UPS automatic power off if overload exceeds 105% of nominal at 20 seconds
120% at 10 seconds
130% at 3 seconds
Short Circuit Protection: UPS output cut off immediately
BATTERY
Type: Sealed, maintenance-free lead acid battery
Battery Quantity: 12V 9Ah x 1
Typical Recharge Time: 8 hours to 90% capacity after full discharge
