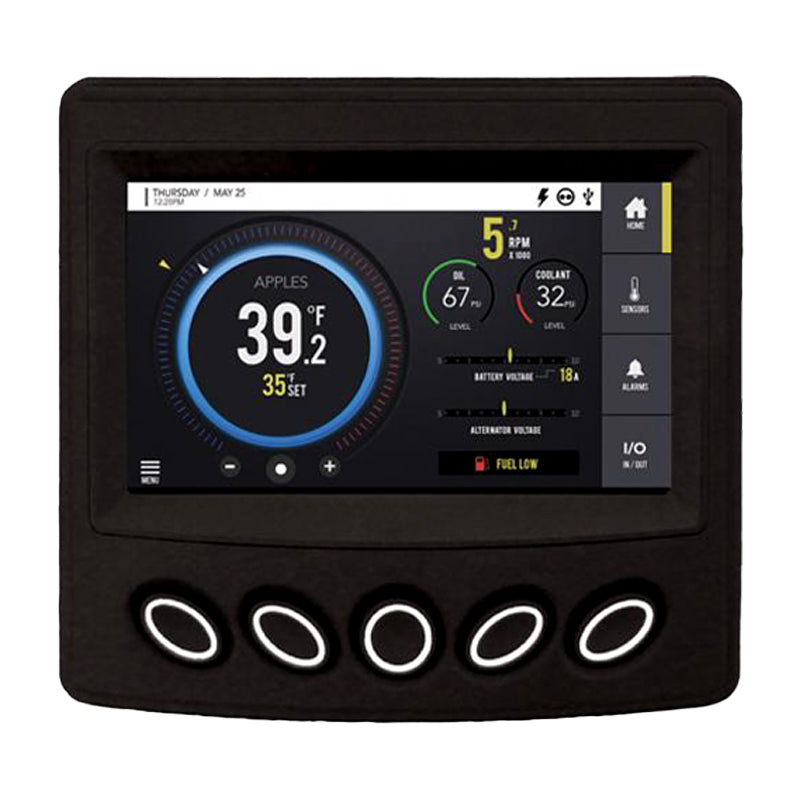

PowerView® 485 - 78700639
- 4.3-inch color display capable of rich, color graphics
- Fully featured standard software ready for Tier 4 and Stage V engines
- Optically-bonded glare-free LCD screen for superior visibility in sunlight
- Customizable I/O with RS485 serial connection
- 5 tactile configurable soft keys
- Product SKU: 78700639
- Category:Display Solutions,New Products
- Contact for high volume orders (25 or more) for special pricing
FULL-COLOR CONTROLLER WITH RS485 CONNECTION FOR ENGINE APPLICATIONS
The PV485 is an all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications.
It’s small but rugged design offers a wide array of configurable I/O, including RS485, to support both mechanical and J1939 electronic engines. The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier. The display’s bonded LCD can easily be viewed in full sunlight, and its rugged tactile soft keys and durable design make it a perfect solution for all types of environments and applications.
FULL-COLOR CONTROLLER WITH RS485 CONNECTION FOR ENGINE APPLICATIONS
The PV485 is an all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications.
It’s small but rugged design offers a wide array of configurable I/O, including RS485, to support both mechanical and J1939 electronic engines. The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier. The display’s bonded LCD can easily be viewed in full sunlight, and its rugged tactile soft keys and durable design make it a perfect solution for all types of environments and applications.
| COMPUTING | |
| Microprocessor: | Freescale i.MX35 32bit, 532MHz |
| Storage: | 256 MB flash memory |
| RAM: | 128 Mbytes DDR2 SDRAM |
| DISPLAY | |
| Screen Size: | 4.3 inches, 109mm color transmissive TFT LCD |
| Resolution: | WQVGA, 480 x 272 pixels, 16-bit color |
| Brightness: | 900-1000 cd/m² |
| HARDWARE | |
| Keypad: | 5 soft keys |
| Real Time Clock: | Available with battery backup |
| Connectors: | (1) 35-pin AMPSEAL connector (AMP 776231-1) |
| ELECTRICAL | |
| Operating Voltage: | 6 to 32 VDC protected against reversed polarity and load-dump |
| Inputs: | (4) Analog 0–5 VDC, 4–20 mA (2) Analog, battery voltage (3) Discrete digital (1) Frequency In (2Hz - 10kHZ), 5Vpk-pk min, 49Vpk-pk max |
| Outputs: | (4) 500 mA switched low-side (1) Analog 0–5 VDC |
| INCLUDED SOFTWARE | |
| Languages: | English, French, German, Italian, Spanish |
| COMMUNICATION | |
| CAN: | (1) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging |
| Serial: | RS-485: 1 MODBUS® Master/Slave port, PVA gages |
| USB: | USB 2.0 full speed host for programming |
| ENVIRONMENTAL | |
| Operating Temperature: | -40 to +85°C (-40 to 185°F) |
| Storage Temperature: | -40 to +85°C (-40 to 185°F) |
| Protection: | IP67, front and back |
| Vibration: | Random vibration, 7.86 Grms (5-2000 hz), 3 axes |
| Shock: | ± 50G in 3 axe |
| EMC/EMI: | SAE J1113 or customer-specified (CE) - EN61000-6-2, EN12895, ISO 13766 |
| Case: | Polycarbonate / ABS |
