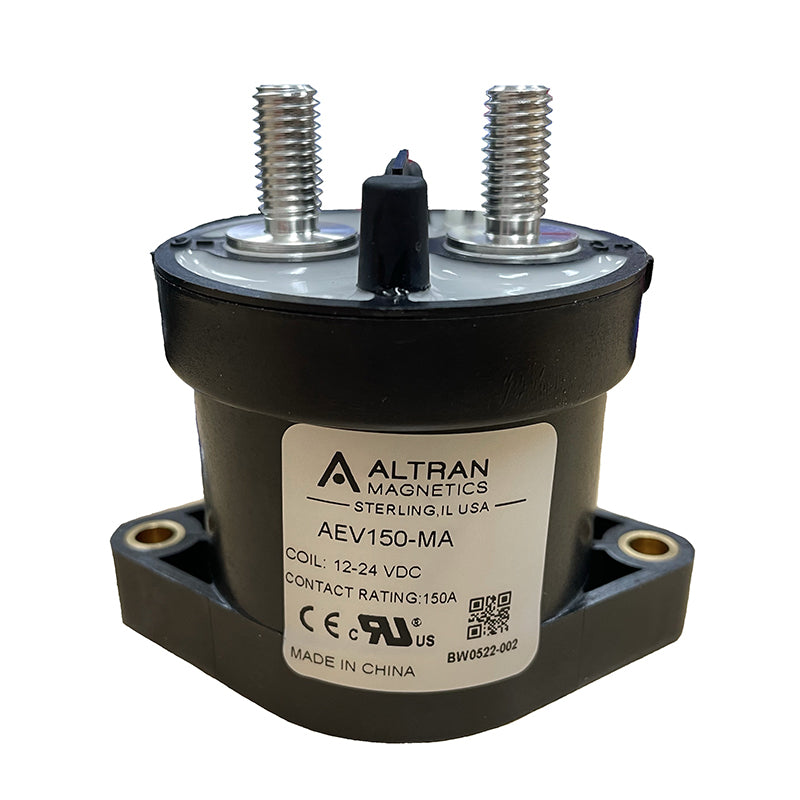

AEV150-MA
![AEV150-MA]()
AEV150-MA
Available: 45 items in stock
- HIGH CURRENT AND HIGH VOLTAGE: Nitrogen sealed contacts to minimize arcing
- COMPACT STRUCTURE, LOW NOISE: Contact design yields reduced unit size, low noise while carrying or switching currents
- COIL ECONOMIZER: Built-in coil economizer – only 1.7W holding power @12VDC, limits back EMF to 0V
- HIGH SAFETY: There is no arc leakage due to tight sealing
- HIGH CONTACT RELIABILITY: Stable contact resistance no matter how harsh the environment with sealed contacts
- Product SKU: AEV150-MA
- Category:AC/DC Contactors
- Contact for high volume orders (25 or more) for special pricing
$119.19 CAD
AEV150 SERIES
AEV150 series DC contactors are used for battery power supply, DC power control, circuit protection and other electric vehicle power switch controls. Can also be used in uninterruptible power supply and other electronic control systems.
AEV150 SERIES
AEV150 series DC contactors are used for battery power supply, DC power control, circuit protection and other electric vehicle power switch controls. Can also be used in uninterruptible power supply and other electronic control systems.
| Model: | AEV150-MA |
| Contact Arrangement: | 1 Form X (SPST-NO DM) |
| Rated Operating Voltage | 12-900VDC |
| Continuous (Carry) Current: | 150A -200A (65 ˚C) |
| Voltage Drop (@150A): | ≤60mV |
| Mechanical Life: | 200,000 Cycles |
| Aux. Contact Arrangement: | 1 Form A |
| Certification: |  |
