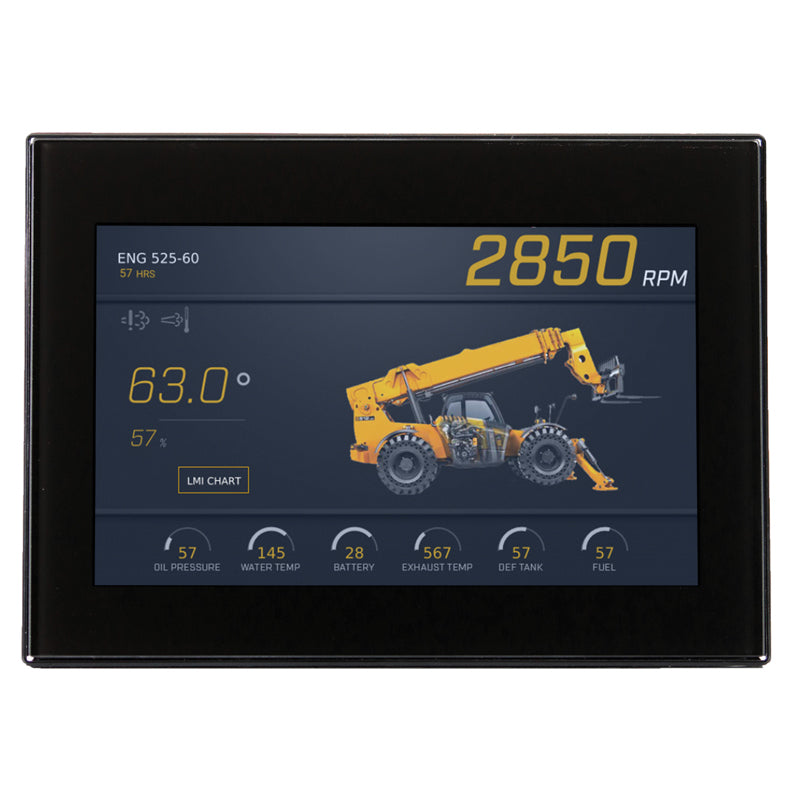

PowerView 700
- 7-inch display with IP69K-rated enclosure for harsh environments
- Glass display surface offers enhanced clarity and strength
- Optically-bonded, high-brightness screen for full sunlight viewability
- Connect four video inputs and watch two feeds simultaneously
- Glove-friendly touchscreen
POWERVIEW® EDGE-TO-EDGE DISPLAYS
The PowerView 700 is a full-color 7-inch configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. With an IP69K-rated enclosure, glove-friendly capacitive touch screen and an optically-bonded cover glass for superior sunlight visibility, the PV700 thrives in all-weather environments. The button-less modern design keeps the PV700 compact and durable for in-cab or exterior applications with the perfect amount of power to deliver increased productivity, efficiency and control. New for the PV700 is the ability to host four video inputs with the ability to view two video feeds simultaneously.
POWERVIEW® EDGE-TO-EDGE DISPLAYS
The PowerView 700 is a full-color 7-inch configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. With an IP69K-rated enclosure, glove-friendly capacitive touch screen and an optically-bonded cover glass for superior sunlight visibility, the PV700 thrives in all-weather environments. The button-less modern design keeps the PV700 compact and durable for in-cab or exterior applications with the perfect amount of power to deliver increased productivity, efficiency and control. New for the PV700 is the ability to host four video inputs with the ability to view two video feeds simultaneously.
| Processor: | Renesas® R-Car M2 with Arm® Cortex®-A15 dual-core processor @ 1.5 GHz (32-bit) |
| Storage: | 8 GB flash memory |
| RAM: | 512 MB DDR3-SDRAM |
| Screen Size: | 7-inch (178 mm) |
| Type: | LVDS TFT LCD with LED backlight, 24-bit color |
| Resolution: | 800 x 480 (WVGA) |
| Operating temperature: | -40°C to +75°C (-40°F to +167°F) |
| Storage Temperature: | -40°C to +85°C (-40°F to +185°F) |
| Protection: | IP66, IP67 and IP69K, front and back, for outdoor use |
