Motor Control

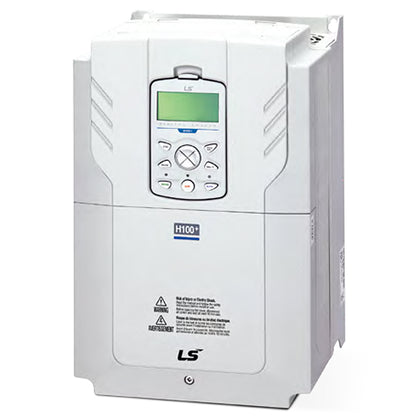

EV-Tronix carries LS Electric’s VFDs (Variable Frequency Drives). LS Electric’s H100+ is superior drive that operates variable speed control of AC motor pumps. Minimal setup and no extra equipment are required to achieve outstanding pump control and operations utilizing H100+ drive features. It is an eco-friendly and energy-saving solution designed for fan and pump systems. Up to 40% of energy savings can be achieved by optimizing speed control. The H100+ includes newly integrated pump control and protection features for reliable operation.

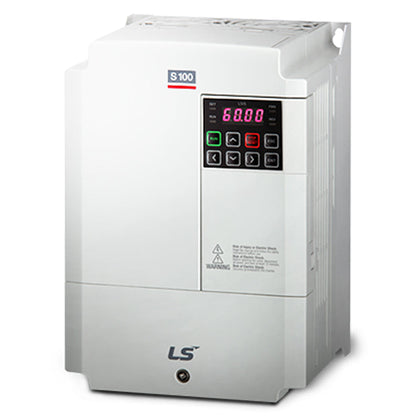

The S100 series is a general-purpose industrial drive with V/F and sensorless vector control available from 1/2 to 100 hp. This drive is dual rated for constant torque and variable torque. The S100 is where strong power meets compact size; powerful sensorless control, and a diverse range of user-friendly functions delivers added value to our customers.
- 3-Phase 525-600 VAC (-15%–+10%)
- 7.5HP
- New pump control functions
- User-friendly key control
- Improved PID performance
- Optimized for HVAC and water treatment
- HMI solutions tailored to your pump & fan application
- *Pictures may not represent exact product
- 3-Phase 525-600 VAC (-15%–+10%)
- 15HP
- New pump control functions
- User-friendly key control
- Improved PID performance
- Optimized for HVAC and water treatment
- HMI solutions tailored to your pump & fan application
- *Pictures may not represent exact product
- 3-Phase 525-600 VAC (-15%–+10%)
- 30HP
- New pump control functions
- User-friendly key control
- Improved PID performance
- Optimized for HVAC and water treatment
- HMI solutions tailored to your pump & fan application
- *Pictures may not represent exact product
- 3-Phase 525-600 VAC (-15%–+10%)
- 60HP
- New pump control functions
- User-friendly key control
- Improved PID performance
- Optimized for HVAC and water treatment
- HMI solutions tailored to your pump & fan application
- *Pictures may not represent exact product
- Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
- Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
- Control Methods: V/f, Slip compensation, Sensorless vector
- Power loss ride through
- Dual rated for constant or variable torque
- Side by side installation
- Heatsink out the back (flange option)
- Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode
- *Pictures may not represent exact product
- Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
- Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
- Control Methods: V/f, Slip compensation, Sensorless vector
- Power loss ride through
- Dual rated for constant or variable torque
- Side by side installation
- Heatsink out the back (flange option)
- Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode
- *Pictures may not represent exact product
