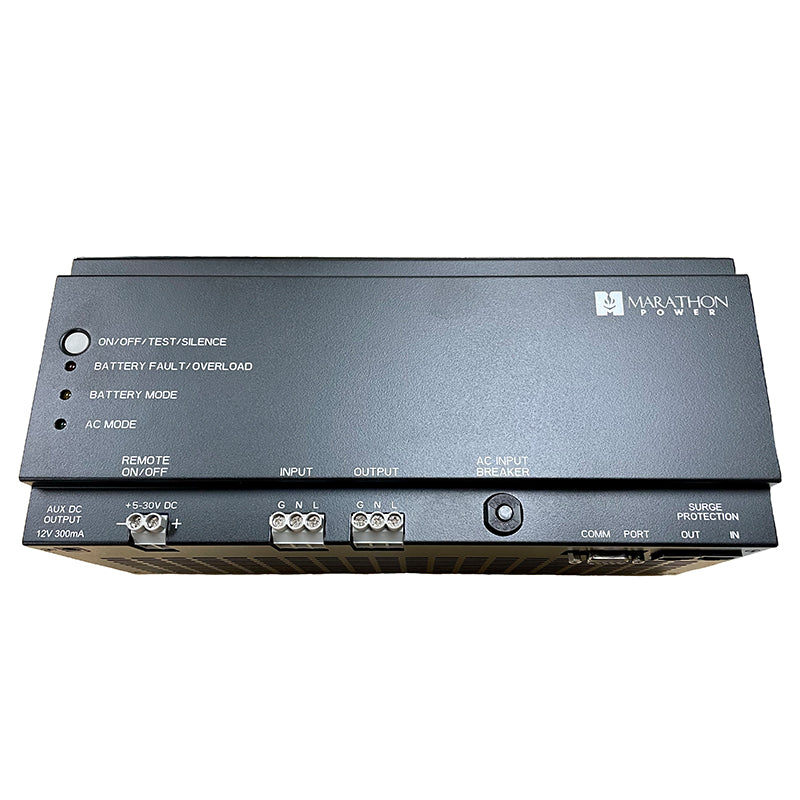

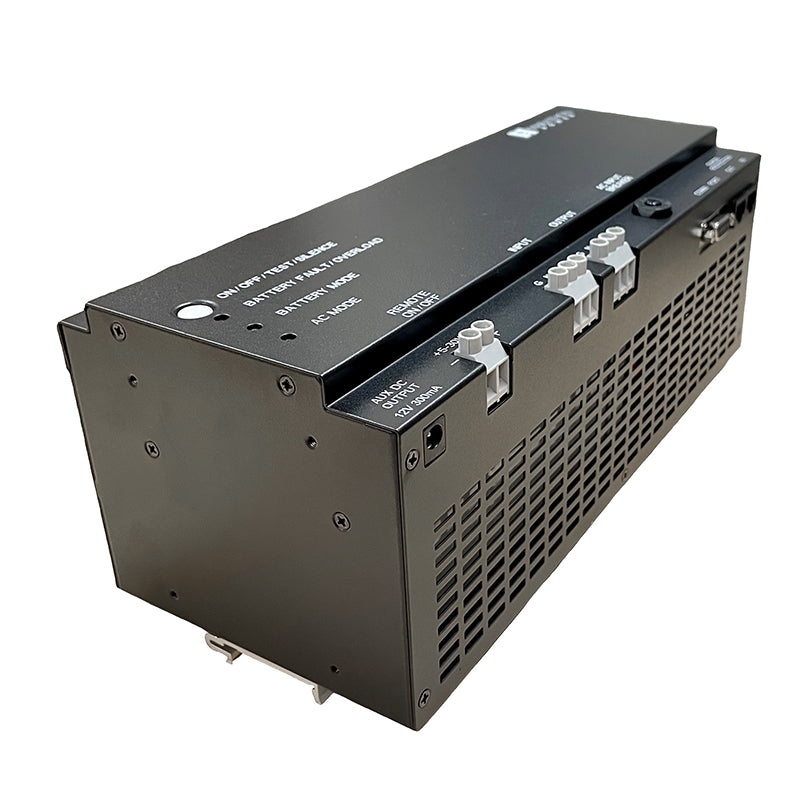

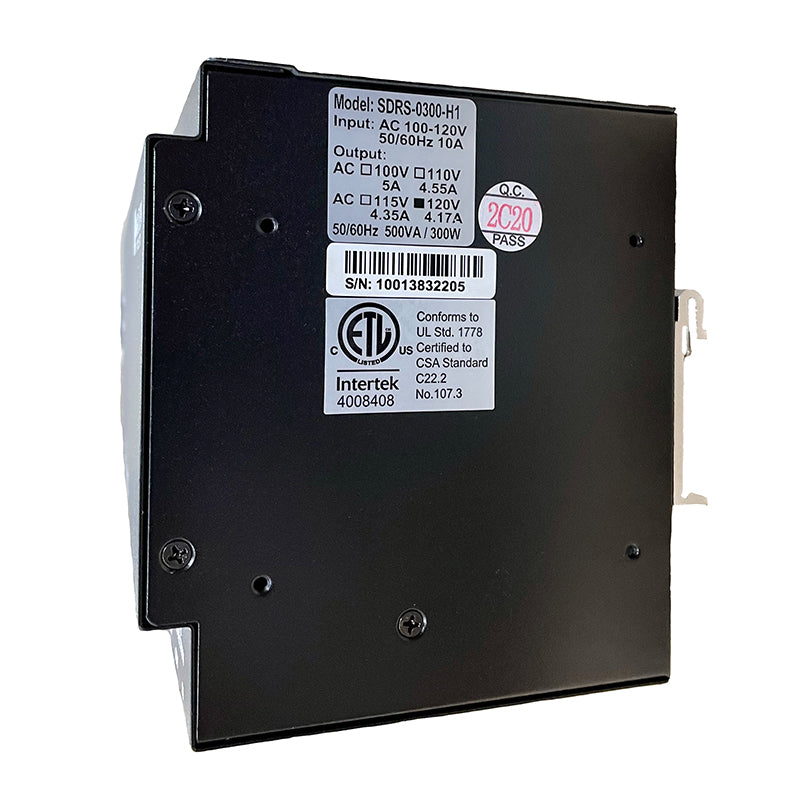

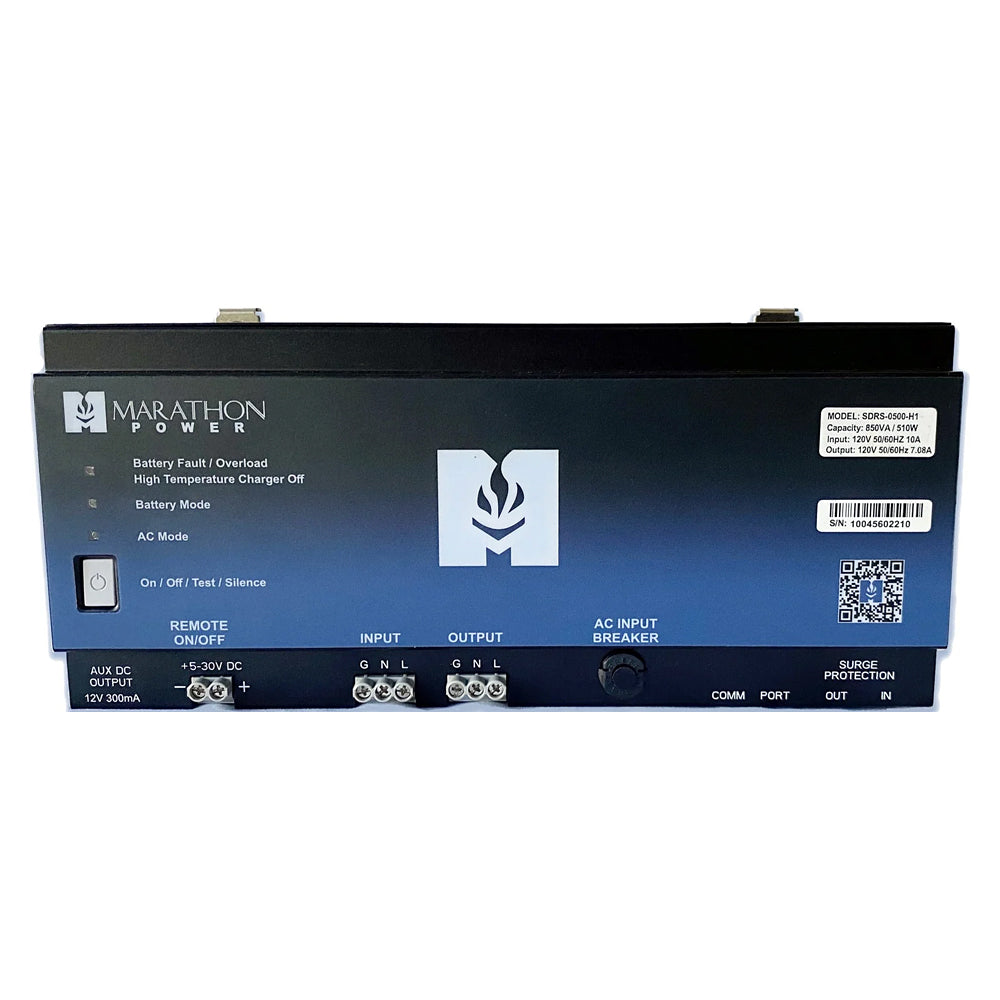

SDRS-0300-H1
- Recognized to UL 1778 standards (120V Models)
- Suitable for UL508
- Compact design in a rugged, industrially-rated enclosure

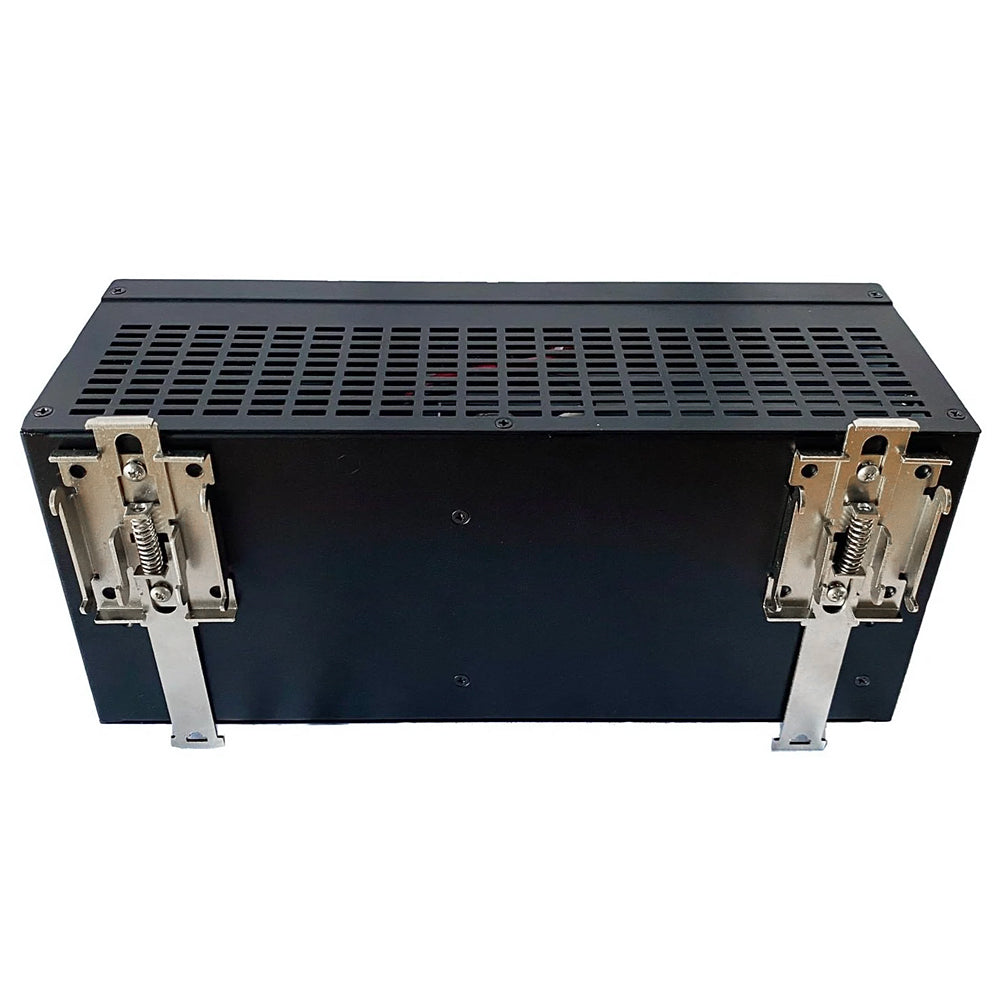

- DIN Rail, shelf or panel mount
- For wide temperature ranges, harsh environment
- IP20-rated hardwire terminals for AC connections
- Various self-diagnostics and alarm output
- Easily removable, hot-swappable battery with integral pull tab
- Overload, overcharge and fault protection in all modes
- No internal fan, no extra cooling required
- LED Status Indicators
- Various communication option
- Optional PCB conformal coating
- Product SKU: SDRS-0300-H1
- Category:Power Solutions
- Contact for high volume orders (25 or more) for special pricing
DIN RAIL UPS 120V
The new Sprint Series DIN Rail AC UPS is an industrial-rated uninterruptible power supply that features a wide operational temperature range in a compact package. Using the latest micro-controller technology, the unit provides mitigation from power quality issues that adversely affect critical loads found in industrial automation, process control and other similar applications.
APPLICATIONS: Industrial Automation, Process Control, PLC’s, Mini Computers, SCADA, OEM Equipment, Robotics, Material Handling.
DIN RAIL UPS 120V
The new Sprint Series DIN Rail AC UPS is an industrial-rated uninterruptible power supply that features a wide operational temperature range in a compact package. Using the latest micro-controller technology, the unit provides mitigation from power quality issues that adversely affect critical loads found in industrial automation, process control and other similar applications.
APPLICATIONS: Industrial Automation, Process Control, PLC’s, Mini Computers, SCADA, OEM Equipment, Robotics, Material Handling.
| Model: | SDRS-0300-H1 |
| Capacity: | 500VA / 300W |
| INPUT | |
| Voltage: | 120V (+10%, -20%) |
| Frequency: | 50Hz ± 10%; 60Hz ± 10% |
| Maximum Input Current: | 10A |
| Inrush Current: | 25A |
| Transient Suppression: | EN61000-4-5, L-N: 1KV, L-G or N-G: 2KV |
| Short Circuit Protection: | Yes |
| Battery String Voltage: | 12VDC |
| OUTPUT | |
| Power: | 300W / 500VA |
| Output Voltage: | 120V / 230V / 240V ± 5% |
| Frequency (On Battery): | 50 / 60HZ ±0.3Hz |
| Output Power Factor: | 0.6 |
| Waveform: | Stepped Square Wave |
| Load Crest Factor: | 3:1 |
| Transfer Time: | 4-6 ms typical |
| Overload Capacity: | UPS automatic power off if overload exceeds 105% of nominal at 20 seconds 120% at 10 seconds 130% at 3 seconds |
| Short Circuit Protection: | UPS output cut off immediately |
| BATTERY | |
| Type: | Sealed, maintenance-free lead acid battery |
| Battery Quantity: | 12V 7.2Ah x 1 |
| Typical Recharge Time: | 8 hours to 90% capacity after full discharge |
