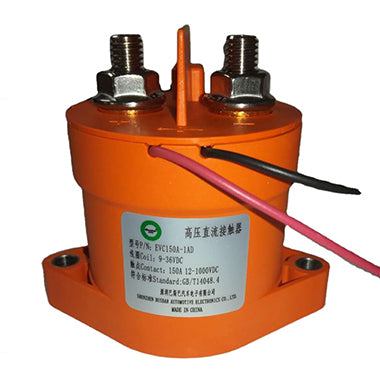

EVC150A-1AD
![EVC150A-1AD]()
-25%
EVC150A-1AD
Available: 238 items in stock
- High-voltage, high-current control capable
With ceramic seal structure, the contact chamber filled with hydrogen mixed reducing gas, combined with magnetic blow-out. Voltage relay can cut off load voltage of 1000VDC. - Compact Design & Low Operating Sound
By using a capsule contact mechanism that is enclosed with hydrogen gas, highcapacity cutoff is possible even with a tiny contact gap. There is little operating sound, which does not change even when large currents are cut off. - Arc space unnecessary
The enclosure box is smaller thanks to an arc-space-free construction from which the arc will not get out. - Safety
Arc will not get out with design of that contacts are enclosed in a sealed capsule. - High contact reliability
The contact part is hermetically sealed with H2 mixed gas, hence the contact resistance remains stable regardless of the ambient conditions.
- Product SKU: EVC150A-1AD
- Category:AC/DC Contactors
- Contact for high volume orders (25 or more) for special pricing
$86.53 CAD
$115.56 CAD
EVC SERIES
DC high voltage EV relay is widely used in electric vehicles, hybrid vehicles, fuel cell vehicles, solar power, wind power, cloud server power supply, battery charging and discharging system, the DC power supply voltage control equipment and heavy machinery.
EVC SERIES
DC high voltage EV relay is widely used in electric vehicles, hybrid vehicles, fuel cell vehicles, solar power, wind power, cloud server power supply, battery charging and discharging system, the DC power supply voltage control equipment and heavy machinery.
| Model: | EVC150A-1AD |
| Maximum Continuous Current: | 150A |
| Maximum Cut Off: |
V: 1000V DC |
| Nominal Switching Capacity (Resistive Load): | 450VDC |
| Overload Opening/Closing Rating: | 750VDC 300A 100 Ops |
| Reverse Direction Cut-Off: | 150A 200VDC 1000 Ops |
| Min. Applicable Load: | 1A 12VDC |
| Min. Switching Capacity(Resistive Load): | 225A 10min，320A 2min.（ ≥ 50mm |
| Short Term Current: | ≤0.5mΩ（6V DC 20A |
| Contact Resistance: | Alloy Cu |
| Contact Arrangement: | 1 A (SPST-NO.) |
| General Auxiliary Contacts Current Range: | 2A 30VDC / 3A 125VAC |
| General Minimum Current Auxiliary Contacts: | 100mA 8VDC |
| Certification: | UL/CUL File #E492594 |
