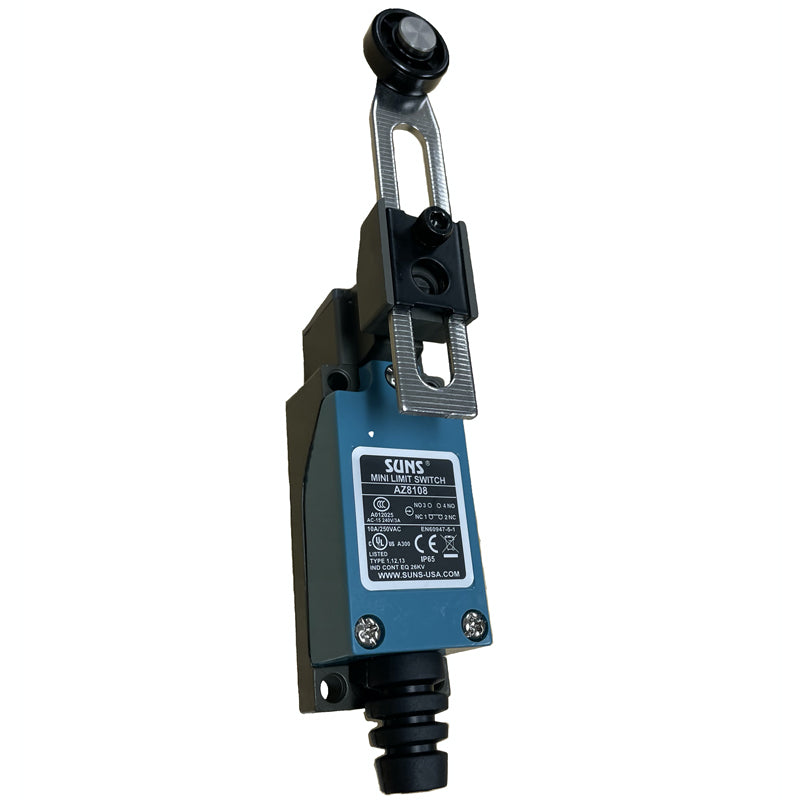

AZ8108
![AZ8108]()
AZ8108
Available: 8 items in stock
- Designed for applications of small mounting space
- Constructed with Metal based and plastic cover
- Mechanical movement and electrical line separates
- Positive opening mechanism
- Improved current carrying capacity to 10A
- Product SKU: AZ-8108
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$50.87 CAD
COMPACT LIMIT SWITCHES: AZ-8 SERIES
SUNS products are safe and reliable products which are widely used in various mechanical devices.
COMPACT LIMIT SWITCHES: AZ-8 SERIES
SUNS products are safe and reliable products which are widely used in various mechanical devices.
| Model: | AZ8108 |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: |
Mechanical: 120ops/min |
| Insulation Resistance: | >100MΩ @ 500V DC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage: | 10A/250VAC (EN60947-5-1) |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts 2000VAC for 1 min between non-current carrying parts |
| Service Life: | Mechanically: 10,000,000 Electrically: 500,000 |
| Operating Temperature: | -20 to +70°C (-4 to 158oF) |
| Humidity: | < 95% RH |
| Degree of Protection: | IP65 |
