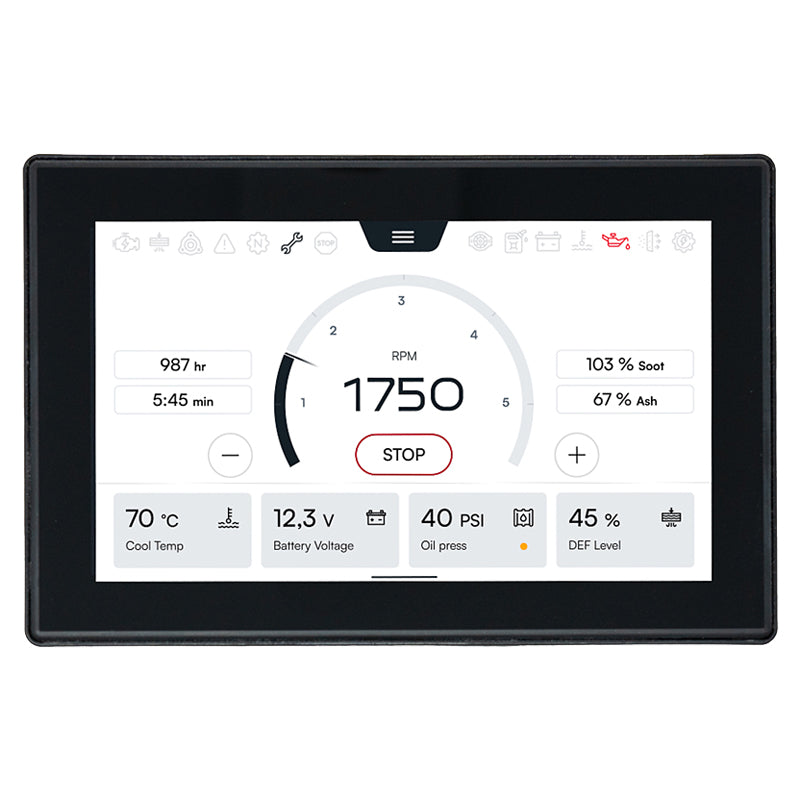

OpenView™ S70 TouchScreen Display - 78700714
- 7-inch full color glove-friendly touchscreen
- Open platform operating system allowing users to utilize a wide array of developer tools
- Essential display features at an unprecendented value
- Powered by the Next Display Platform
- Product SKU: 78700714
- Category:Display Solutions,New Products
- Contact for high volume orders (25 or more) for special pricing
LEGENDARY RELIABILITY AND VERSATILITY AT THE RIGHT PRICE
The OpenView S70 is a full color, edge-to-edge touchscreen display powered by the NEXT DISPLAY PLATFORM.
Designed specifically on an open platform, the OpenView family of displays allows developers to design GUI's with their selected toolset.
Easily viewed in full sunlight and containing a high brightness LCD panel inside its IP65-rated case, the OpenView S70 delivers the all-weather performance Enovation Controls is known for at an unprecedented value.
The OpenView S70 comes standard with a glassfront, glove-friendly touchscreen suited to a wide array of applications.
LEGENDARY RELIABILITY AND VERSATILITY AT THE RIGHT PRICE
The OpenView S70 is a full color, edge-to-edge touchscreen display powered by the NEXT DISPLAY PLATFORM.
Designed specifically on an open platform, the OpenView family of displays allows developers to design GUI's with their selected toolset.
Easily viewed in full sunlight and containing a high brightness LCD panel inside its IP65-rated case, the OpenView S70 delivers the all-weather performance Enovation Controls is known for at an unprecedented value.
The OpenView S70 comes standard with a glassfront, glove-friendly touchscreen suited to a wide array of applications.
| COMPUTING | |
| Computing: | 2x 650Mhz Arm Cortex A7 + GPU (OS/Graphics) |
| Coprocessor: | 1x 200Mhz Arm Cortex M4 (Real time control) |
| Storage: | 4GB eMMC flash for operating systems and applications |
| RAM: | 512MB, 16 Bit |
| Graphics: | Integrated graphics processor |
| ELECTRICAL/ENVIRONMENTAL | |
| Operating Voltage: | 6 – 36 VDC, reverse polarity protected |
| Operating Temperature: | -20°C to 70°C |
| Storage Temperature: | -30°C to 70°C |
| Protection: | IP65 |
| Vibration: | IEC 60068-2-64 |
| EMC/EMI: | ISO 14982:2009, ISO 13766:2018 |
| INTERFACES | |
| CAN: | 1CAN |
| Serial: | USB 2.0, RS-485 |
| WIFI: | 802.11b/g/n |
| Bluetooth: | Bluetooth V4.2 BR/EDR and Bluetooth LE specification |
| Inputs: | 2x Resistive (0-5V), 2x Dig/Ana (0-36v) |
| Outputs: | 2x 500 mA Low-side |
| USB: | USB Type-C with Locking Connector |
| DISPLAY/HMI | |
| Screen: | 7-inch, RGB IPS LCD w/ LED backlight 24bit color |
| Resolution: | 1024 x 600 |
| Contrast Ratio: | 800:1 |
| Touch Panel: | Projected capactitive (PCAP) with glove touch |
| Buzzer: | For alarms and notifications. 80dB, Adjustible Frequency |
 |
||
|
S50/S70 Programming Kit - 78700720 |
