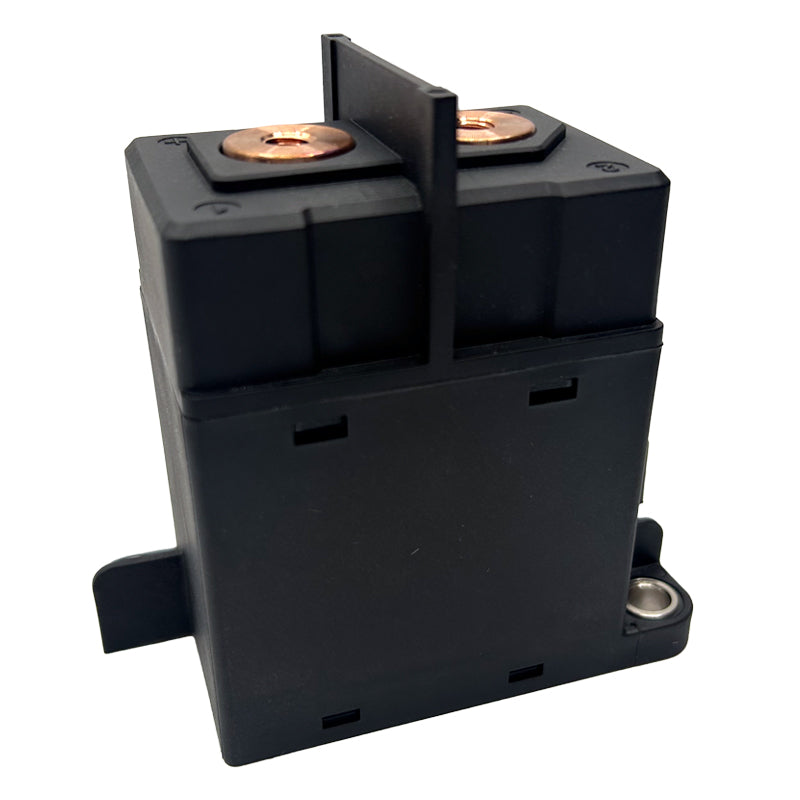

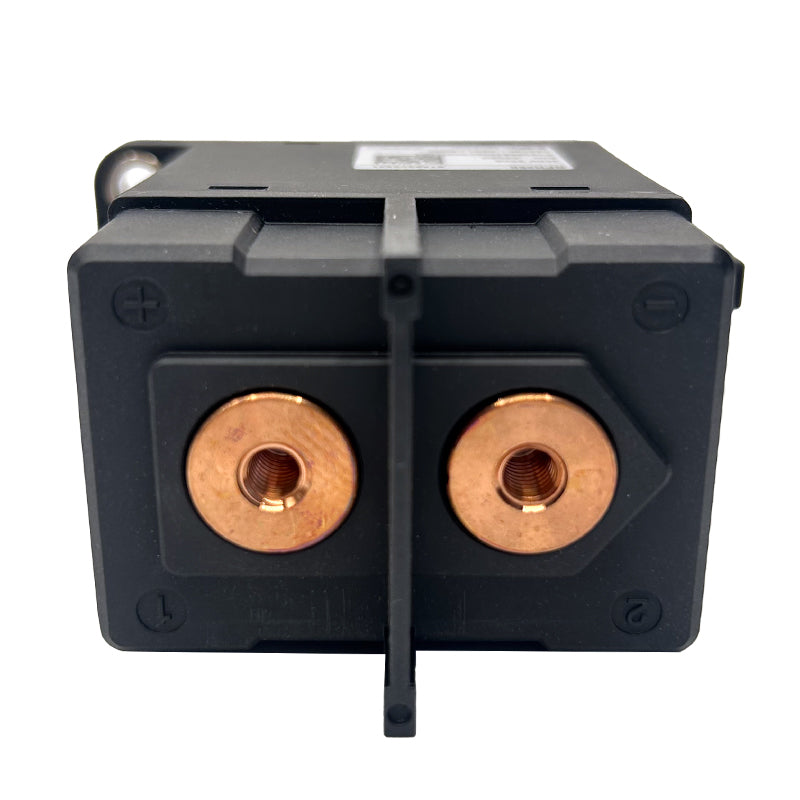

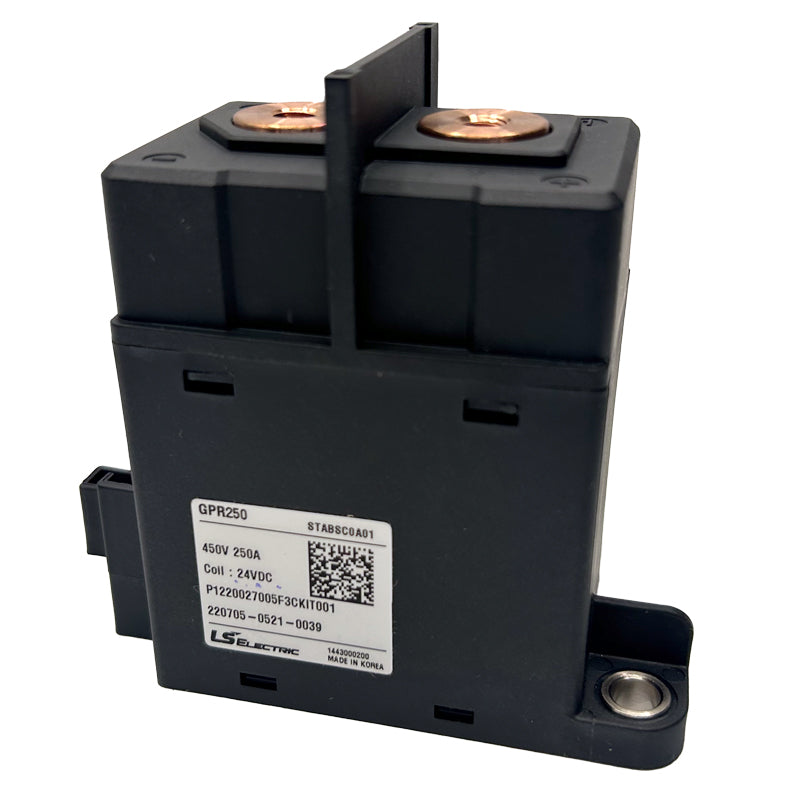

GPR250
![GPR250]()
![GPR250]()
![GPR250]()
GPR250
Available: 5 items in stock
- Compact Design - Achieved a compact size by filling with hydrogen and nitrogen gas to improve breaking performance
- Proven Safety - Withstands a high value of short circuit current
- Superior Reliability - Excellent performance with electrical and mechanical endurance IEC, UL, CCC certified
- Product SKU: 1443000200
- Category:AC/DC Contactors,New Products
- Contact for high volume orders (25 or more) for special pricing
$272.35 CAD
High Voltage DC Relay
LS ELECTRIC high voltage DC Relay serves to supply and disconnect the DC power, and contains hydrogen and nitrogen gas, which is optimized to withstand production and breaking. As a result, it has excellent electrical durability, is compact in size, and produces low noise.
High Voltage DC Relay
LS ELECTRIC high voltage DC Relay serves to supply and disconnect the DC power, and contains hydrogen and nitrogen gas, which is optimized to withstand production and breaking. As a result, it has excellent electrical durability, is compact in size, and produces low noise.
| Model: | GPR250 |
| Number of Poles: | 1 Pole |
| Operating Voltage, Ue: | DC 450V |
| Rated impulse withstand voltage, Uimp: | 4kV |
| Conventional Thermal Current, Ith: | 250A |
| Short Time Withstand Current: | 500A (2Min) 350A (15Min) |
| Durability (Mechanical, 3,600 operations per hour): | 200,000 cycles |
| Durability (Electrical): | 250A, 450VDC, 1,000cycles (at 360cycles/Hr) |
| Voltage drop (Initial): | 0.02V @ 20A |
| Operating time: | Max. 30ms |
| Release time: | Max. 10ms |
| Insulation strength (Initial): | Min. 100MΩ(@500VDC) |
| Temperature range: | -40 ~ 85℃ |
| Humidity: | 5-95% R.H. |
| Size, W × H × D (mm): | 92 × 45 × 87 |
| Weight: | 500g |
| Certification: |  |
