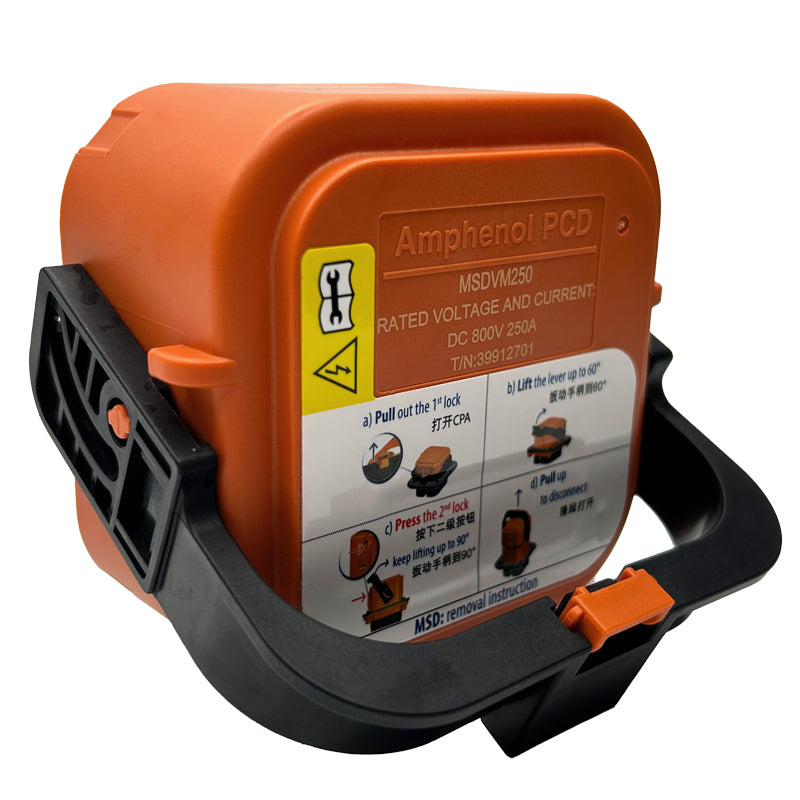

MSDVM250
Categories
Amphenol

MSDVM250

Available: 20 items in stock
  • A two-stage lever provides an HVIL time delay
  • 2 x integrated internal HVIL
  • Unique cooling structure
  • Dual-channel design lowers temperature rise
  • No tools required to unmate
  • Various fuse ratings
  • Receptacle can be front or rear mounted
$218.24 CAD

MSD Connectors

Excel|mate MSD is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuits. This makes MSD connectors a safe solution for the maintenance of electric vehicles. It utilizes a two-stage lever system to open the HVIL circuit prior to separation of HV contacts. All HV conducting surfaces on receptacles are touch proof.

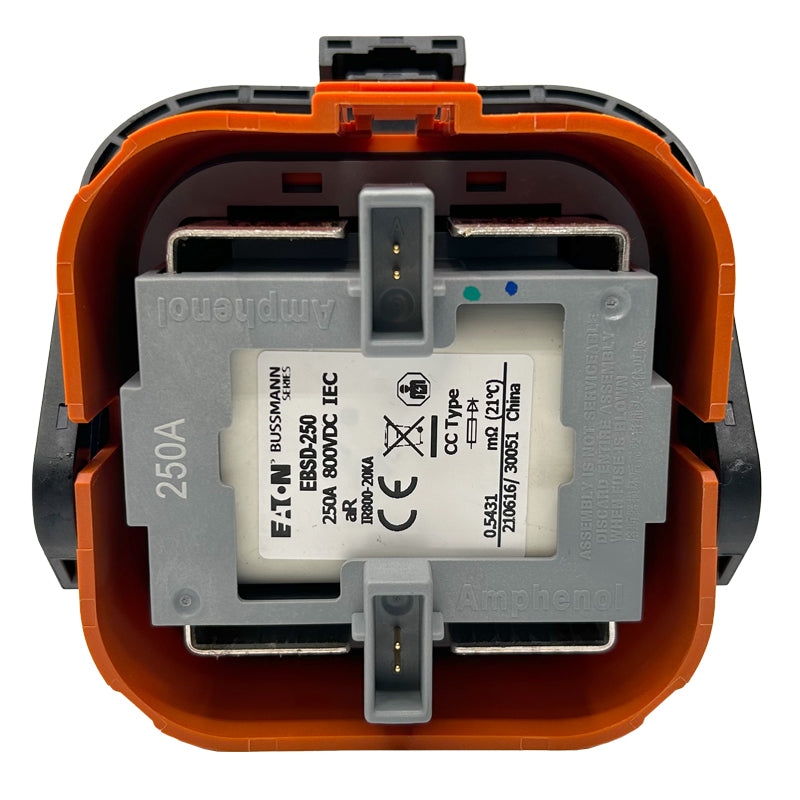

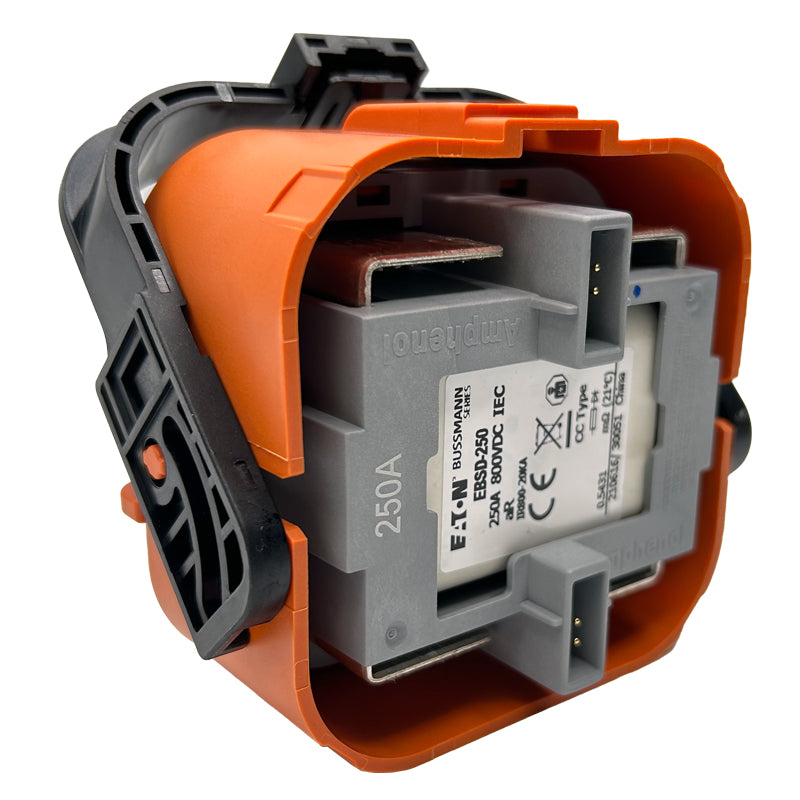

MSD V is an upgraded version of the standard MSD. It provides a rated voltage of 800V and a plug with integrated fuse.The other parameters remain unchanged.

Datasheet (PDF)
Drawing (PDF)

MSD Connectors

Excel|mate MSD is a tool-free solution for disconnecting the internal high voltage battery pack and protecting it from short circuits. This makes MSD connectors a safe solution for the maintenance of electric vehicles. It utilizes a two-stage lever system to open the HVIL circuit prior to separation of HV contacts. All HV conducting surfaces on receptacles are touch proof.

MSD V is an upgraded version of the standard MSD. It provides a rated voltage of 800V and a plug with integrated fuse.The other parameters remain unchanged.

Datasheet (PDF)
Drawing (PDF)

Model: MSDVM250
Rated Voltage: 800V
Rated Current (40°C): 250A
IP-Class Mated: IP69k
Gender:  Male
Part Category: MSD Receptacle
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
