HVSL1000022A1H8
Categories

HVSL1000022A1H8

Available: 36 items in stock

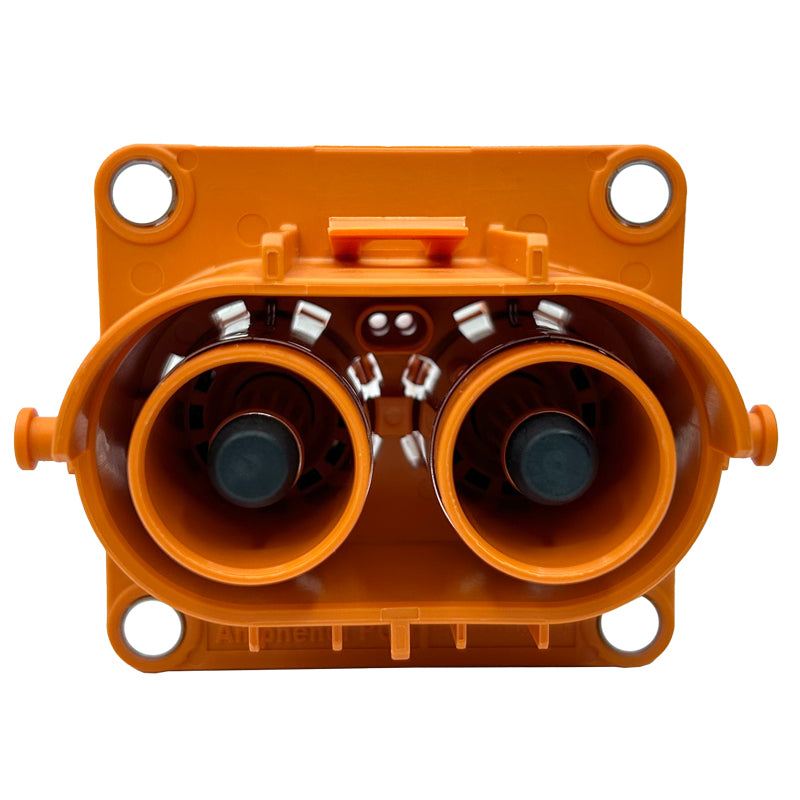

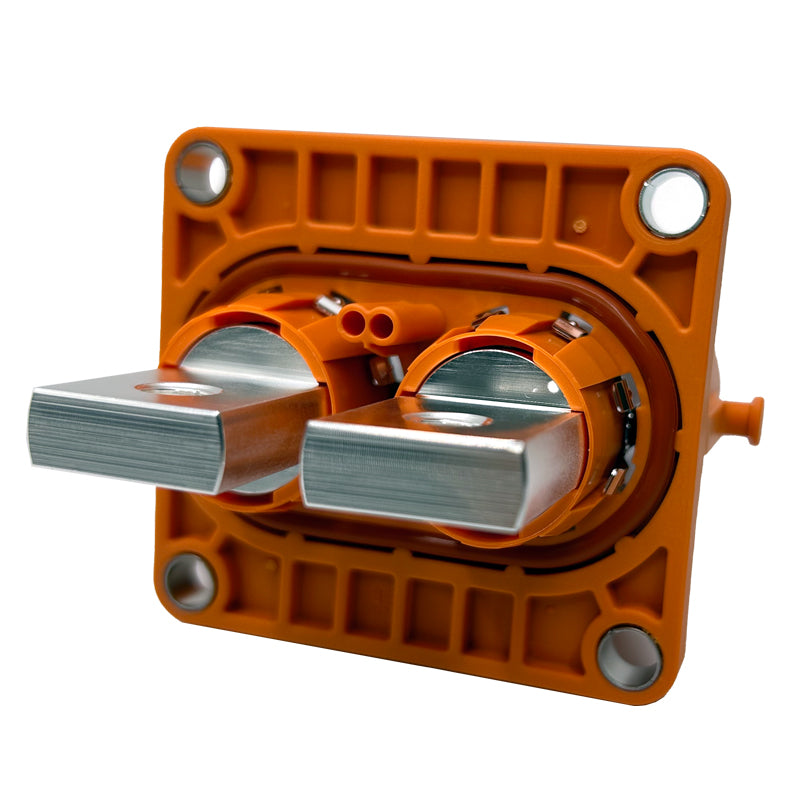

  • HVSL 1000 2 Ways Box Mount Receptacle
  • A-coded
$78.45 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)
Assembly Instructions (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)
Assembly Instructions (PDF)

Model: HVSL1000022A1H8
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 250A
Contact Diameter: 10,0 mm
IP-Class Mated: IP69K
Gender:  Male Receptacle
Termination Style: Screw
Housing:  Plastic
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Connectors
Product Category: Automotive Connectors
Mating Cycles: 50
Shielding: Yes
RoHS Compliant: Yes
