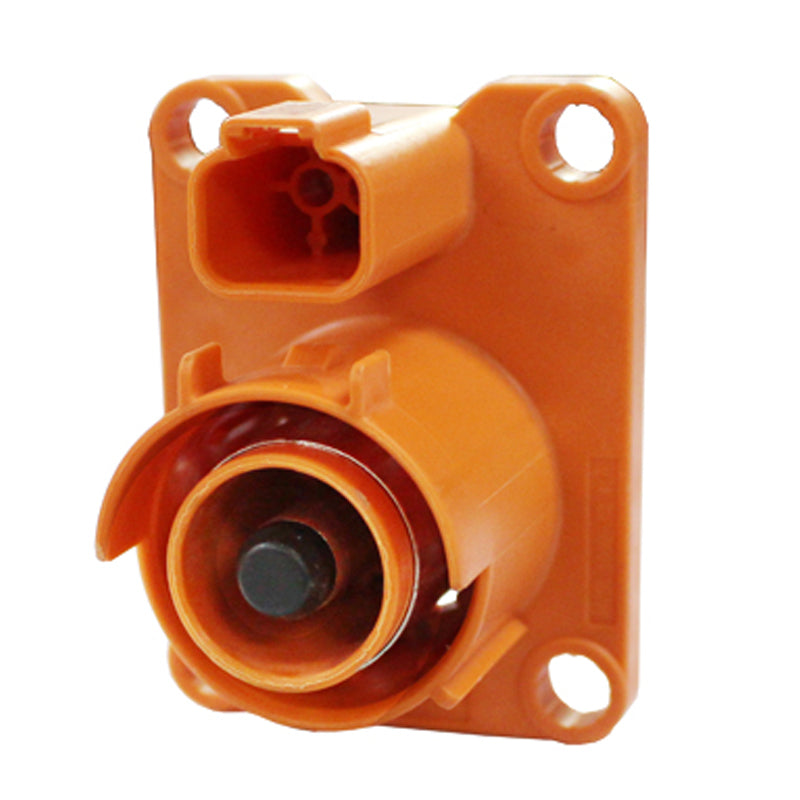

HVSL1000021A1H8

Available: 20 items in stock
  • 10MM HVSL1000 Single Way Box Mount Receptacle
  • 1A-coded
$60.50 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)

Model: HVSL1000021A1H8
Number of Positions (w/o PE)  1
Rated Voltage: 1000V
Rated Current (40°C): 250A
IP-Class Mated: IP69K
Contact Diameter: 10.0 mm
Gender:  Receptacle (RP - Male)
Mounting Style: Panel Mount
Termination Style: Screw
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Mating Cycles: 50
Shielding: Yes
RoHS Compliant: Yes
Unit Weight: 213.845 g
