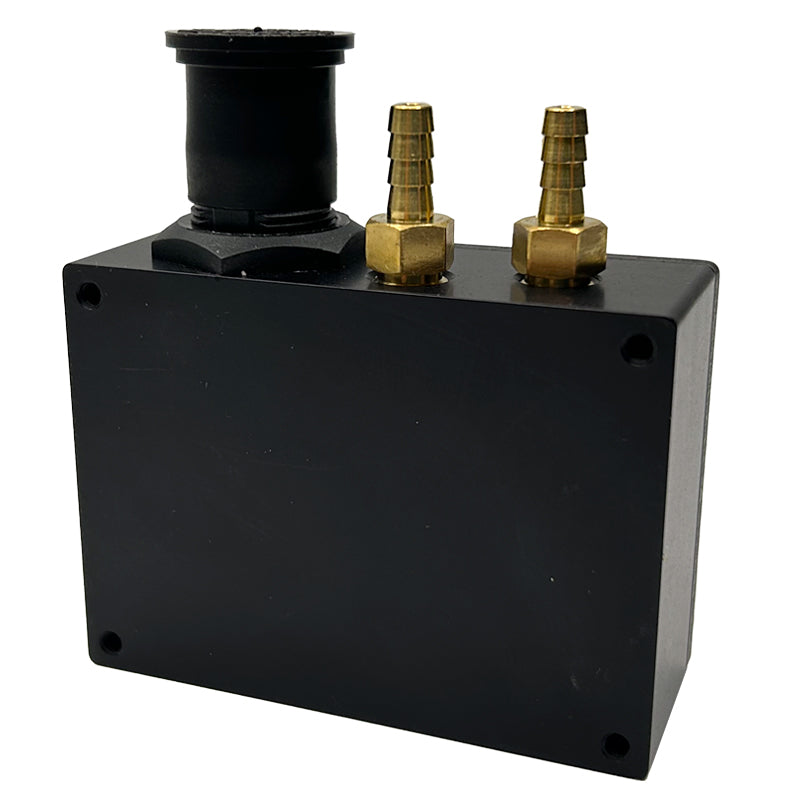

PPT0010DWW2VA-F
- Accuracy is guaranteed over the whole operating temperature range
- Simplifies System Design - No additional signal compensation needed to gain the benefits of a very accurate sensor
- Efficient Data Acquisition - Network up to 89 units
- Works with existing and new systems 0-5V analog and either RS-232 or RS-485 digital output
- Optimizes Output - User-configurable pressure units, sampling, update rate
- Flags Problems - Internal diagnostics set flags, indicates errors
- Product SKU: PPT0010DWW2VA-F
- Category:New Products,Sensors
- Contact for high volume orders (25 or more) for special pricing

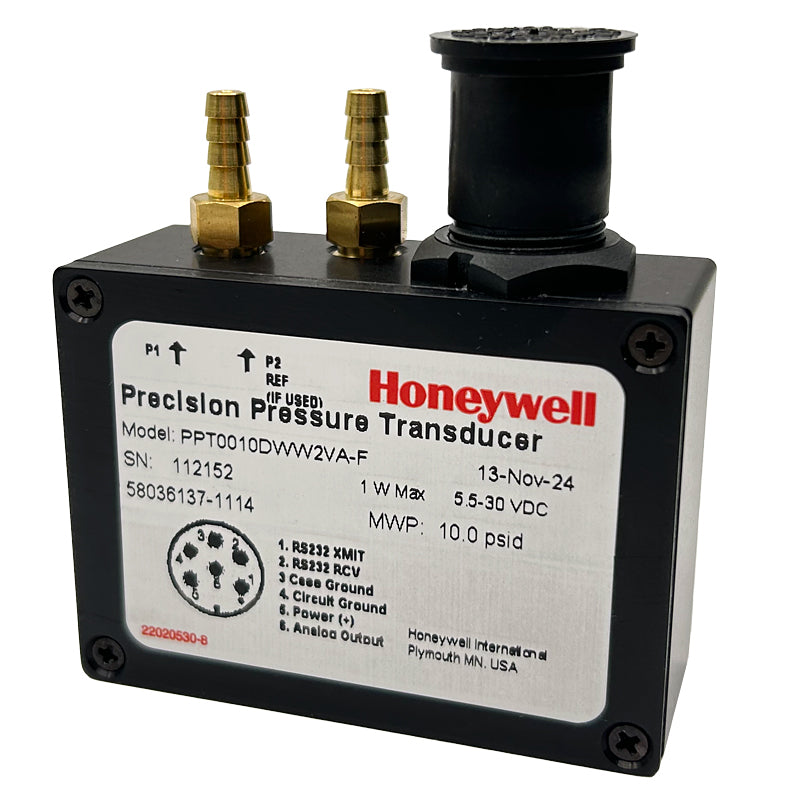

Precision Pressure Transducer
Honeywell’s Precision Pressure Transducer (PPT) offers extraordinary value with high accuracy over a wide temperature range. The PPT combines proven silicon sensor technology with microprocessor-based signal conditioning to provide an extremely smart pressure transducer. Available in a compact, rugged design, the PPT has many software features that support a wide range of applications.
Applications: Secondary Air Data, Altimeters, Engine Testing, Flight Testing, Meteorology, Flow and Pressure Calibrators, Instrumentation and Analytical Equipment, Process Control, Research and Development
Precision Pressure Transducer
Honeywell’s Precision Pressure Transducer (PPT) offers extraordinary value with high accuracy over a wide temperature range. The PPT combines proven silicon sensor technology with microprocessor-based signal conditioning to provide an extremely smart pressure transducer. Available in a compact, rugged design, the PPT has many software features that support a wide range of applications.
Applications: Secondary Air Data, Altimeters, Engine Testing, Flight Testing, Meteorology, Flow and Pressure Calibrators, Instrumentation and Analytical Equipment, Process Control, Research and Development
| Model: | PPT0010DWW2VA-F |
| Temperature Range: | Operating: -40 to 85ºC; Storage: -55 to 90°C |
| Sample Rate: | 8.33 ms to 51.2 min; minimum response delay 17 ms |
| Resolution: | Digital: Up to 0.001% FS, Analog: 1.22 mV steps (12 bits) |
| Long Term Stability: |
0.025% FS per year typical |
| Pressure Units: |
atm, bar, cmwc, ftwc, hPa, inHg, inwc, kg/cm2, KPa, mBar, mmHg, MPa, mwc, psi, user, lcom, pfs |
| Media Compatibility: | Suitable for non-condensing, non-corrosive, and non-combustible gases |
| Weight: | Approx. 5 oz. (142 gm) without fittings |
| Output: | RS-232 Digital with 0-5V Analog, RS-485 Digital with 0-5V Analog |
| Power Requirements: | Supply Voltage: 5.5 to 30 VDC, Operating Current: 35 mA maximum |
| Baud Rate: | User configurable between 1200 and 28800 bits/sec |
| Bus Addressing: | Address up to 89 units |
| Connector: | Plastic: Mini-Con-X(R) Harsh Environment 6-pin circular connector Metal: MIL-C-26482, Shell Size #10, 6-pin, #20 size |
| Mechanical Shock: | 1500G, 0.5 ms half sine; per MIL-STD-883D, M2002.3, Cond. B |
| Thermal Shock: | 24 1-hr cycles, -40 to 85°C |
| Vibration: | 0.5 in or 20G, 20-2000 Hz; per MIL-STD-883D, M2007.2, Cond. A |
| Overpressure: | 3X FS |
| Burst Pressure(: | 3X FS |
| EMC Directive: | Compliant, Metal Connector Model Only |
| RoHS: | Non-Compliant |
