N6SAU702V2-005
Categories
Elobau

N6SAU702V2-005

Available: 25 items in stock
  • Precise and continuous measurement of the inclination of mobile machines
  • Robust design for long service life: IP67 / IP69K protection class (ISO 20653)

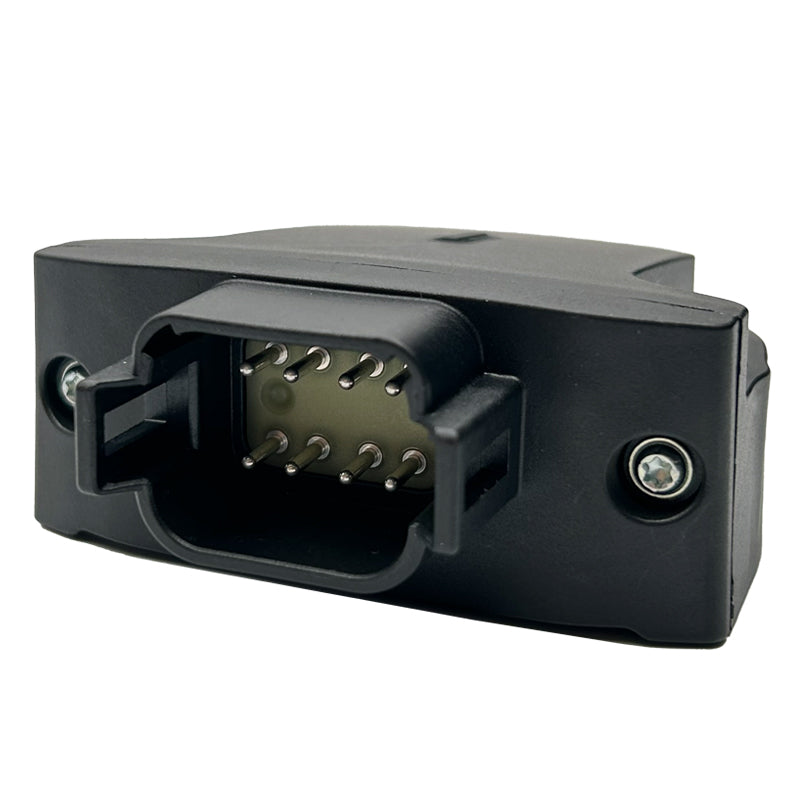

  • For different requirements, various connector variants can be adapted: Deutsch DT04-08PA / 1x M12 5-pin (male) / 2x M12 5-pin (male/female)
  • Easy variant management due to smart modular system
  • Thanks to efficient 2-point-mounting, installation is up to 30 % faster than with existing tilt sensors
  • Familiar elobau sustainability through CO2-neutral production
$412.35 CAD

N6 Static Tilt Sensors (0,5-4,5V ±40 degrees)

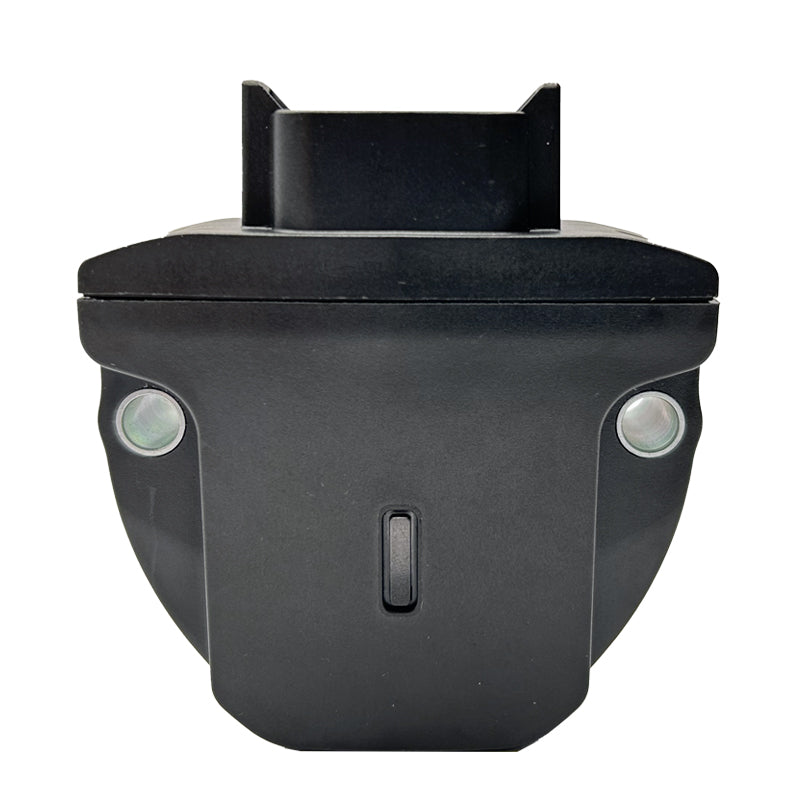

Here comes the new generation of tilt sensors N6 static and N7 dynamic – ideal for use in mobile machinery. Elobau tilt sensors are state of the art, operate with high precision using powerful MEMS technology and offer decisive advantages – for users as well as for vehicle and machine manufacturers.

N6 static and N7 dynamic – developed for even greater safety, reliability, functionality and flexibility. Tilt measurement has never been easier – whether in static or dynamic applications.

Datasheet (PDF)
Drawings (PDF)

N6 Static Tilt Sensors (0,5-4,5V ±40 degrees)

Here comes the new generation of tilt sensors N6 static and N7 dynamic – ideal for use in mobile machinery. Elobau tilt sensors are state of the art, operate with high precision using powerful MEMS technology and offer decisive advantages – for users as well as for vehicle and machine manufacturers.

N6 static and N7 dynamic – developed for even greater safety, reliability, functionality and flexibility. Tilt measurement has never been easier – whether in static or dynamic applications.

Datasheet (PDF)
Drawings (PDF)

Model: N6SAU702V2-005
Operating Voltage: +8 ... +36 V DC
Polarity Reversal Protection:  -36.0 V DC
Short-Circuit Protection: ISO 16750-2
Current Consumption: < 100 mA
Operating Temperature: -40 °C ... +85 °C
Vibration:

DIN EN 60068-2-64
10 Hz - 0,48  [ (m/s2) 2 / Hz ]
150 Hz - 5.77 [ (m/s2) 2 / Hz ]
220 Hz - 7,69 [ (m/s2) 2 / Hz ]
350 Hz - 3,85 [ (m/s2) 2/ Hz ]
note: r.m.s acceleration value = 40,3 m/s2
Output Signal: 0,5-4,5 V
Tolerance Output Signal: max. +100 mV
Output Signal
Centre Position / Zero Position:		 2,5 V
Function Error Output Signal: 5 V
Load Resistance: 1-47 kOhm
Measuring Range:

180° (Z-axis, 1-axis, vertical mounting)
 +90%180° (X-IZ-axis,2-axis, vertical mounting)
90%180° (X-/Y-axis, 2-axis, horizontal mounting)

 measuring range depending on specification
Cut-Off Frequency: adjustable 0 ... 20 Hz
20 Hz (default)
Signal Update Rate: 100 Hz
Start Up Time: < 500 ms
