XDI-RP1-S
- ASME A17.1, ASME A18.1, CSA B44, and CSA B355 compliant
- Two separate mechanical actions to indicate door closure
- No maintenance
- Metal key engagement
- Door closure retention cam to hold door with minimal key-to-interlock play
- Exceeds commercial pull force standard of 675 pounds
- Runway unlock: No runway unlock
- Plug-in wire terminal available
- 24VDC applications - Continous 100% duty cycle rated solenoid, 10W power consumption
- 2.00 in W x 8.50 in H x 1.75 in D
- Available silicon boot for outdoor use
- Product SKU: XDI-RP1-S
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing

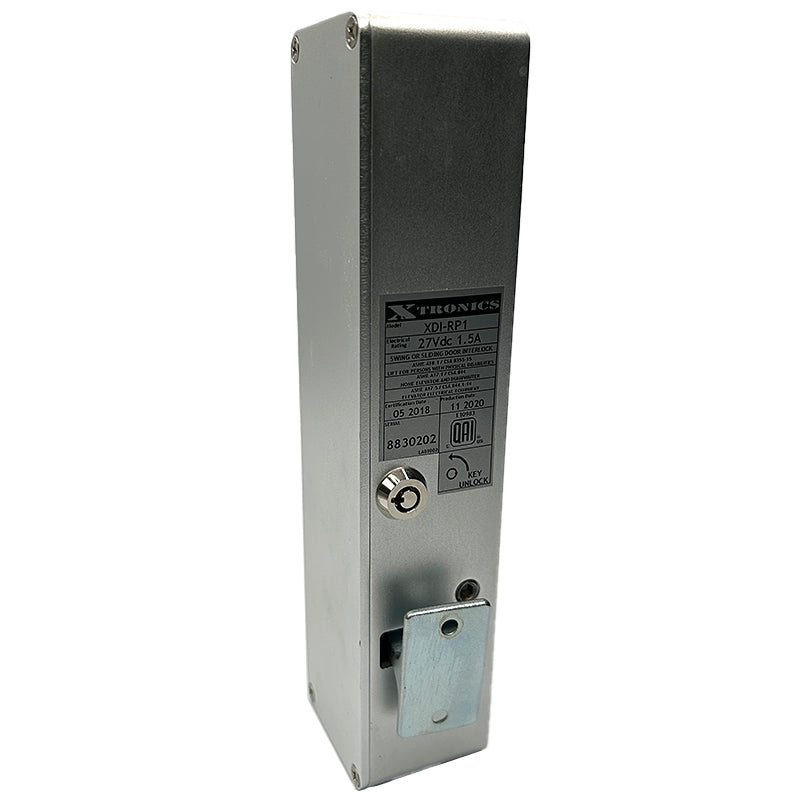

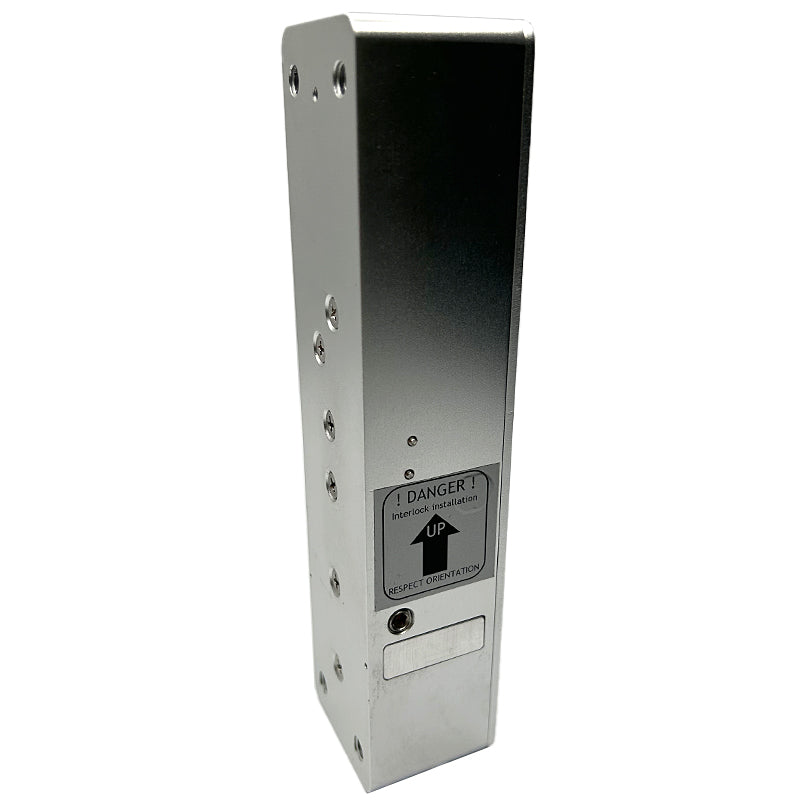

XDI™ Series Door Interlock Switch - Righthand Parallel Wiring (Silver)
The Interlock Reimagined. Peace of mind within reach. With the X Tronics XDI™ Series , improve speed and efficiency while eliminating costs and safety concerns. A combination of performance and safety, the X Tronics XDI™ Series Door Interlock Switch is an electromechanical device designed to provide peace of mind when operating accessibility equipment by securing the landing or elevator door in place, preventing it from being opened in potentially unsafe conditions. It’s industry-leading design adapts to various applications including swing or sliding doors, dumbwaiters, material lifts, lifts for mobility impaired and private residence swing-door elevators.
XDI™ Series Door Interlock Switch - Righthand Parallel Wiring (Silver)
The Interlock Reimagined. Peace of mind within reach. With the X Tronics XDI™ Series , improve speed and efficiency while eliminating costs and safety concerns. A combination of performance and safety, the X Tronics XDI™ Series Door Interlock Switch is an electromechanical device designed to provide peace of mind when operating accessibility equipment by securing the landing or elevator door in place, preventing it from being opened in potentially unsafe conditions. It’s industry-leading design adapts to various applications including swing or sliding doors, dumbwaiters, material lifts, lifts for mobility impaired and private residence swing-door elevators.
| Model: |
XDI-RP1-S |
| Interlock Configuration: |
Right-hand Interlock |
| Wiring: |
Switch in Parallel |
| Runway Unlock: |
No Runway Unlock |
| Service Life: | 10 Years |
| Operating Temperature: | -40°C to 38°C (-40°F TO 100.4°C) Sealing: IP67 Sealed (with Silicon Boot) |
| Storage Temperature: | -40°C to 60°C (-40°C TO 140°F) |
| Approval: | Listing No. E10695  |
| Electrical Rating: | 1.5A MAX, 27VDC MAX |
| Electrical Contacts: | Long Life (1,500,000 Endurance Cycles), Silver (Ag/AgSn02), Positive Openings, Snap-Action, Self-Cleaning |
