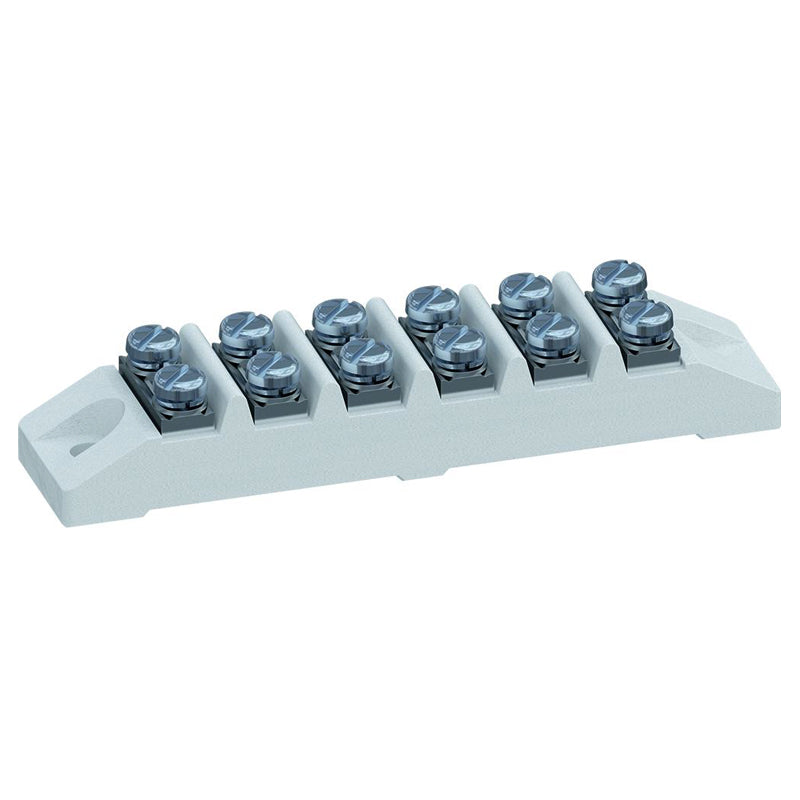

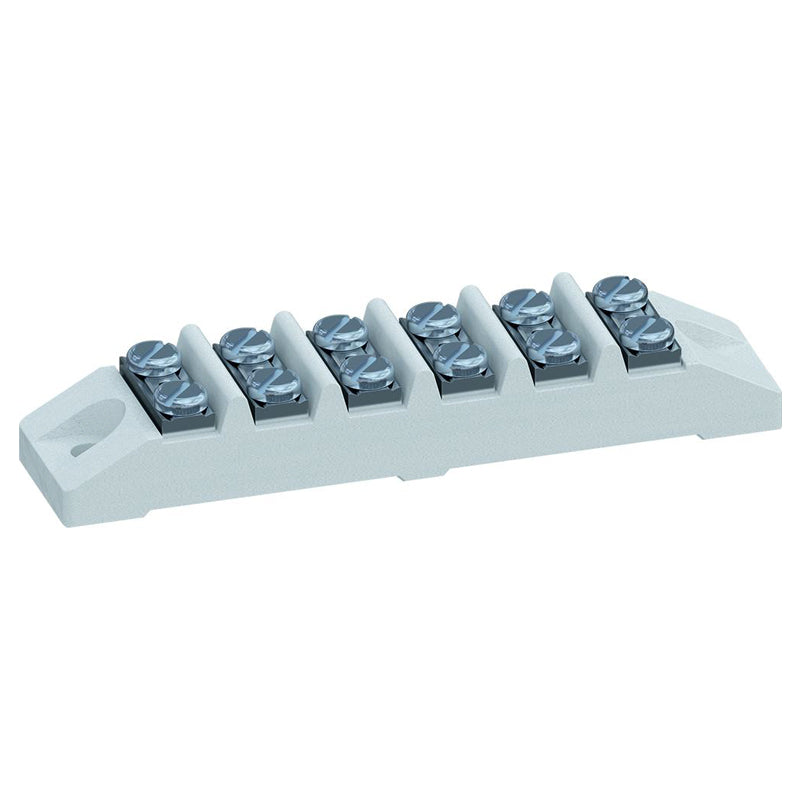

342 / 342-F
342 / 342-F
342
Available: 15 items in stock
- Flat screw terminals
- Medium-duty version with grooved flat terminals, 6-pole
- Product SKU: 342
- Category:Electromechanical Switches,New Products
- Contact for high volume orders (25 or more) for special pricing
$43.69 CAD
342 / 342-F
Flat screw terminals. Medium-duty version with grooved flat terminals, 6-pole.
342 / 342-F
Flat screw terminals. Medium-duty version with grooved flat terminals, 6-pole.
| Model: | 342 Article # 52.636.021 |
| No. of poles: | 6 |
| Clamping Range: | solid / stranded / AWG 0,5 - 4 mm² / 0,5 - 1,5 mm² / 20 - 16 [1][2] |
| Rated Cross Section: | 4 mm² |
| Wire Stripping Length: | 10 mm ± 0,5 mm |
| Rated Insulation Voltage: | 450 V acc. to EN 60998-1 |
| Rated Current: | 32 A |
| Torque: | 1,2 Nm |
| Fixing Holes: | ø 4,8 mm |
| Distance: | 93 mm |
| Base Mounting: | Recommendation: Screw M4 with matching washer; max. torque 1.5 Nm; use of an elastic & insulating substrate. |
| Other Specifications: | Terminal strips must not be strung together without considering the clearance and creepage distances. Rated values apply to use in combination with insulated substrates. |
| Base Material: | Technical ceramics |
| Temperature Range: | -40°C up to 250°C |
