S35

  • 3.5" Color Display
  • Fully Configurable
  • Simple Integration
  • Rugged Tactile Buttons
  • 24-bit Backlit LED's

Enovation Controls

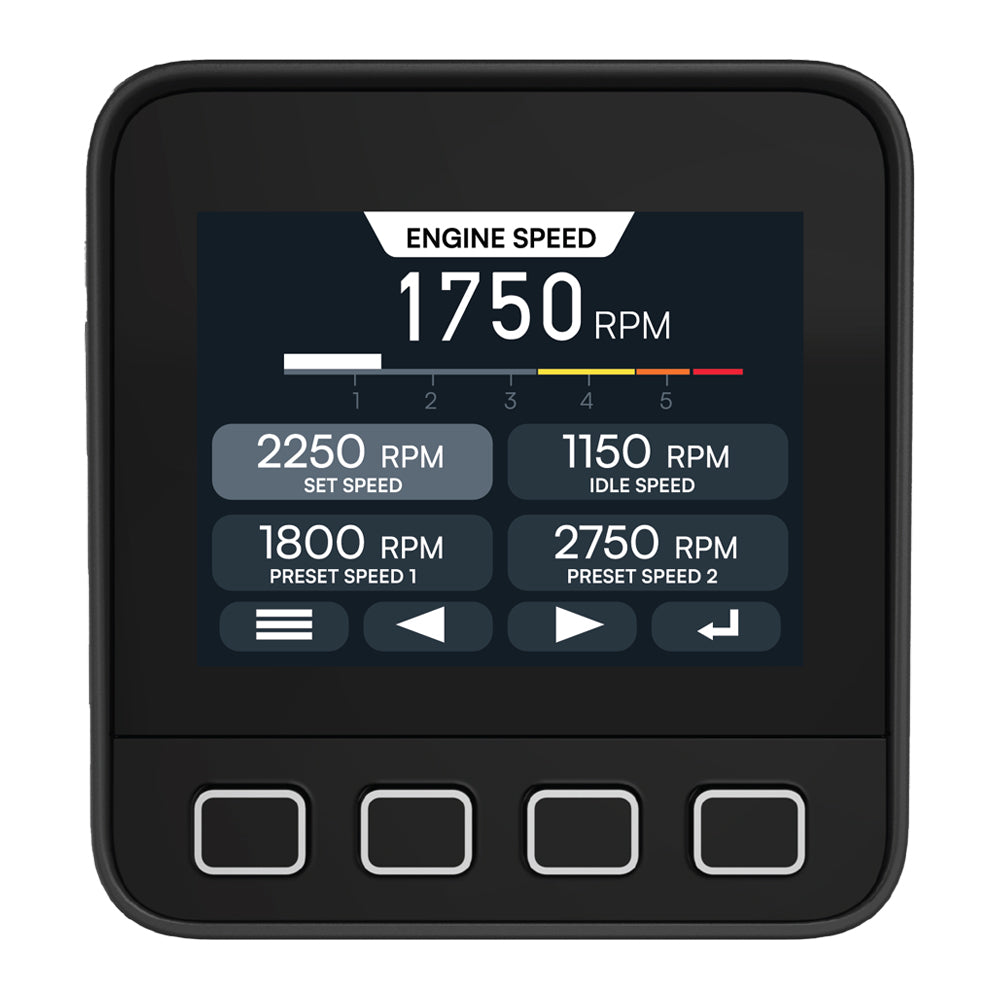

S35 is Rugged, Compact, Configurable and Programmable

An entry-level display and a worthy successor to the legendary PV101. It is designed to provide electronic instrumentation and application monitoring for electronic or mechanical engine, battery, and mains-powered industrial equipment. This display offers robust features with a color LCD, tactile buttons, and outdoor usability. The display is versatile and can provide operator equipment status, fault -conditions, and the ability to monitor configurable parameters. It features support for CAN J1939 & CAN Open in addition to RS485 serial communication to easily integrate into a wide variety of applications.

The display will come out of the box as a fully functional engine monitoring instrument paired with a configurable software application for quick customization of parameters, color schemes, and company logos. Support for multiple languages and data logging is also included.

Datasheet (PDF)

Enovation Controls

S35 is Rugged, Compact, Configurable and Programmable

An entry-level display and a worthy successor to the legendary PV101. It is designed to provide electronic instrumentation and application monitoring for electronic or mechanical engine, battery, and mains-powered industrial equipment. This display offers robust features with a color LCD, tactile buttons, and outdoor usability. The display is versatile and can provide operator equipment status, fault -conditions, and the ability to monitor configurable parameters. It features support for CAN J1939 & CAN Open in addition to RS485 serial communication to easily integrate into a wide variety of applications.

The display will come out of the box as a fully functional engine monitoring instrument paired with a configurable software application for quick customization of parameters, color schemes, and company logos. Support for multiple languages and data logging is also included.

Datasheet (PDF)

COMPUTING
Processor: Arm® Cortex®-M33 microcontroller @ 160 MHz (32-bit)
Operating System: Free RTOS
Storage: 1 MB Flash Memory
RAM: 320 KB SRAM
Graphics: Integrated Graphics Controller
DISPLAY
Screen Size:  3.5-Inch Square, 18-bit color
Resolution: 320 x 240 QVGA
Contract Ratio/Brightness: 800 NITS
Touch Panel: 4 – Tactile Silicon buttons
Surface: Anti-glare finish
INTERFACES
CAN:  (1) CAN 2.0B according to ISO 11898-2, J1939 (Selectable 250k/500k/1Mb baud rate)
USB: (1) USB-C 2.0B full speed host
RS485: (1) HALF DUPLEX
Inputs: (2) Analog (0-5V, 4-20ma, Resisitive) (1) Freq In (30Hz – 10KHz)
Outputs: (2) Digital Low-side open drain 500mA
Real Time Clock: Yes
ELECTRICAL/ENVIRONMENTAL
Operating Voltage: 6 – 36 VDC, Reverse polarity protected
Operating Temperature: -40C to +85C
Storage Temperature: -40C to +85C
Protection: IP67
Vibration: 7.86 Grms (5-2000 Hz), 3-axis random
Shock: ±50G, 3-axis
PHYSICAL
Mounting: 2” SAE HOLE with ring nut
Connectors: (2) 6-pin Deutsch DT06-6 Connectors
COMPLIANCE
EMC/EMI: ISO 13766, ISO 14982
CE: Yes
REACH: Yes
ROHS: Yes
