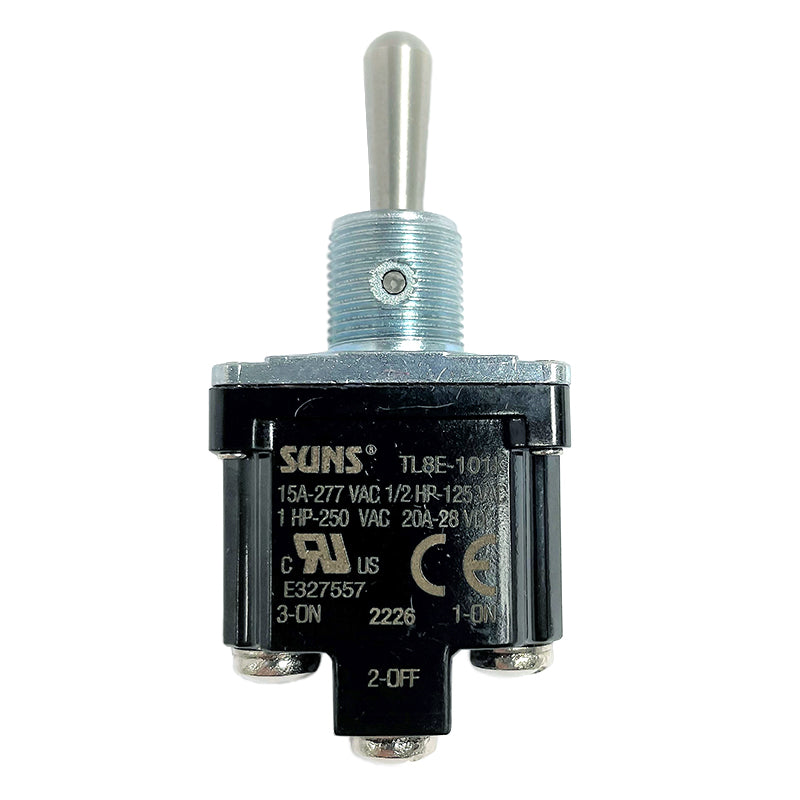

TL8E-101K
![TL8E-101K]()
TL8E-101K
Available: 33 items in stock
- SINGLE POLE ON-OFF-ON
- 1, 2, 3 and 4 Pole Circuitry
- One Hole Mounting for Easy Installation
- Multi-Circuits Offered
- 2 & 3 Position with Maintained and Momentary Action
- Molded-In Terminal Inserts and Numbers
- Captive Cover Screws
- Grounding Screw
- Designed to Comply with MIL-DTL-3950
- Product SKU: TL8E-101K
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$27.53 CAD
TN8/TL8 SEALED TOGGLE SWITCHES
Completely sealed (double sealed) against dust, moisture and other contaminants.
TN8/TL8 SEALED TOGGLE SWITCHES
Completely sealed (double sealed) against dust, moisture and other contaminants.
| Model: | TL8E-101K |
| IP & NEMA Ratings: | IP67 or IP69K |
| Service Life: |
Mechanically: 1,000,000 Operations |
| Operating Temperature: | -40 ~ +71°C (-40 ~ +160°F) |
| Electrical Rating: | 20A 125VAC / 15A 250VAC(GP) 1.5HP 125/ 250VAC 20A 28VDC |
