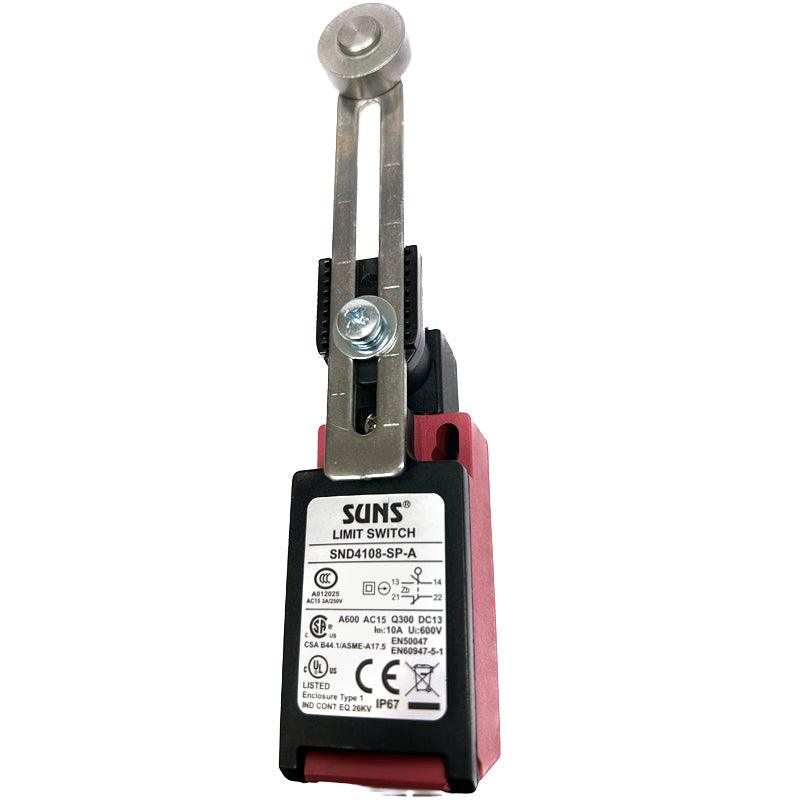

SND4108-SP-A
![SND4108-SP-A]()
GLOBAL STYLE SAFETY LIMIT SWITCHES
GLOBAL STYLE SAFETY LIMIT SWITCHES
SND4108-SP-A
Available: 10 items in stock
- Glass fiber reinforced plastic body
- Easily interchangeable contact block
- Galvanically separated contacts
- Screw terminals with self-lifting clamps for easy wiring
- Positive Opening of NC contacts
- 4 x 90o actuator positions
- Cable entry available: M20, PG13.5 and 1/2"NPT
- Grounding Screw
- Conform to EN 50047 standard
- Product SKU: SND4108-SP-A
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$84.04 CAD
GLOBAL STYLE SAFETY LIMIT SWITCHES
SND4 SERIES (SINGLE CONDUIT ENTRY)
SUNS products are safe and reliable products which are widely used in various mechanical devices.
GLOBAL STYLE SAFETY LIMIT SWITCHES
SND4 SERIES (SINGLE CONDUIT ENTRY)
SUNS products are safe and reliable products which are widely used in various mechanical devices.
| Model: | SND4108-SP-A |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: |
Mechanical: 120ops/min |
| Insulation Resistance: | >100MΩ @ 500V DC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage: | 10A/600V AC (EN60947-5-1) |
| Electrical Rating: | AC15 A600 / DC13 Q300 |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals 2500VAC for 1 min between each terminal and ground |
| Service Life: | Mechanically: 10,000,000 Electrically: 500,000 |
| Operating Temperature: | 25~80℃ (-13~176°F) without formation of ice |
| Humidity: | < 95% RH |
| Weight: | 50-100g |
| Degree of Protection: | IP67 |
