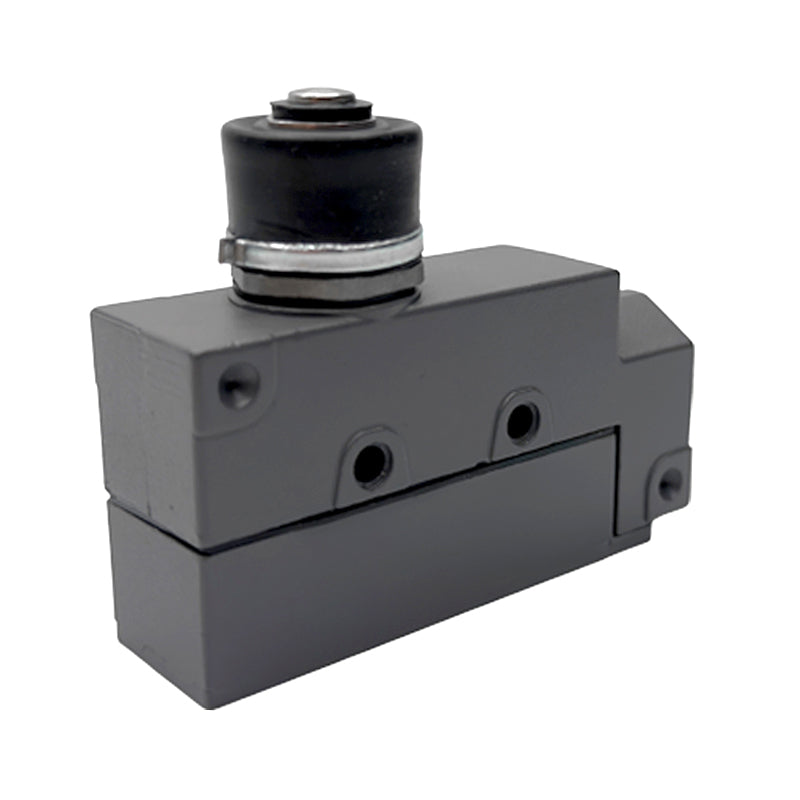

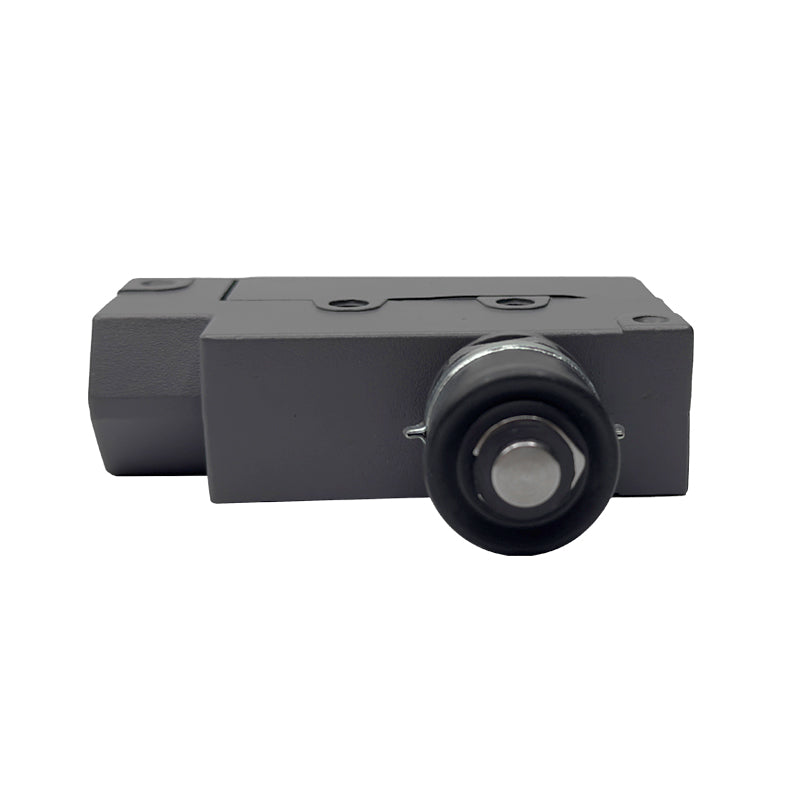

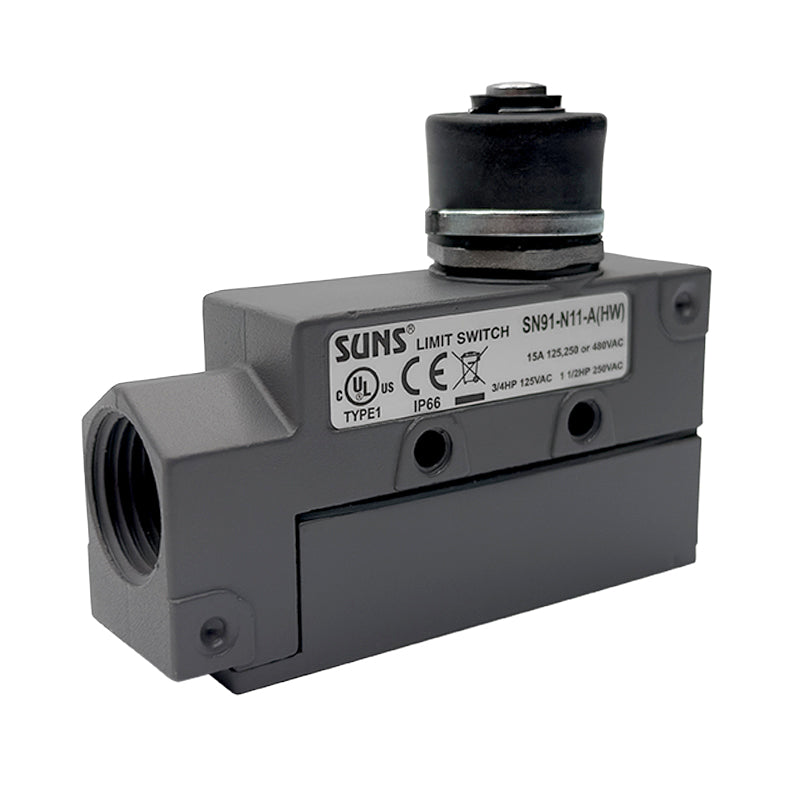

SN91-N11-A(HW)
Categories

SN91-N11-A(HW)

Available: 2 items in stock
  • Compact and rugged Aluminum housing
  • Large wiring enclosure
  • High precision switch
  • High repeatability of switching point
  • Long service life
  • Large breaking power
$98.52 CAD

COMPACT LIMIT SWITCHES

SUNS products are safe and reliable products which are widely used in various mechanical devices.

Datasheet (PDF)

COMPACT LIMIT SWITCHES

SUNS products are safe and reliable products which are widely used in various mechanical devices.

Datasheet (PDF)

Model: SN91-N11-A(HW)
Operating Speed: 0.02mm-0.5m/sec
Operating Frequency:

Mechanical: 120ops/min
Electrical: 20ops/min

Insulation Resistance: >100MΩ @ 500V DC
Contact Resistance: <25mΩ (initial value)
Rated Voltage/Current:

15A,125/250/480VAC;
0.75HP/125VAC or 1.5HP/250VAC

Dielectric Strength: 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts
Service Life: Mechanically 10,000,000 (operations)
Electrically 500,000 (operations)
Operating Temperature: -25~+85 °(-13~+176°F)
Humidity: < 95 %RH
Degree of Protection: IP65/IP60
