SN6104-SP-A(AB)

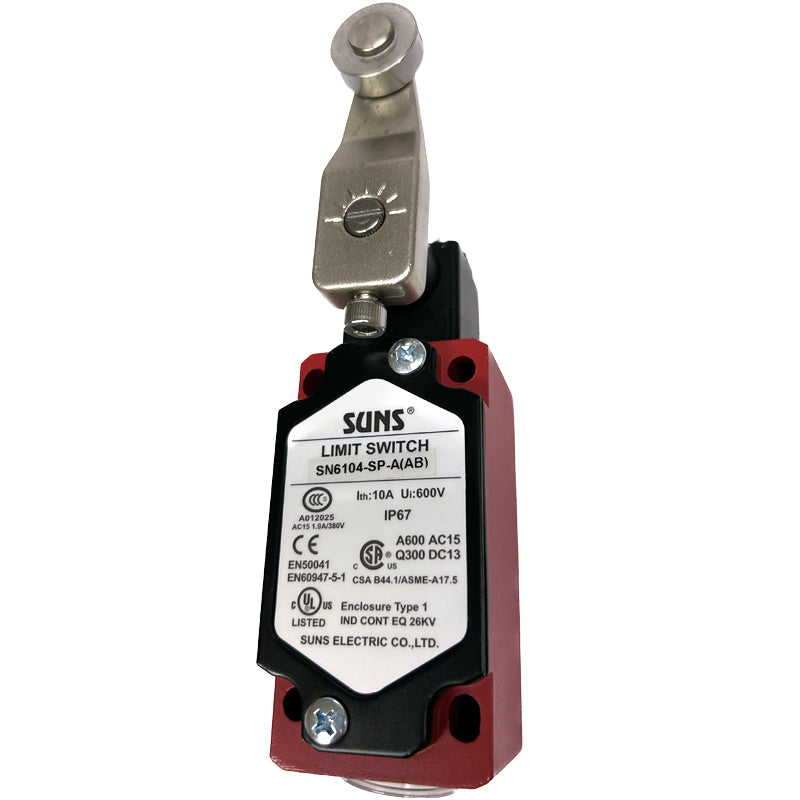

![SN6104-SP-A(AB)]()
GLOBAL STYLE SAFETY LIMIT SWITCHES
GLOBAL STYLE SAFETY LIMIT SWITCHES
SN6104-SP-A(AB)
Available: 11 items in stock
- Zinc die cast body
- Increased wiring space
- Earth grounding surface on same level as switching
- Easily interchangeable contact block
- Fine adjustment of switching point via adjusting screw
- Galvanically separated contacts
- Screw terminals with self-lifting clamps for easy wiring
- Positive Opening of NC contacts
- 4 x 90o actuator positions
- Positive Opening of NC contacts
- 4 x 90o actuator positions
- Cable entry available: M20, PG13.5 and 1/2" NPT
- Conform to EN 50041 standard
- Product SKU: SN6104-SP-A
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$165.17 CAD
GLOBAL STYLE SAFETY LIMIT SWITCHES
SN6 SERIES (SINGLE CONDUIT ENTRY)
For almost two decades SUNS has been delivering stand-alone solutions that offer value and field tested reliability to customers.
GLOBAL STYLE SAFETY LIMIT SWITCHES
SN6 SERIES (SINGLE CONDUIT ENTRY)
For almost two decades SUNS has been delivering stand-alone solutions that offer value and field tested reliability to customers.
| Model: | SN6104-SP-A(AB) |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: |
Mechanical: 120ops/min |
| Insulation Resistance: | >100MΩ @ 500V DC |
| Contact Resistance: | <25mΩ |
| Rated Current/Voltage: | 10A/600V AC (EN60947-5-1) |
| Electrical Rating: | AC15 A600 / DC13 Q300 |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals 2500VAC for 1 min between each terminal and ground |
| Service Life: | Mechanically: 10,000,000 Electrically: 500,000 |
| Operating Temperature: | 25~80℃ (-13~176°F) without formation of ice |
| Humidity: | < 95% RH |
| Weight: | 400-480g for metal body |
| Degree of Protection: | IP67 |
