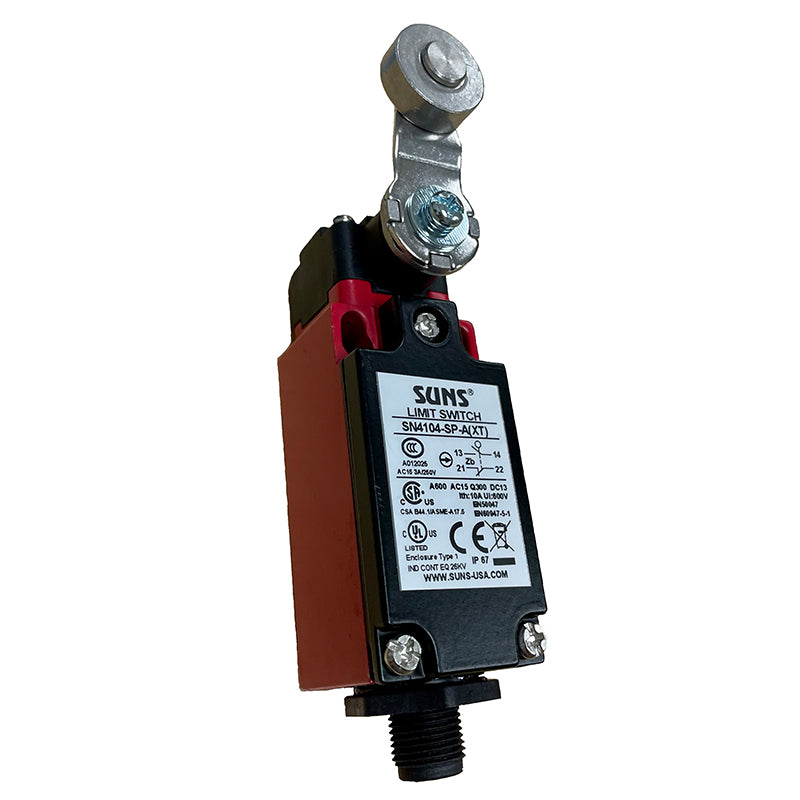

SN4104-SP-A(XT) with M12 4pin Connector
![SN4104-SP-A(XT) with M12 4pin Connector]()
SN4104-SP-A(XT) with M12 4pin Connector
Available: 12 items in stock
- M12 4pin Connector included
- Zn/Al body and steel lid
- Global general standard
- Mechanical movement and electrical line separates
- Positive Opening Mechanism
- 4×90° actuator position, omni-directional
- Conform to EN 50047 standard
- Contact form zb
- Cable entry available: M 20,PG 13.5 and 1/2"PT
- Product SKU: SN4104-SP-A(XT)
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$108.78 CAD
SUNS INTERNATIONAL SN4104-SP-A FIXED ROTARY LEVER SAFTEY LIMIT SWITCH
For almost two decades SUNS has been delivering stand-alone solutions that offer value and field tested reliability to customers.
SUNS INTERNATIONAL SN4104-SP-A FIXED ROTARY LEVER SAFTEY LIMIT SWITCH
For almost two decades SUNS has been delivering stand-alone solutions that offer value and field tested reliability to customers.
| Model: | SN4104-SP-A(XT) |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: |
Mechanical: 120ops/min |
| Insulation Resistance: | >100MΩ @ 500V DC |
| Rated Current/Voltage: | 10A/600V AC (EN60947-5-1) |
| Electrical Rating: | UL/cUL Listed (E216958) for AC15 A600/ DC13 Q300 |
| Service Life: | Mechanically: 10,000,000 Electrically: 500,000 |
| Operating Temperature: | 25~80℃ (-13~176°F) without formation of ice |
| Degree of Protection: | IP67 |
