SN3204-SP-C(H)

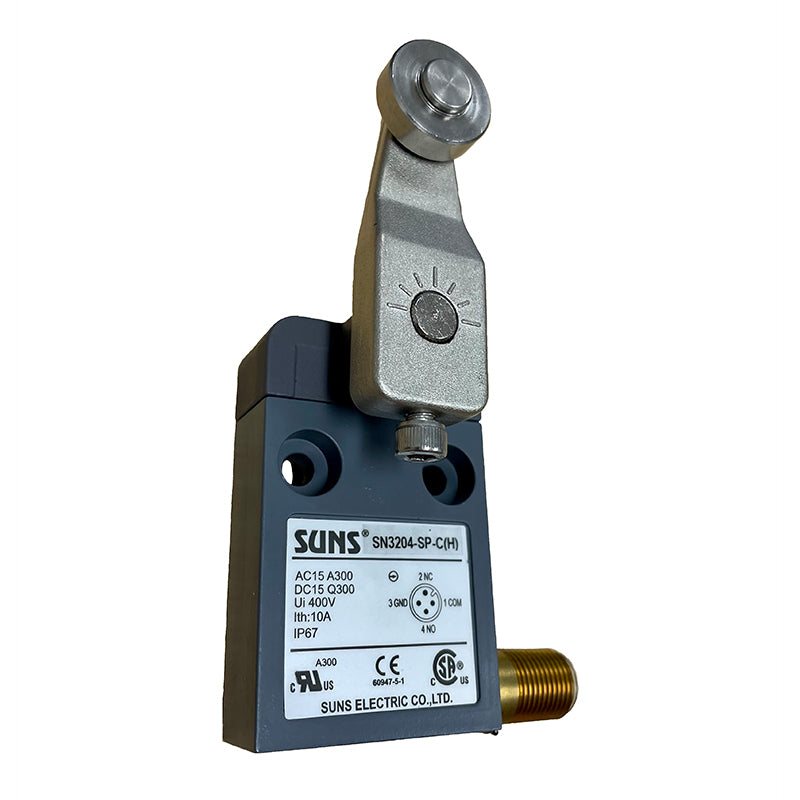

![SN3204-SP-C(H)]()
COMPACT LIMIT SWITCHES: (Metal Body, IP67 Water-Proof)
COMPACT LIMIT SWITCHES: (Metal Body, IP67 Water-Proof)
SN3204-SP-C(H)
Available: 3 items in stock
- Easy to install
- Global general standard
- M12 aviation connector available
- Side rotary with lever
- M12 connector side exit 4 pin
- Product SKU: SN3204-SP-C
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$134.60 CAD
COMPACT LIMIT SWITCHES: (Metal Body, IP67 Water-Proof)
SN32 SERIES (25mm)
SUNS products are safe and reliable products which are widely used in various mechanical devices.
COMPACT LIMIT SWITCHES: (Metal Body, IP67 Water-Proof)
SN32 SERIES (25mm)
SUNS products are safe and reliable products which are widely used in various mechanical devices.
| Model: | SN3204-SP-C |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: |
Mechanical: 120ops/min |
| Insulation Resistance: | >100MΩ @ 500V DC |
| Contact Resistance: | <25mΩ |
| Rated Voltage: | 300V AC (EN60947-5-1) |
| Rated Thermal Current: | 10A |
| Electrical Rating: | AC15 A300 DC13 Q300 |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts |
| Service Life: | Mechanically 1 x107 (operations) Electrically 5 x105 (operations) |
| Operating Temperature: | -25~+85oC without formation of ice |
| Humidity: | < 95% |
| Cable: | 5 core, 0.75mm2 |
| Degree of Protection: | IP67 |
