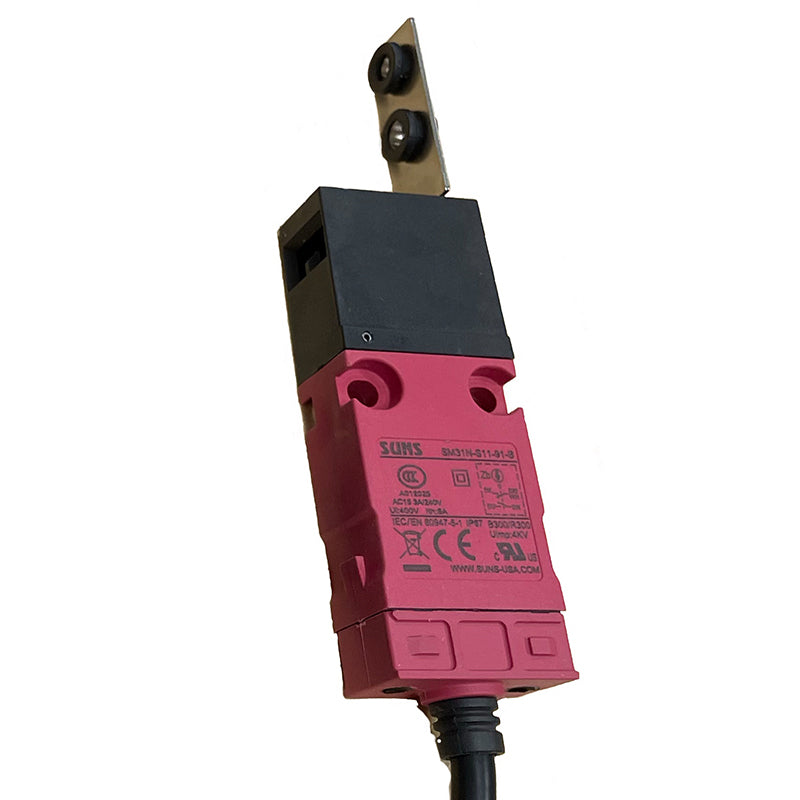

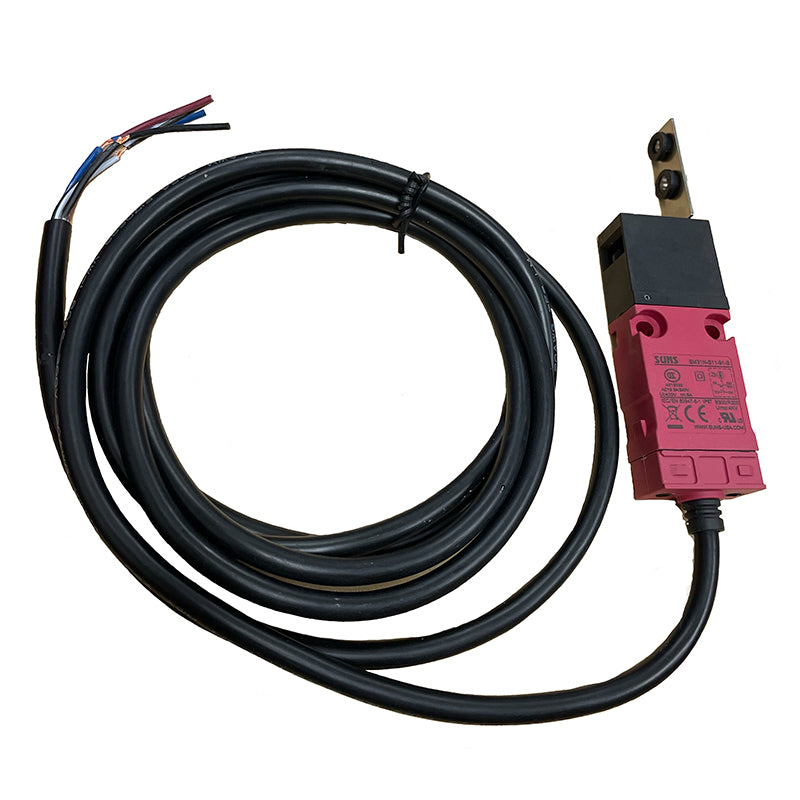

SM31N-S11-91-B2 with SM3-K1 Key
![SM31N-S11-91-B2 with SM3-K1 Key]()
![SM31N-S11-91-B2 with SM3-K1 Key]()
-25%
SM31N-S11-91-B2 with SM3-K1 Key
Available: 250 items in stock
- Galvanically separated contacts
- Screw terminals with self-lifting clamps for easy wiring
- Positive Opening of NC contacts
- 4 x 90℃ actuator positions
- Horizontal or Vertical Operation
- Product SKU: SM31N-S11-91-B2
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$56.00 CAD
$75.62 CAD
COMPACT SAFETY INTERLOCK SWITCHES (Modular Design, Plastic Body, IP67)
SUNS products are safe and reliable products which are widely used in various mechanical devices.
COMPACT SAFETY INTERLOCK SWITCHES (Modular Design, Plastic Body, IP67)
SUNS products are safe and reliable products which are widely used in various mechanical devices.
| Model: | SM31N-S11-91-B2 SM3-K1 |
| Operating Frequency: |
Mechanical: 120ops/min |
| Insulation Resistance: | >100MW@500V DC |
| Contact Resistance: | <25mW (initial value) |
| Rated Voltage: | 300V AC (EN60947-5-1) |
| Rated Thermal Current: | 5A |
| Electrical Rating: | AC15 B300 DC13 R300 |
| Dielectric Strength: | 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts |
| Operating Temperature: | -25~+85oC without formation of ice |
| Humidity: | < 95% RH |
| Degree of Protection: | IP67 |
