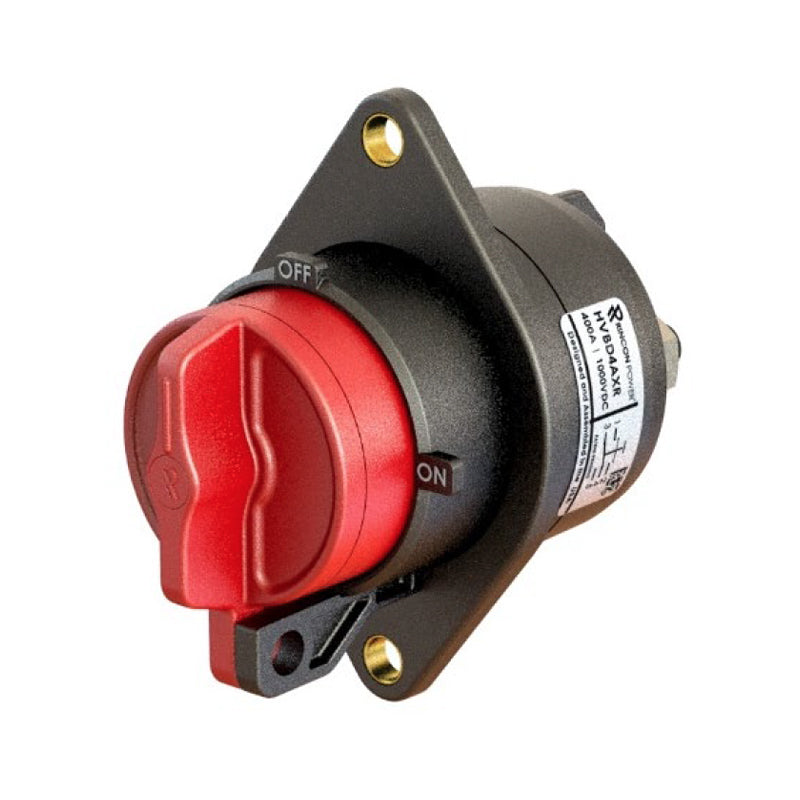

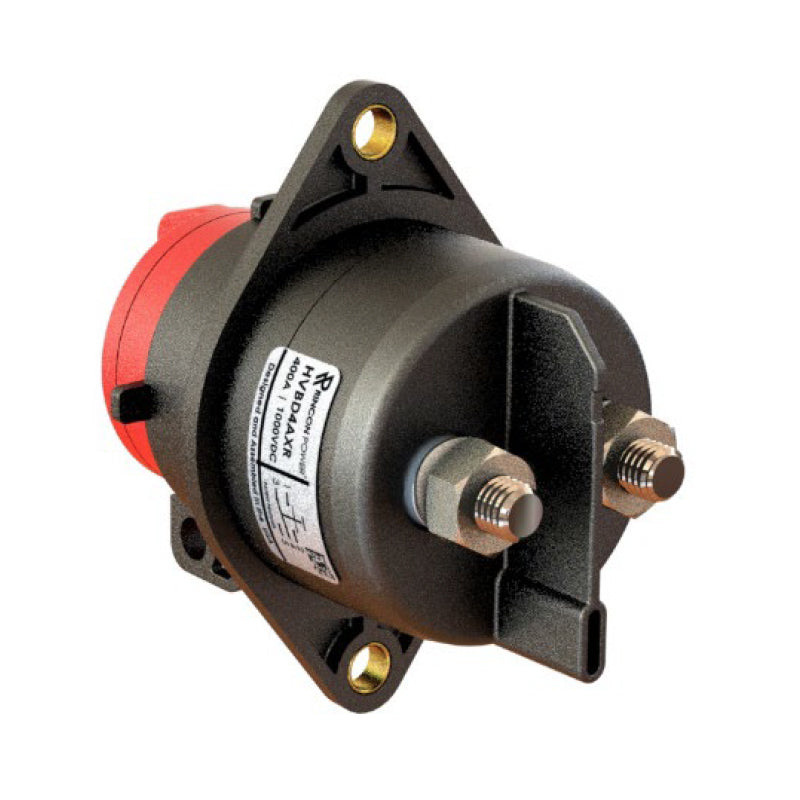

HVBD4AXR
![HVBD4AXR]()
![HVBD4AXR]()
HVBD4AXR
Available: 9 items in stock
- 400A Continuous Duty
- Robust metal-ceramic hermetic seal
- Industry leading dielectric withstand voltage
- High temperature performance
- Ultra-low contact resistance over life
- Ready for harsh environments
- Designed for OSHA compliant lockout/tagout (LOTO)
- Optional integrated auxiliary contacts
- Patent pending
- Product SKU: HVBD4AXR
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$231.00 CAD
HVBD SERIES - HIGH VOLTAGE BATTERY DISCONNECT
HVBD is the next level in battery disconnect technology.
HVBD SERIES - HIGH VOLTAGE BATTERY DISCONNECT
HVBD is the next level in battery disconnect technology.
| Model: | HVBD4AXR |
| Contact Arrangement: | Form X, SPST |
| Operating Voltage: |
Up to1,000VDC |
| Dielectric Withstand Voltage: | 5,000VDC, 1 minute |
| Continuous Current: | 400A Continuous Duty |
| Make and Break (400A @ 24VDC): | 5,000 cycles |
| Voltage Drop (Max at nominal load): | 40mV |
| Min Insulation Resistance: | 100Mohm |
| Shock, 1/2 Sine, 11ms: | 25G |
| Vibration, Sinusoidal (10-500Hz Peak): | 4G |
| Vibration, Sinusoidal (500Hz-2000Hz Peak): | 20G |
| Operating Temperature: | -55˚C to 85˚C |
| Ingress Protection: | Exceeds IP69, (Hermetically sealed) |
| Weight: | 425g |
| Case Material: | PA GF |
| Switch Lever Material: | PA GF |
| Mounting: | 100mm | C:C, 2X M8 |
| Mounting Position: | Any |
| Auxiliary Contact (SPDT)– Continuous Current: | 3A |
