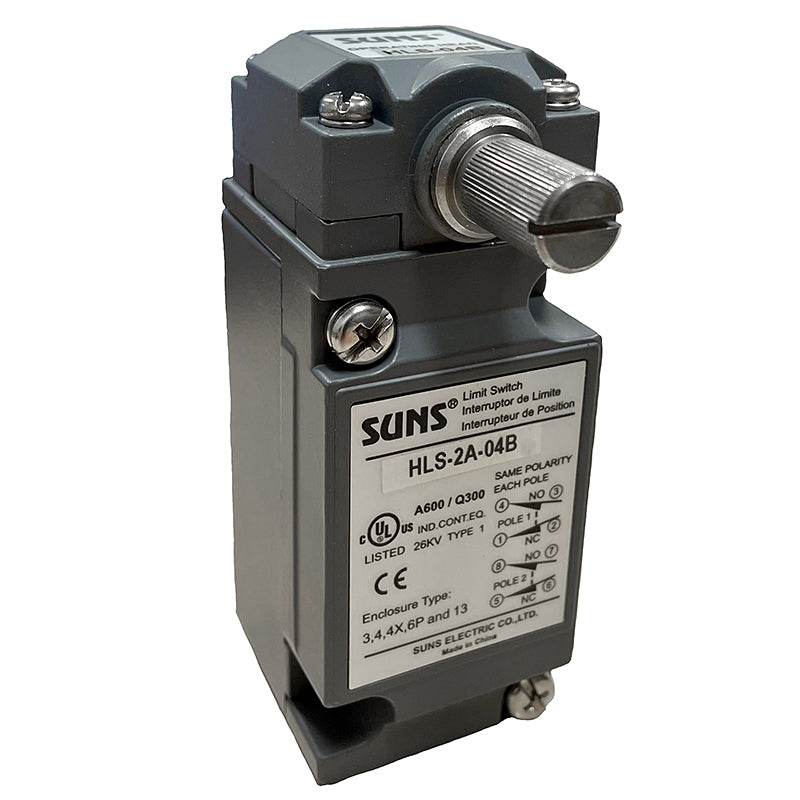

HLS-2A-04B
![HLS-2A-04B]()
HLS-2A-04B
Available: 1 item in stock
- Heavy duty zinc die cast body
- 2NO/2NC Standard Pretravel
- Conform to EN 60947-5-1, IEC 60947-5-1, UL508, NEMA250, CSA22.2 Standards
- Wide range of actuator available
- High repeatability (0.03mm for linear travel)
- Available in three body styles: Compact, standard, explosion-proof
- Lever not included
- Product SKU: HLS-2A-04B
- Category:Electromechanical Switches
- Contact for high volume orders (25 or more) for special pricing
$258.94 CAD
HMS/HLS/HNS Series Heavy Duty Limit Switches
For almost two decades SUNS has been delivering stand-alone solutions that offer value and field tested reliability to customers.
HMS/HLS/HNS Series Heavy Duty Limit Switches
For almost two decades SUNS has been delivering stand-alone solutions that offer value and field tested reliability to customers.
| Model: | HLS-2A-04B |
| Operating Speed: | 0.05mm-2m/sec |
| Rated Current/Voltage: |
10A/600V AC (EN60947-5-1) |
| Contact Configuration: |
2NO/2NC Standard Pretravel |
| Service Life: | 10 Million (minimum) Electrical 1 Million (minimum) |
| Operating Temperature: | -28.9 ~ +85℃ (-20 ~ 185°F) |
| Vibration: | 25gn (10 .. 150Hz, 11ms) per IEC60068-2-6 |
| Impact: | 60gn (9ms) per IEC60068-2-27 |
| Dielectric Strength: | 2200VAC for 1 minute |
| Short Circuit Protection: | 10A Fuse |
| Terminal Line: | 12-22AWG (2.05-0.644 square mm) |
| Degree of Protection: | IP67 conforming to IEC60529, NEMA Types 2,4,6,6 P, 12,13 |
