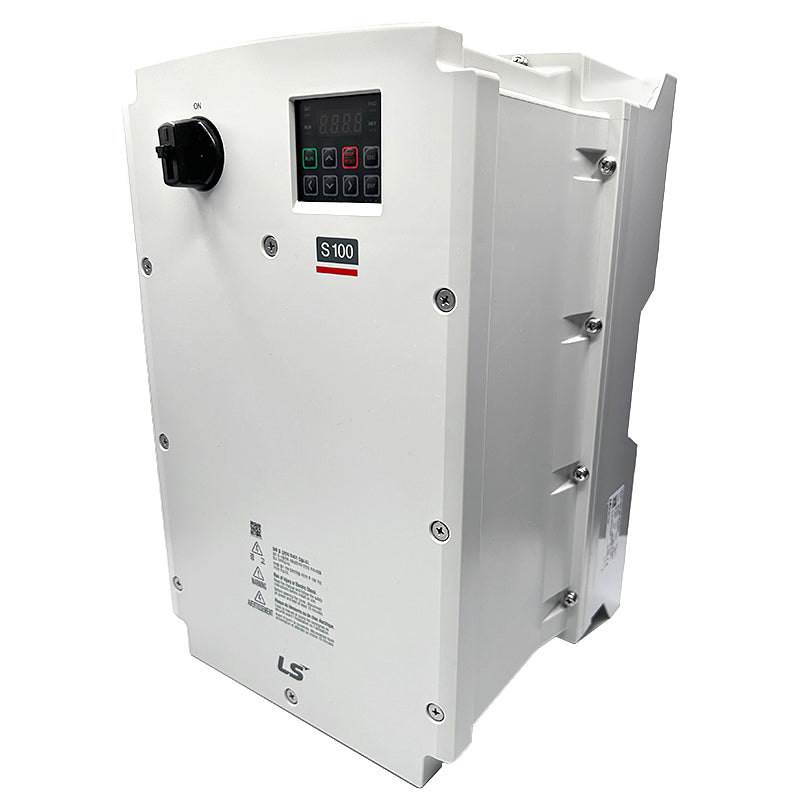

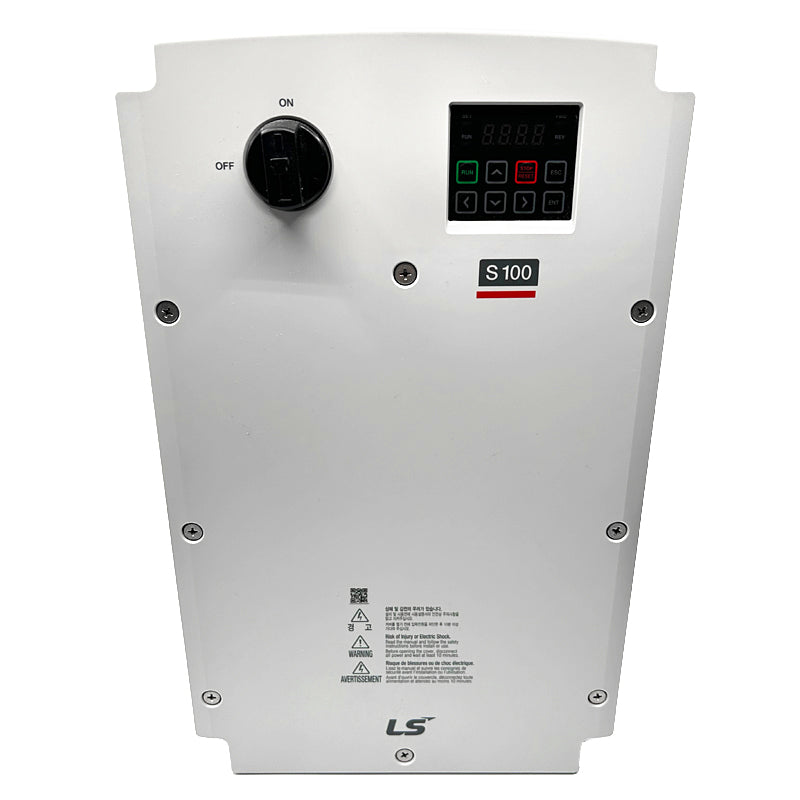

LSLV0220S100-4EXFNS
![LSLV0220S100-4EXFNS]()
![LSLV0220S100-4EXFNS]()
![LSLV0220S100-4EXFNS]()
LSLV0220S100-4EXFNS
Available: 2 items in stock
- Single phase, 230V, 0.5 to 3hp / Three phase, 230V, 0.5 to 20hp / Three phase, 480V, 0.5 to 100 hp
- Protection Degrees: IP20/UL Open (Default), UL Enclosed type 1 (Option), IP66/NEMA 4X (Option)
- Control Methods: V/f, Slip compensation, Sensorless vector
- Power loss ride through
- Dual rated for constant or variable torque
- Side by side installation
- Heatsink out the back (flange option)
- Operation Functions: PID control, 3-wire operation, Frequency limit, Second function, Anti-forward and reverse direction rotation, Commercial transition, Speed search, Power braking, Leakage reduction, Up-down operation, DC braking, Frequency jump, Slip compensation, Automatic restart, Automatic tuning, Energy buffering, Flux braking, Fire Mode
- *Pictures may not represent exact product
- Product SKU: 6031002900
- Category:Motor Control
- Contact for high volume orders (25 or more) for special pricing
$3,207.33 CAD

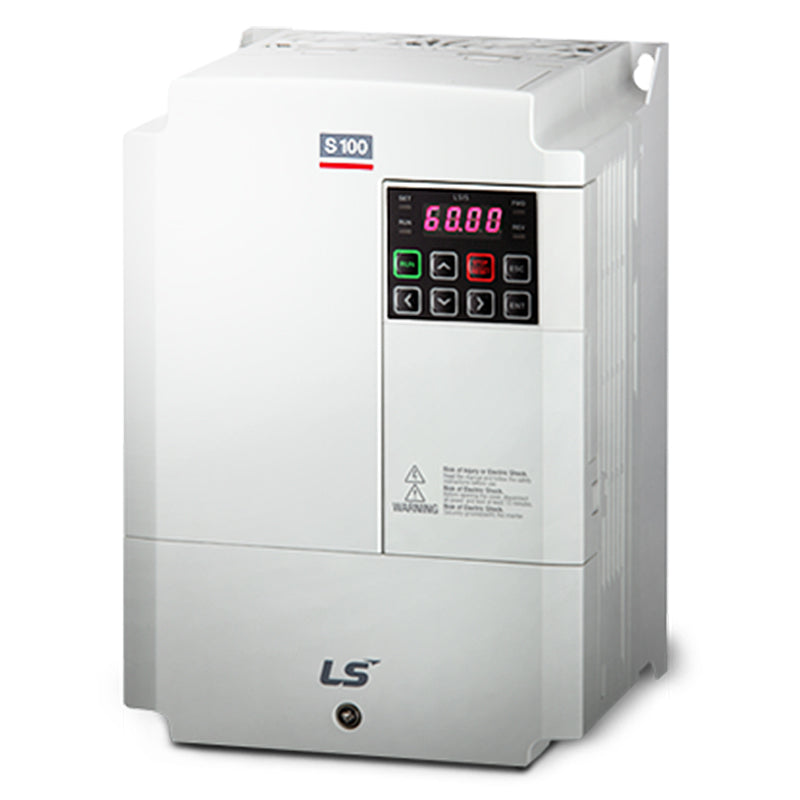

High-performance Standard Drive S100
The S100 series is a general purpose industrial drive with V/F and sensorless vector control available from 1/2 to 100 hp. This drive is dual rated for constant torque and variable torque.
Strong Power with a Compact Size! Powerful sensorless control, and a diverse range of user friendly functions delivers added value to our customers. Meet the new standard drive S100 by LS for the global market.
High-performance Standard Drive S100
The S100 series is a general purpose industrial drive with V/F and sensorless vector control available from 1/2 to 100 hp. This drive is dual rated for constant torque and variable torque.
Strong Power with a Compact Size! Powerful sensorless control, and a diverse range of user friendly functions delivers added value to our customers. Meet the new standard drive S100 by LS for the global market.
| Model: | LSLV0220S100-4EXFNS |
| Alternate Part Number: | 6031002900 |
| Input Voltage: | 380-480V, 3 Phase |
| Horsepower: | 30 hp |
| Output: | 3 Phase Output |
| Housing/Enclosure: | NEMA 4/4X (IP66) |
| Type of Drive: | General Purpose, Volts per Hertz (V/Hz), Sensorless Vector |
| Outdoor Rated: | No |
| STO (Safe Torque Off): | Yes |
| Options: | Enclosed, Integrated EMC Filter, No DC Reactor, Keypad, STO (Safe Torque Off) |
| Product Series: | S100 Series |
| Input Phase: | 3 Phase |
