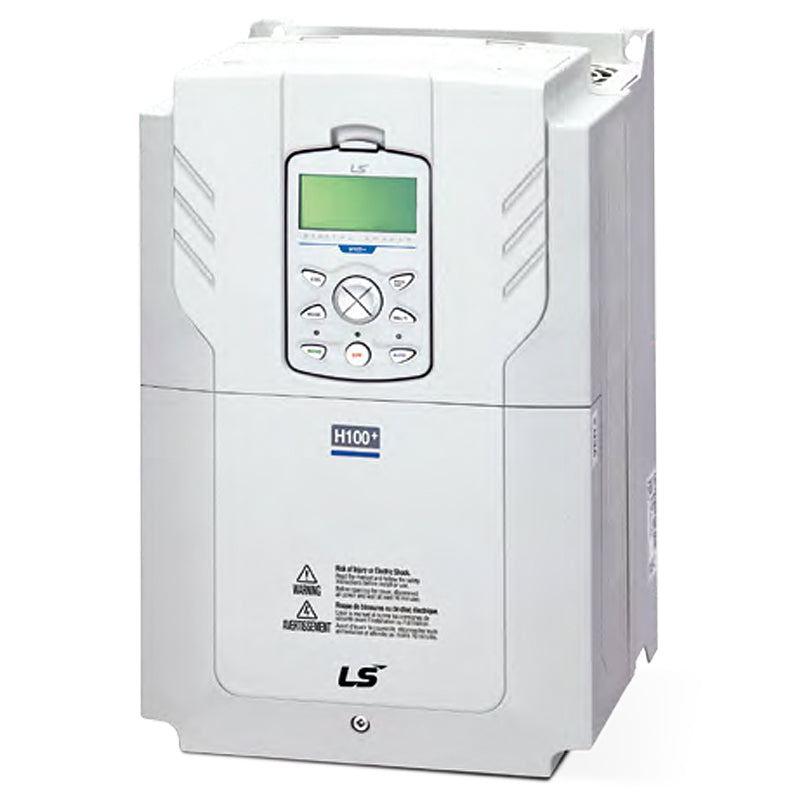

LSLV0550H100-5COND(PLUS)
- 3-Phase 525-600 VAC (-15%–+10%)
- 60HP
- New pump control functions
- User-friendly key control
- Improved PID performance
- Optimized for HVAC and water treatment
- HMI solutions tailored to your pump & fan application

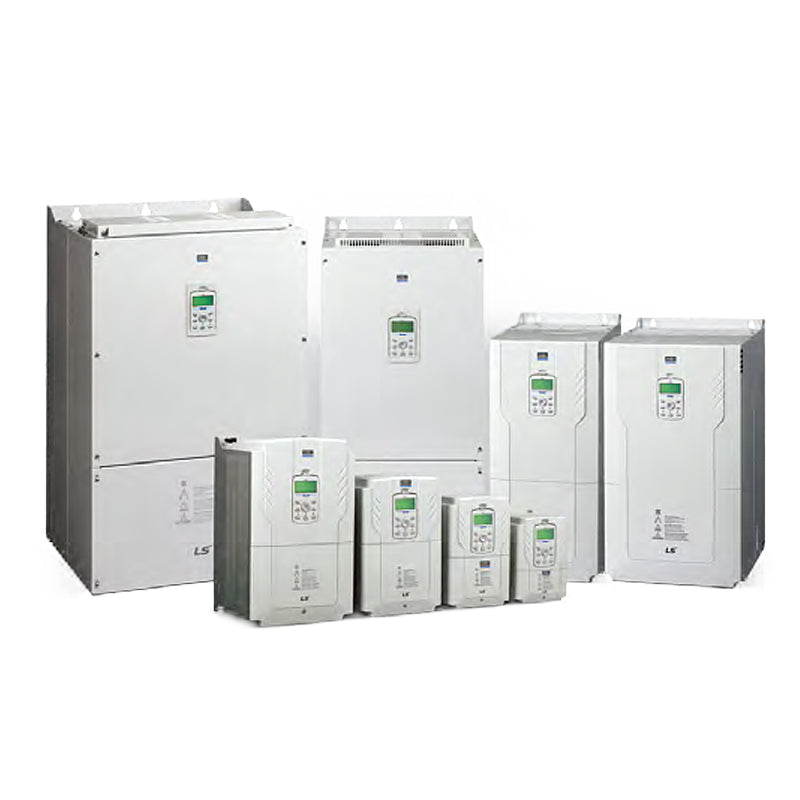

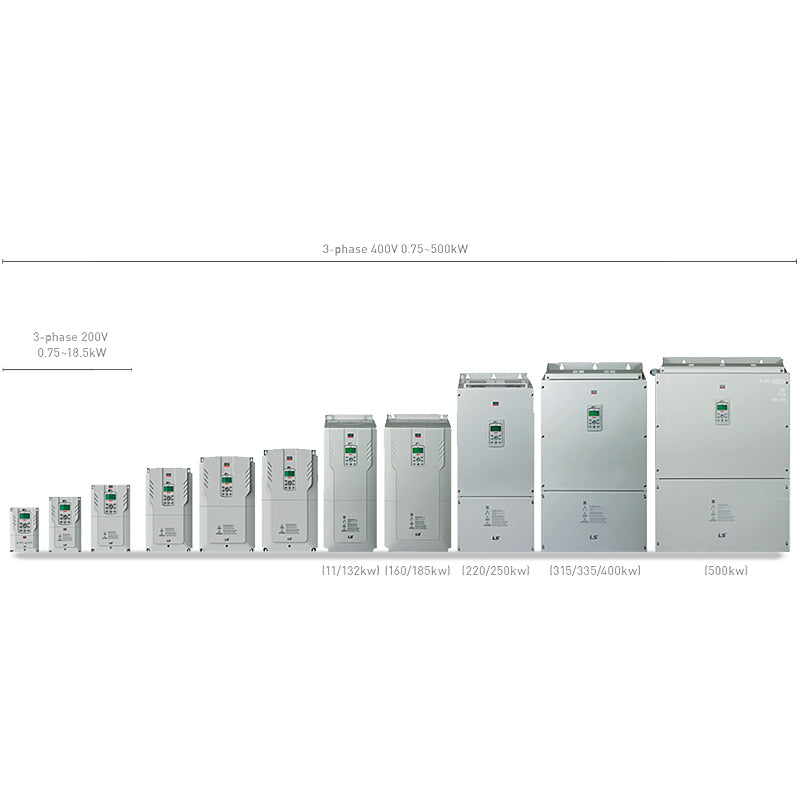

- *Pictures may not represent exact product
- Product SKU: 67320014PL
- Category:Motor Control
- Contact for high volume orders (25 or more) for special pricing
H1OO+(Plus) Fan and Pump Drive - Game Changer - Featuring new fan & pump control functions!
Evolution of Pumping Controls
LS ELECTRIC’s H100+ is superior drive that operates variable speed control of AC motor pumps. Minimal setup and no extra equipment are required to achieve outstanding pump control and operations utilizing H100+ drive features.
ECO-friendly and Energy Saving
The H100+ is an eco-friendly and energy-saving solution designed for fan and pump systems. Up to 40% of energy savings can be achieved by optimizing speed control. The H100+ includes newly integrated pump control and protection features for reliable operation.
H1OO+(Plus) Fan and Pump Drive - Game Changer - Featuring new fan & pump control functions!
Evolution of Pumping Controls
LS ELECTRIC’s H100+ is superior drive that operates variable speed control of AC motor pumps. Minimal setup and no extra equipment are required to achieve outstanding pump control and operations utilizing H100+ drive features.
ECO-friendly and Energy Saving
The H100+ is an eco-friendly and energy-saving solution designed for fan and pump systems. Up to 40% of energy savings can be achieved by optimizing speed control. The H100+ includes newly integrated pump control and protection features for reliable operation.
| Model: | LSLV0550H100-5COND(PLUS) |
| Alternate Part Number: | 67320014PL |
| APPLIED MOTOR | |
| Heavy Duty (150% OL): | 60HP / 45kW |
| Normal Duty (110% OL): | 75HP / 55kW |
| RATED OUTPUT | |
| Rated Capacity (kVA): | 79.7 |
| Rated Current (A): | 60HD / 73.9ND |
| Output Frequency: | 0–120 Hz |
| Output Voltage (V): | 3-Phase 575 V |
| RATED INPUT | |
| Working Voltage (V): | 3-Phase 525-600 VAC (-15%–+10%) |
| Input Frequency: | 60 Hz (±5%) |
| Rated Current (A): | 60HD / 73.9ND |
| Weight (lb): |
74.3 |
