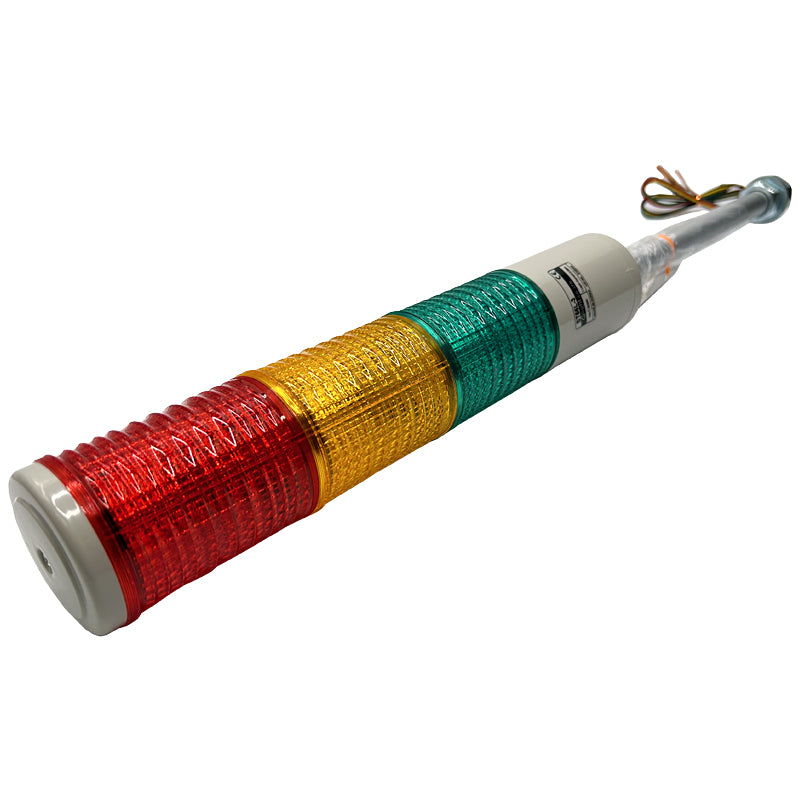

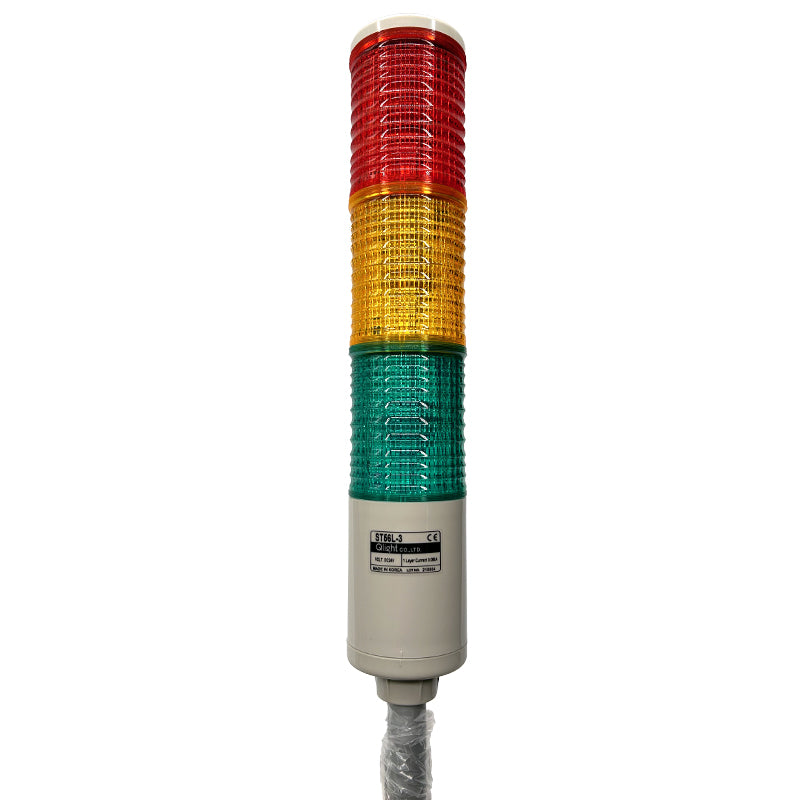

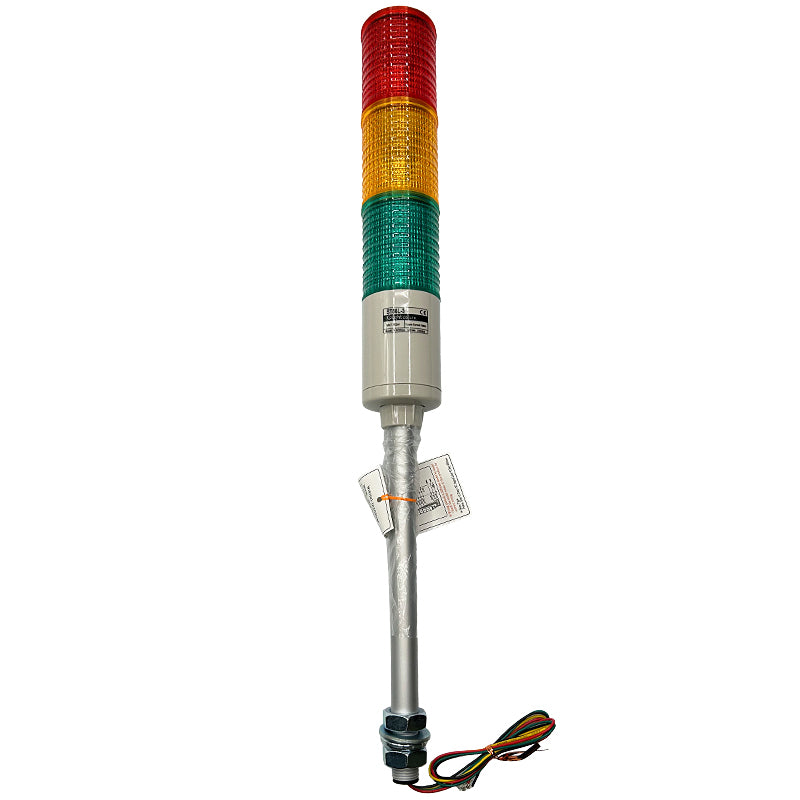

ST56L-3-24-RAG
![ST56L-3-24-RAG]()
![ST56L-3-24-RAG]()
![ST56L-3-24-RAG]()
ST56L-3-24-RAG
Available: 4 items in stock
- Ø56mm pole mount, LED steady/flashing tower lights
- Long product lifetime of over 20,000hours with the application of a high intensity LED light source
- A variety of mounting bracket selections for the pole mount type to fit your location and mounting needs
- Built-in buzzer available (Volume : Max. 90dB at 1m)
- Flashing rate : 60-80 flashes/min
- Customized color arrangement available (LED light distribution system and lens is integrated into a combined structure)
- Materials : Lens-AS, Housing-ABS, Pole-Al
- Ambient operating temperature: -30°C to +60°C
- Protection rating : Standard type-IP44, Built-in buzzer type-IP23
- 24VDC UL listed model is optionally provided
- Product SKU: ST56L-3-24-RAG
- Category:Flashers & Sounders
- Contact for high volume orders (25 or more) for special pricing
$161.48 CAD
ST Series
Universal LED signal tower light with a wide selection of audio and visual signaling options according to the application environment and intended use.
ST Series
Universal LED signal tower light with a wide selection of audio and visual signaling options according to the application environment and intended use.
| Model: |
ST56L-3 |
| Voltage: |
AC/DC12V |
| Current: |
0.360A |
| Product Feature: |
Buzzer volume fixed type (Max. 90dB at 1m) : optionally available |
| Type of Signaller: | Signalling Column |
| Signalling Method: | Continuous Light |
| Light Source: | LED |
| Colour: | Red/Amber/Green |
| IP Rating: | IP44 |
| Dimensions: | Ø56x511mm |
| Materials: | Lens-AS │ Housing-ABS │ Pole-Al |
| Weight: | 615.0g |
| Certificates: | CE Compliant, UL Listed Compliant with RoHS directive |
