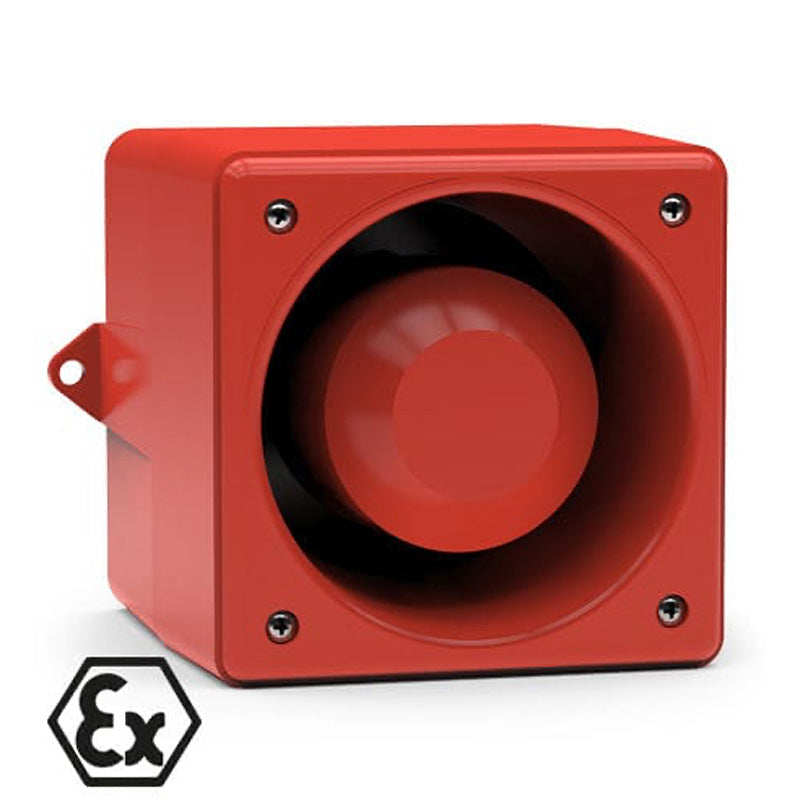

Multi-Tone Sounder for Explosive Area Use with Tone Stage Selection, 95 to 127 VAC
![Multi-Tone Sounder for Explosive Area Use with Tone Stage Selection, 95 to 127 VAC]()
Multi-Tone Sounder for Explosive Area Use with Tone Stage Selection, 95 to 127 VAC
Available: 2 items in stock
- The industrial sounder for tough applications
- For use as an acoustic alarm in potentially explosive workplaces of
category 3G (Zone 2) and 3D (Zone 22)
- Category for gas and dust protection
- IP 67 for safe operation under extreme environmental conditions
- Individual selection of 32 different tones
- 4-stage external tone selection (options: TAS, TAV)
- All tones can be individually combined with one another when externally controlled (programming function, tone 32)
- Product SKU: 23106150155
- Category:Flashers & Sounders
- Contact for high volume orders (25 or more) for special pricing
$1,188.88 CAD
| Model: | 23106150155 |
| Rated voltage: |
115 V AC 50 | 60 Hz |
| Operating range: |
95–127 V |
| Nominal current consumption: | 0.06 A |
| Explosion protection: |
II 3G Ex nA II T4 (all voltages except 24 V AC) II 3G Ex nA II T3 (24 V AC only) II 3D Ex tD A22 IP 67 T135°C |
|
Category (area of use): |
3G (Zone 2), 3D (Zone 22) |
| Testing body: | Pfannenberg |
| Sound pressure level: | 108 dB(A) ± 3 dB(A) |
| Sound pressure level @DIN-tone: | 107 dB(A) ± 3 dB(A) |
| Alarm tones: | 32 / 4 tones are externally selectable |
| Temperature class: | T4 / T3 @ –25 °C ... +55 °C |
| Storage temperature: | –40 °C ... +70 °C |
| Protection system (EN 60529): | IP 66 | IP 67 |
| Duty cycle: | 100 % |
| Material: | die-cast aluminium GD-AI Si12 Cu |
| Surface coating: | epoxy resin paint RAL 3000, flame red |
| Cable brushing: | 2x M20 x 1.5 (1x plastic cable gland, 1 x plug) |
| Clamping range of the cable fitting: | 6-13 mm |
| Connecting terminal cross section: | mind. 0.08 mm2 ... max. 2.5 mm2 AWG 28 – 12 (AWG12 THHN, THWN) |
| Weight: | AC: 2.15 kg | DC: 1.95 kg |
