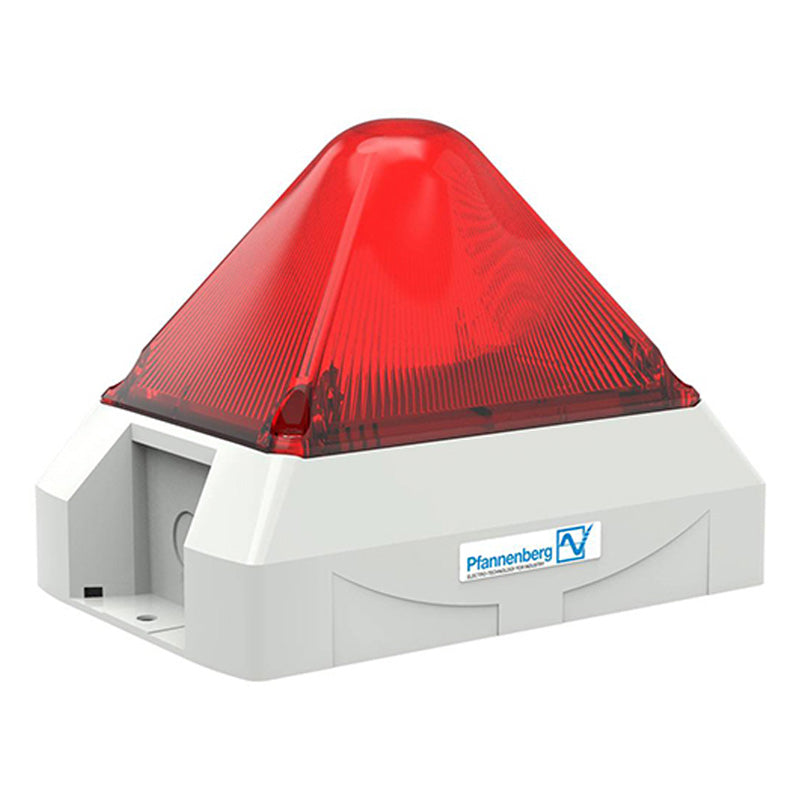

PYRA Flashing Strobe Light with Sounder Grey Housing Red Lens
![PYRA Flashing Strobe Light with Sounder Grey Housing Red Lens]()
PYRA Flashing Strobe Light with Sounder Grey Housing Red Lens
Available: 1 item in stock
- Safe – an incorrect installation is virtually impossible
- Easy – significantly shorter assembly and installation times
- Economical – largest possible signaling range due to effective Xenon
technology
- Installation options with external lugs or internal holes
- Choice of 4 different flash rates via DIP switch
- Electronic constant current regulation at 24 V AC/DC devices to avoid
load fluctuations
- Integrated inrush current limitation and undervoltage detection
- Providing full synchronisation on multi-flashing light systems
- Light and sounder can be controlled separately
- Product SKU: 21555815055
- Category:Flashers & Sounders
- Contact for high volume orders (25 or more) for special pricing
$408.10 CAD
| Model: | 21555815055 | 21555155055 |
| Rated voltage: | 24 V DC |
115 V AC |
| Operating range: | 10-57 V DC |
90-135 V AC 50 | 60 Hz |
| Nominal current consumption: |
540 mA @ 24 V |
250-270 mA |
| Sound pressure level: | 101 dB(A) | |
| Sound pressure level @DIN-tone: | 99 dB(A) | |
| Sound level reduction: | max. –20 dB via potentiometer | |
| Alarm tones: | 8 | |
| Flash energy and flash rate: |
10 J @ 0.1 | 0.5 | 0.75 | 1 Hz |
|
| Light intensity (DIN 5037): | 149 cd | |
| Operating temperature: |
–40 °C ... +55 °C |
|
|
Storage temperature |
–40 °C ... +70 °C | |
| Relative humidity: | 90 % | |
| Protection system (EN 60529): | IP 66 | |
| Protection class: | II | |
| Service life of the light source: | light emission still 70 % after 8,000,000 flashes | |
| Material: |
Base part: PC / ABS, RAL 3000 (flame red) / RAL 7035 (light grey) Lens flashing light: polycarbonate (PC) |
|
| Cable entry: |
2x M20 on side, 1x M20 on bottom |
|
| Integrated seal with cable entry: |
6–13 mm |
|
| Connecting terminals: | 2.5 mm2 fine wire, AWG 16 | |
| Weight: | 580 g | |
