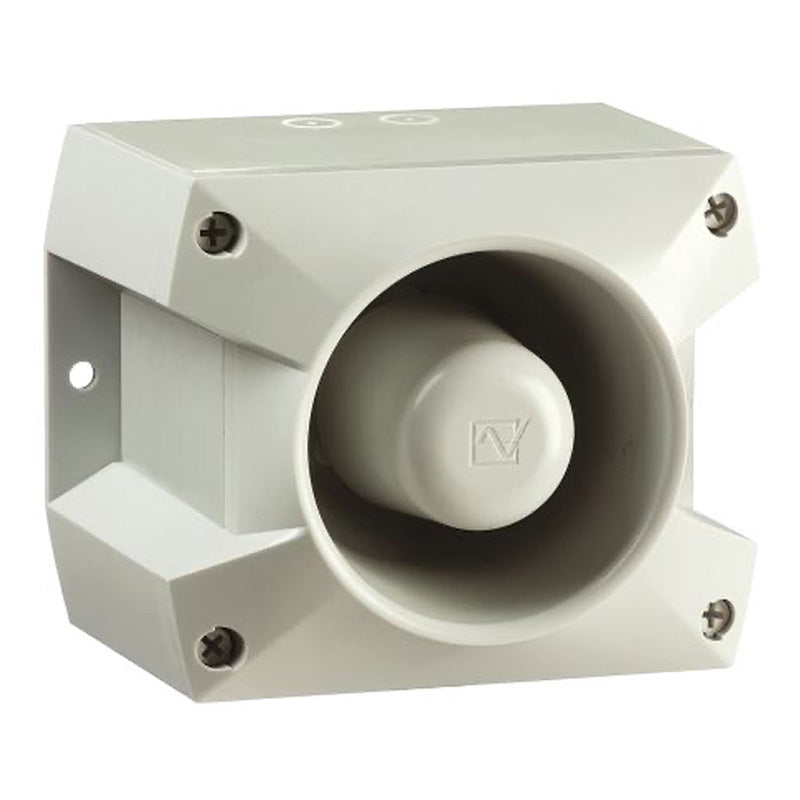

Sounder PA5-LV Surface Mount Grey Housing
![Sounder PA5-LV Surface Mount Grey Housing]()
Sounder PA5-LV Surface Mount Grey Housing
Available: 1 item in stock
- Safe - an incorrect installation is virtually impossible
- Easy - significantly shorter assembly and installation times
- Economical - extremely high efficiency and good penetration of acoustical obstacles significantly reduce the required number of sounders
- Product SKU: 23350630055
- Category:Flashers & Sounders
- Contact for high volume orders (25 or more) for special pricing
$331.10 CAD
PATROL SOUNDERS 100/105 dB(A)
PATROL – the new generation of sounders. Three dimensional innovation.
PATROL SOUNDERS 100/105 dB(A)
PATROL – the new generation of sounders. Three dimensional innovation.
| Model: | 23350630055 |
23350150055 |
| Rated voltage: | 10-57 V DC |
115 V AC |
| Operating range: | 10-57 V DC |
95-127 V AC 50 | 60 Hz |
| Nominal current consumption: |
6-80 mA |
8-30 mA |
| Sound pressure level: | 105 dB(A) | |
| Sound level reduction: | max. –12 dB via potentiometer | |
| Alarm tones: |
80 / 4 tones are externally selectable |
|
| Operating temperature: |
–40 °C ... +55 °C |
|
|
Storage temperature |
–40 °C ... +70 °C | |
| Relative humidity: | 90 % | |
| Protection system (EN 60529): | IP 66 | |
| Protection class: | II | |
| Duty cycle: | 100 % | |
| Material: |
PC / ABS blend similar to RAL 3000 (flame red) | RAL 7035 (light grey) | RAL 9003 (signal white) |
|
| Cable entry: |
5x M20 knock-outs on side, 1 knock-out on back |
|
| Integrated seal with cable entry: |
6–13 mm (feed-through grommet) |
|
| Connecting terminals: | 2.5 mm2 fine wire with cable end sleeve, AWG 16 | |
| Weight: | 643 g | 778 g |
