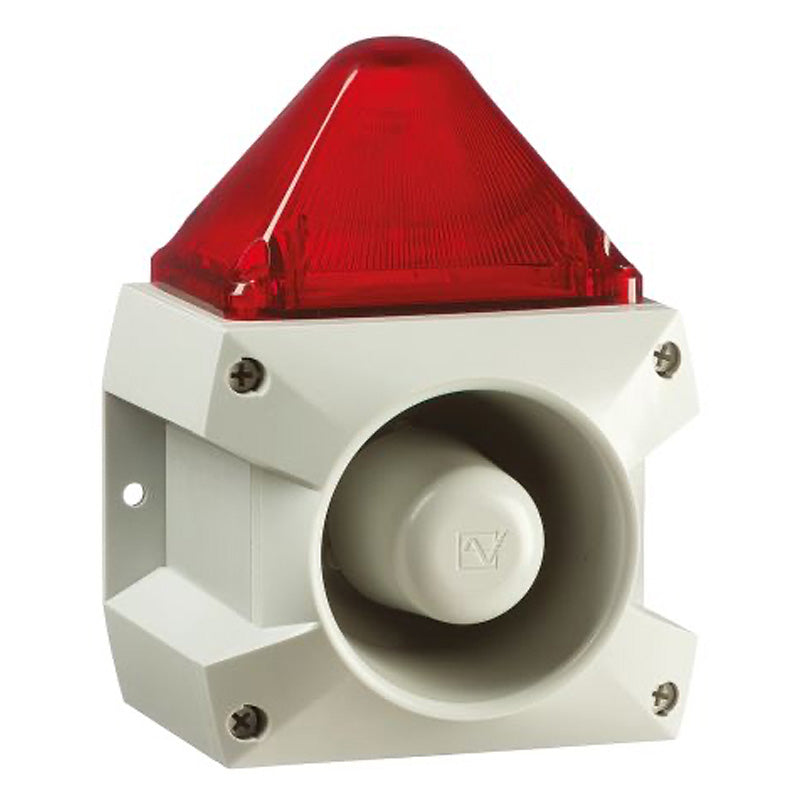

Patrol Alarm & Sounder with Grey Housing, Red lens
![Patrol Alarm & Sounder with Grey Housing, Red lens]()
Patrol Alarm & Sounder with Grey Housing, Red lens
Available: 1 item in stock
- Safe – an incorrect installation is virtually impossible
- Easy – significantly shorter assembly and installation times
- Economical – extremely high efficiency and good penetration of
acoustical obstacles significantly reduce the required number of
sounders
- Pre-wired sounder and light ex works
- Various light intensities available to support best match of audible and visual coverage
- Product SKU: 23351805055
- Category:Flashers & Sounders
- Contact for high volume orders (25 or more) for special pricing
$554.40 CAD
Patrol Flashing Sounders 105/107 dB(A) / 5/10 J
PATROL – The new generation of sounder/flashing light combinations. Three dimensional innovation.
Patrol Flashing Sounders 105/107 dB(A) / 5/10 J
PATROL – The new generation of sounder/flashing light combinations. Three dimensional innovation.
| Model: | 23351805055 | 23351105055 |
| Rated voltage: | 24 V DC |
230 V AC |
| Operating range: | 18-30 V DC |
187-255 V AC 50 | 60 Hz |
| Nominal current consumption: |
5 J: 315-365 mA 10 J: 565-620 mA |
5 J: 65-70 mA @ 230 V 10 J: 150-155 mA |
| Sound pressure level: | 107 dB(A) | |
| Sound pressure level @DIN-tone: | 105 dB(A) | |
| Sound level reduction: | max. –12 dB via potentiometer | |
| Alarm tones: | 80 / 4 tones are externally selectable | |
| Flash energy and flash rate: | 5 J @ 1 Hz = 60 flashes/min | |
| Light intensity (DIN 5037): | 56 cd | |
| Max. viewing distance: | 173 m | |
| Operating Temperature: | –40 °C ... +55 °C | |
| Relative humidity: | 90 % | |
| Protection system (EN 60529): | IP 66 | |
| Protection class: | II | |
| Service life of the light source: | light emission still 70 % after 8,000,000 flashes | |
| Material: |
Sounder: PC / ABS blend similar to RAL 3000 (flame red) / RAL 7035 (light grey) / RAL 9003 (signal white) Lens flashing light: polycarbonate (PC) |
|
| Cable entry: | 3x M20 knock-outs prepared (on side), 1 knock-out on back | |
| Integrated seal with cable entry: | 6–13 mm (feed-through grommet) | |
| Connecting terminals: | 2.5 mm2 fine wire with cable end sleeve, AWG 16 | |
| Weight: | 800 g | 983 g |
