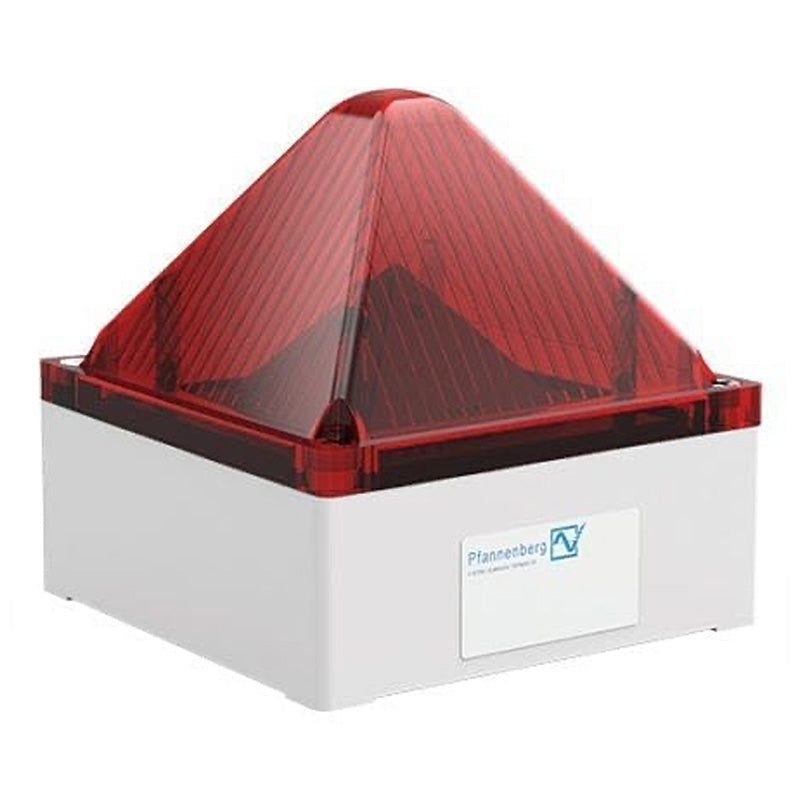

Multi Function Light, Grey Base, Red Lens
![Multi Function Light, Grey Base, Red Lens]()
LED Multi-Function Light
LED Multi-Function Light
Multi Function Light, Grey Base, Red Lens
Available: 1 item in stock
- Innovative LED light with high signaling effect
- Suitable for indoor and outdoor use
- Extremely insensitive to shock and vibration
- 3 selectable operating modes as standard:
- - Continuous light
- - Blinking light
- - Flashing light
- 24 V AC/DC devices as standard with Soft Start Module
- Double-pole terminal
- Inexpensive and flexible; wide range power supplies as standard
- Product SKU: 21108635000
- Category:Flashers & Sounders
- Contact for high volume orders (25 or more) for special pricing
$569.80 CAD
LED Multi-Function Light
Quadro-LED-HI
Designed for tough requirements under industrial conditions.
LED Multi-Function Light
Quadro-LED-HI
Designed for tough requirements under industrial conditions.
| Model: | 21108635000 |
| Rated voltage: |
24 V DC |
| Operating range: |
11–60 V |
| Current consumption (@ 1 Hz flash): | 165 mA @ 24 V DC |
| Operating mode internally and externally selectable (DC): | Continuous light Blinking light Flashing light |
| Light alternation frequency: | Blinking light: 1 Hz / 2 Hz Flashing light: 0.1 Hz / 0.5 Hz / 0.75 Hz / 1 Hz / 2 Hz |
| Light source: | 4 high output LED |
| Light intensity (DIN 5037)1: | 75 cd (reducible) |
| Max. viewing distance: | 201 m |
| Operating temperature: | –40 °C ... +55 °C |
| Storage temperature: | –40 °C ... +70 °C |
| Relative humidity: | 100 % |
| Protection system (EN 60529): | IP 66 | IP 67 |
| Impact resistance (EN 50102): | IK08 |
| Protection class: | II |
| Service life of the light source: | ≥50,000 hrs |
| Material: | Lens: polycarbonate (PC) Housing: polycarbonate (PC), grey RAL 7035 |
| Cable entry: | 2x M20/M32 sideways, 2x M20 bottom side |
| Connecting terminal: | Cage clamp 0.08–2.5 mm2 (2 per Pol) |
| Weight: | 500 g |
