HVSL800022A1H6
Categories
Amphenol

HVSL800022A1H6

Available: 91 items in stock

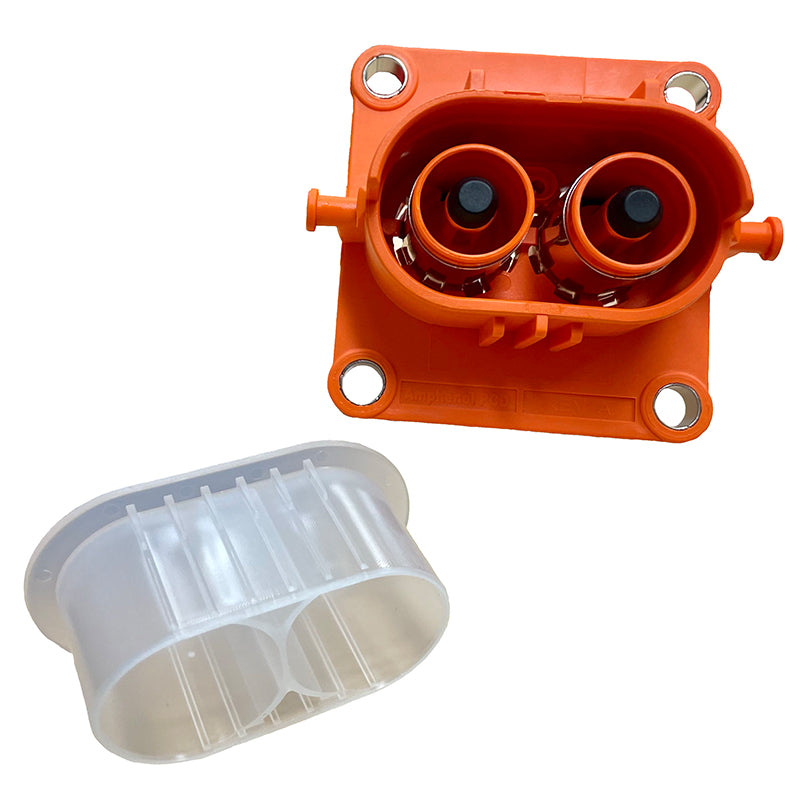

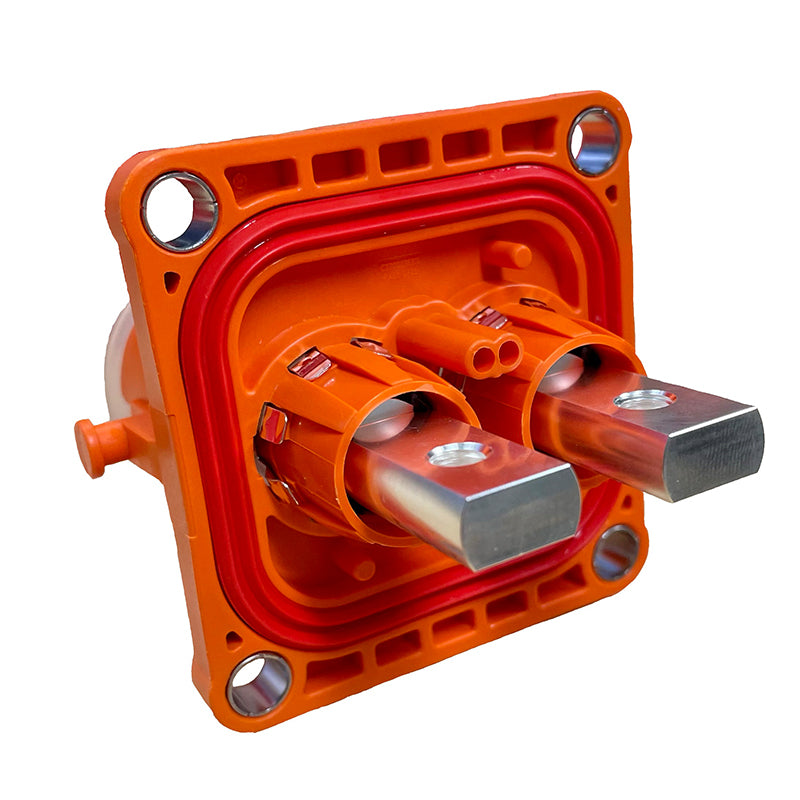

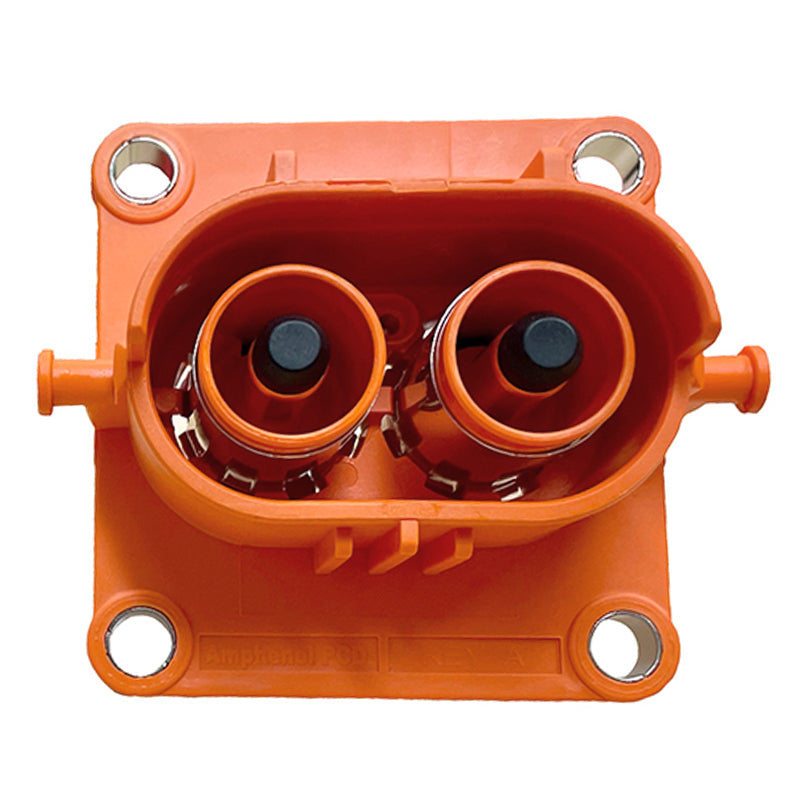

  • Male Panel Connector
  • 2 Pole
  • Straight
  • A-coded
  • With HVIL
$65.75 CAD

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Assembly Instructions (PDF)

High Voltage Safety Lock (HVSL) Connectors

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Assembly Instructions (PDF)

Model: HVSL800022A1H6
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 180A
Contact Diameter: 8,0 mm
IP-Class Mated: IP69K
Gender:  Male Receptacle
Termination Style: Screw
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Mating Cycles: 50
Shielding: Yes
RoHS Compliant: Yes
