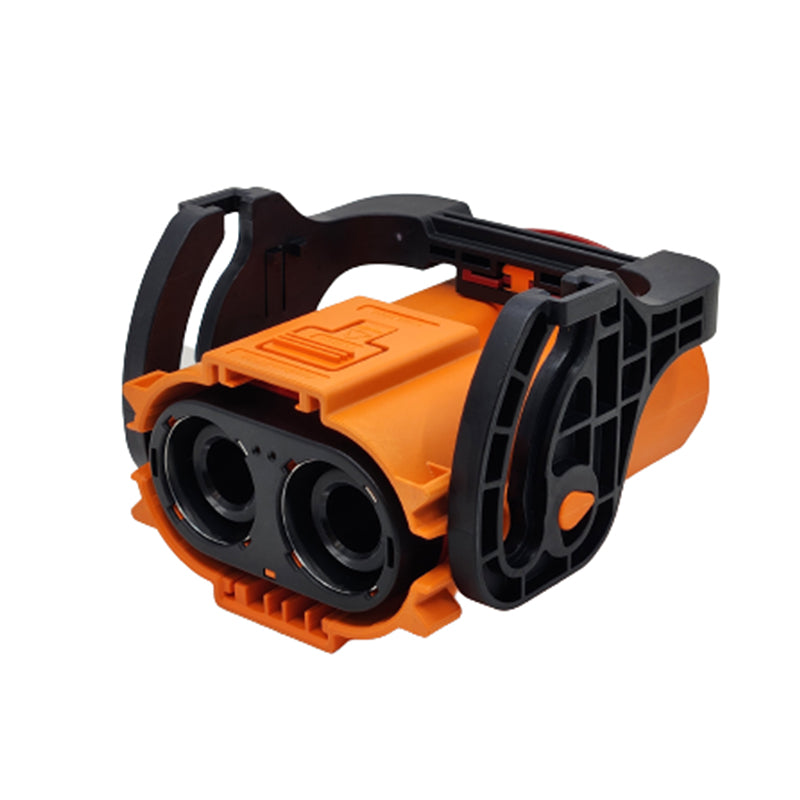

HVSL1400062B1120
![HVSL1400062B1120]()
HVSL1400062B1120
Available: 10 items in stock
- HVSL 1400 2 Ways Plug
- Straight
- B-coded
- 120 mm²
- HVIL
- Product SKU: HVSL1400062B1120
- Category:EV Connectors
- Contact for high volume orders (25 or more) for special pricing
$213.25 CAD
High Voltage Safety Lock (HVSL) Connectors
The new high power connectors Excel|Mate HVSL 1400 are built for various EV applications. The protection class of IP67 / IP6K9K / IP2XB guarantees a secure connection under harsh environmental conditions. HVSL 1400 is offering a design for wire gauges from 70 up to 120 mm², current carrying capacity up to 430 A and 1000V DC.
High Voltage Safety Lock (HVSL) Connectors
The new high power connectors Excel|Mate HVSL 1400 are built for various EV applications. The protection class of IP67 / IP6K9K / IP2XB guarantees a secure connection under harsh environmental conditions. HVSL 1400 is offering a design for wire gauges from 70 up to 120 mm², current carrying capacity up to 430 A and 1000V DC.
| Model: | HVSL1400062B1120 |
| Number of Positions (w/o PE) | 2 |
| Rated Voltage: | 1000V |
| Rated Current (40°C): | 430A |
| IP-Class Mated: | IP67 / IP6K9K |
| Gender: | Female Cable Connector |
| Termination Style: | Crimp |
| Housing: | Plastic |
| High Voltage Interlock | Yes |
| Maximum Operating Temperature: | + 70 C |
| Minimum Operating Temperature: | - 40 C |
| Product Type: | Power Connector |
| Market: | Electric Vehicle |
| Max. Wire Gauge: | 120 |
| Min. Wire Gauge: | 120 |
| Shielding: | Yes |
| RoHS Compliant: | Yes |
