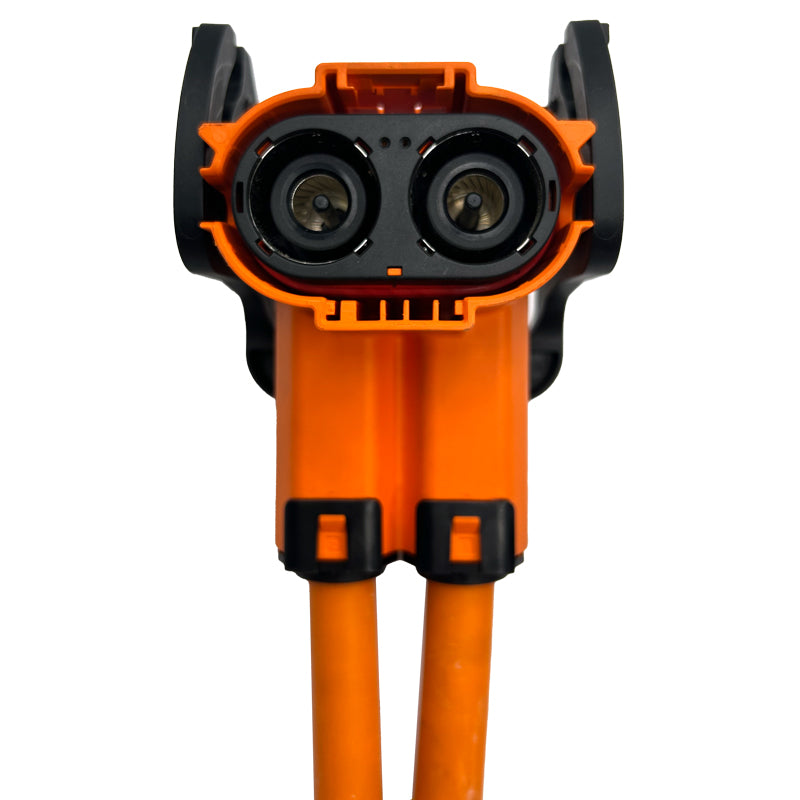

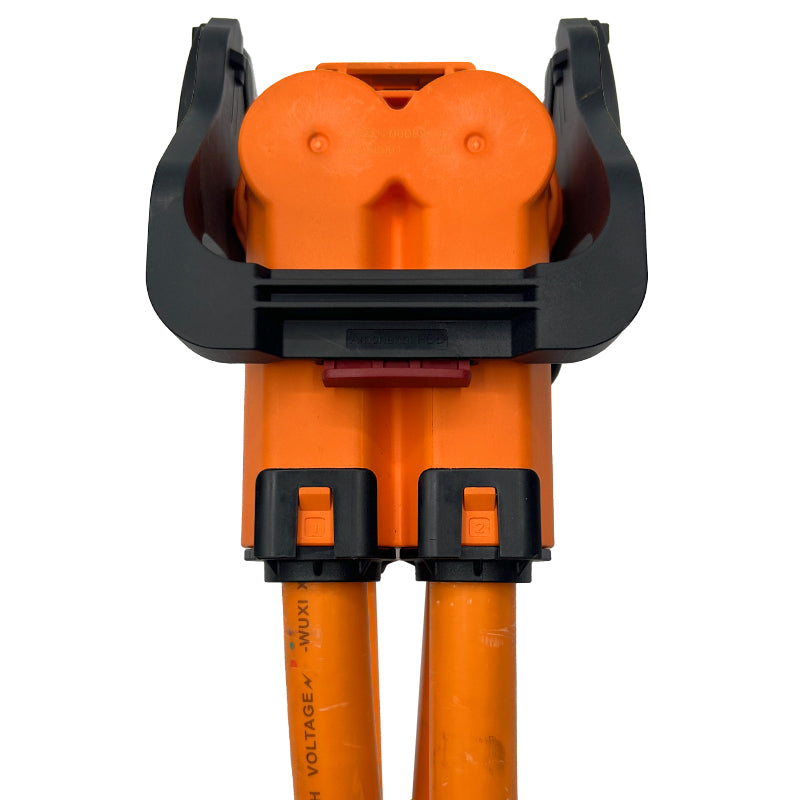

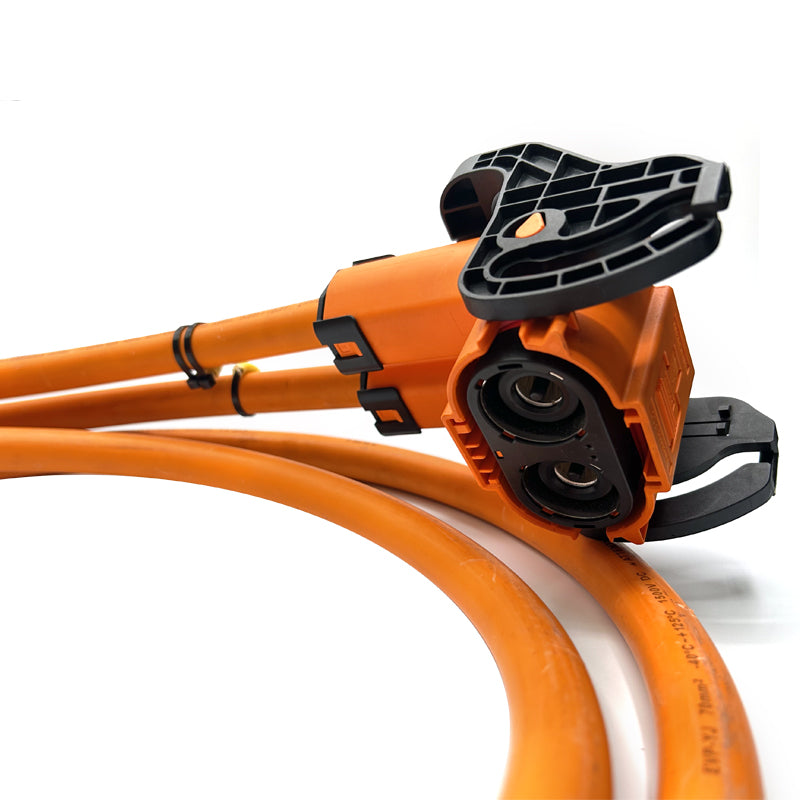

HVSL1200082A170L3000

Available: 5 items in stock
  • HVSL1200 082 Plug Cable Assembly
  • 70MM2 Shielding Orange Cable OD=19.0±0.5
  • 3M Total Length
  • 2 Pole
  • 90°
  • 70mm²
  • A-coded
  • With HVIL
$812.46 CAD

HVSL1200 082 Plug Cable Assembly

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)

HVSL1200 082 Plug Cable Assembly

Amphenol PCD Shenzhen HVSL Circular Connectors for electrical vehicle (EV) batteries, chargers, and related applications feature up to 1000V voltage, up to 330A operating current, and a -40ºC to +125ºC operating temperature range. HVSL connectors provide a 2.8 to 10mm RADSOK contact and IP67 / IP67K sealing. The series includes secondary locking and external or internal HVIL. Applications include EV batteries, chargers, inverters, junction boxes, and power distribution boxes.

Drawing (PDF)
Datasheet (PDF)

Model: HVSL1200082A170L3000
Number of Positions (w/o PE)  2
Rated Voltage: 1000V
Rated Current (40°C): 350A
IP-Class Mated: IP67 / IP6K9K
Contact Diameter: 12
Gender:  Female Receptacle
Insulation Resistance: 100MQ Min +
Withstand Voltage: 3000V/AC r.m.s
Mounting Style: Cable Mount / Free Hanging
Termination Style: Crimp
High Voltage Interlock Yes
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Automotive Connectors
Mating Cycles: 50
Max. Wire Gauge: 70
Min. Wire Gauge: 70
Shielding: Yes
RoHS Compliant: Yes
