HVCONT1001

COMING SOON Available in June 2025

NACS to CCS1 Adapter

Product SKU: HVCONT1001
Category:EV Connectors,New Products
Contact for high volume orders (25 or more) for special pricing

Description
Specifications

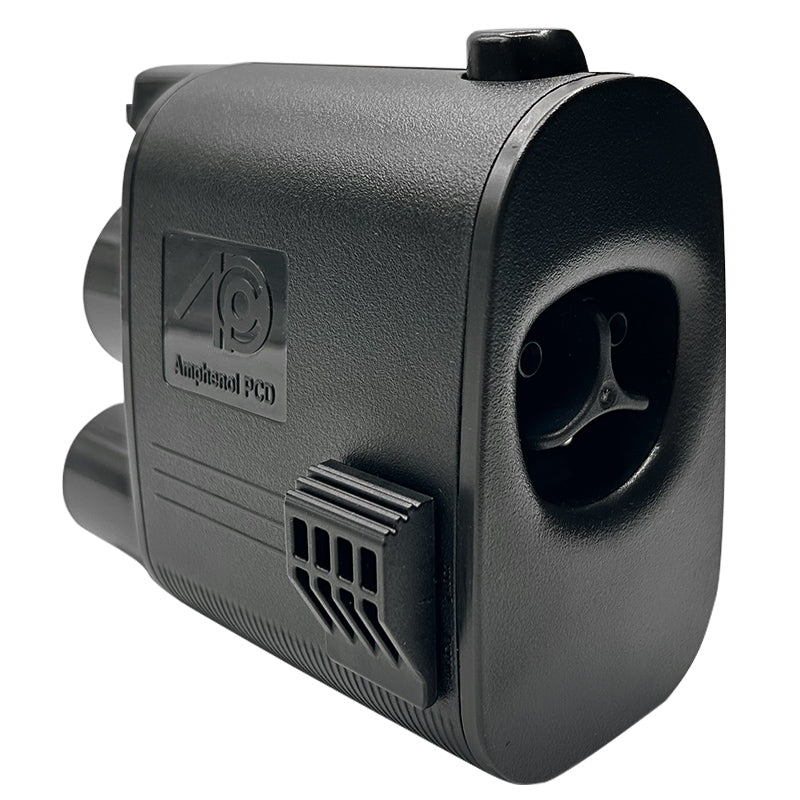

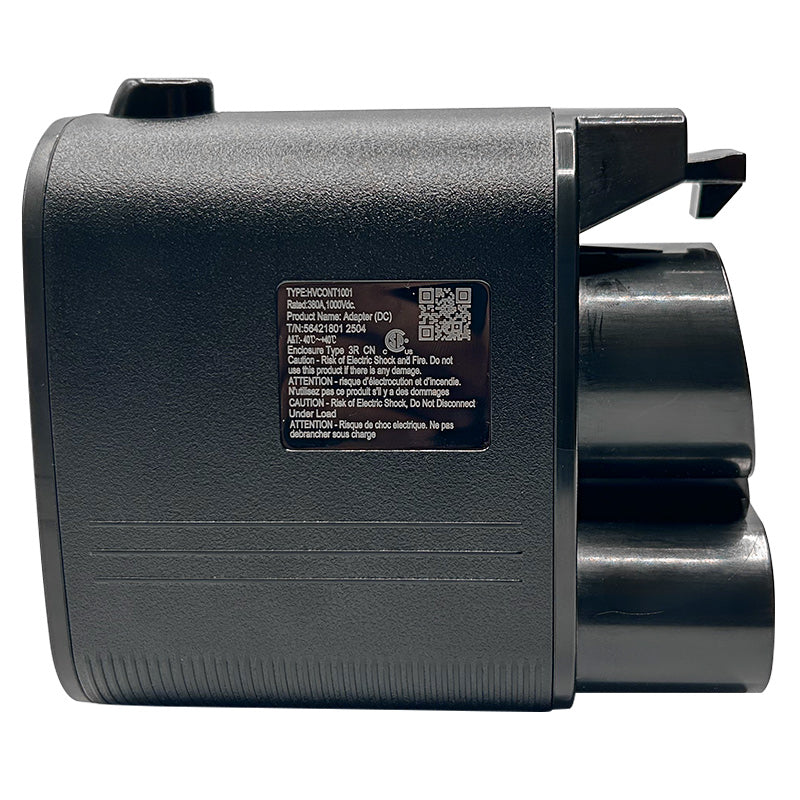

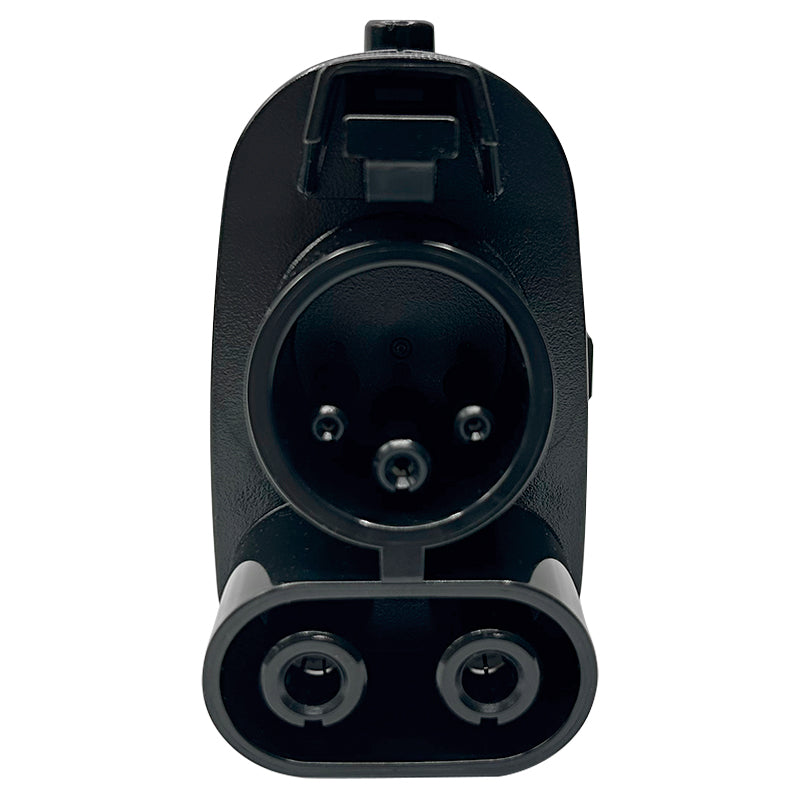

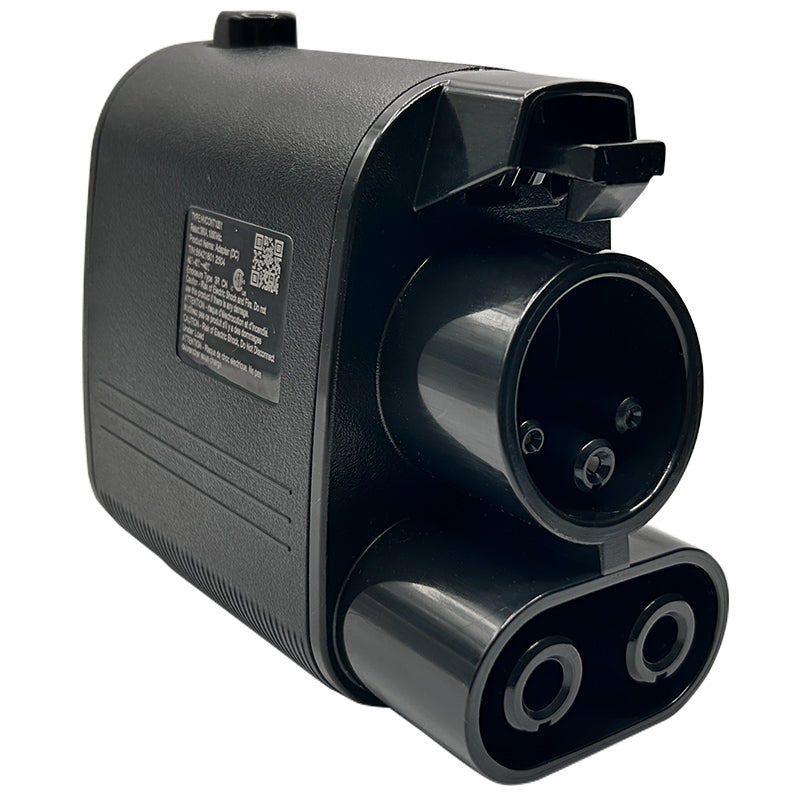

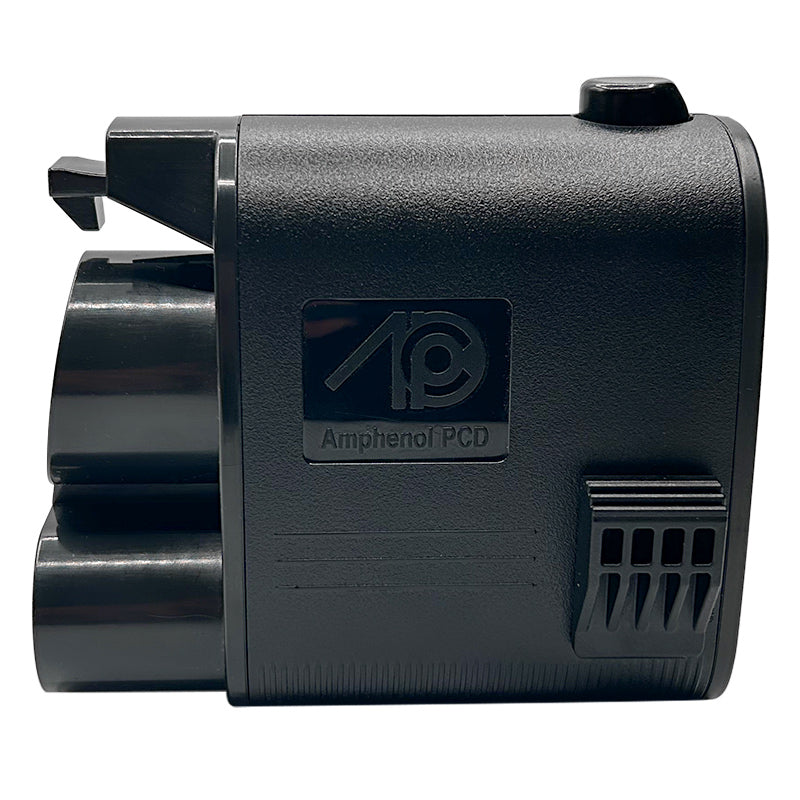

Amphenol PCD Charging Adapter - NACS to CCS1

NACS to CCS1 Adapter

Drawing (PDF)
Datasheet (PDF)

Amphenol PCD Charging Adapter - NACS to CCS1

NACS to CCS1 Adapter

Drawing (PDF)
Datasheet (PDF)

Model:	HVCONT1001
Current Rate:	Liquid cooling 500A to 600A Non liquid cooling 380A
Voltage Rate:	Power 1000VDC
Operation Temp:	-40 to 105°C
Ambient Temp:	-40 to 50 °C
Durability:	10,000 cycles
Waterproof:	Type 3S mated, IP67 Enclosure
Fire Classification:	V0

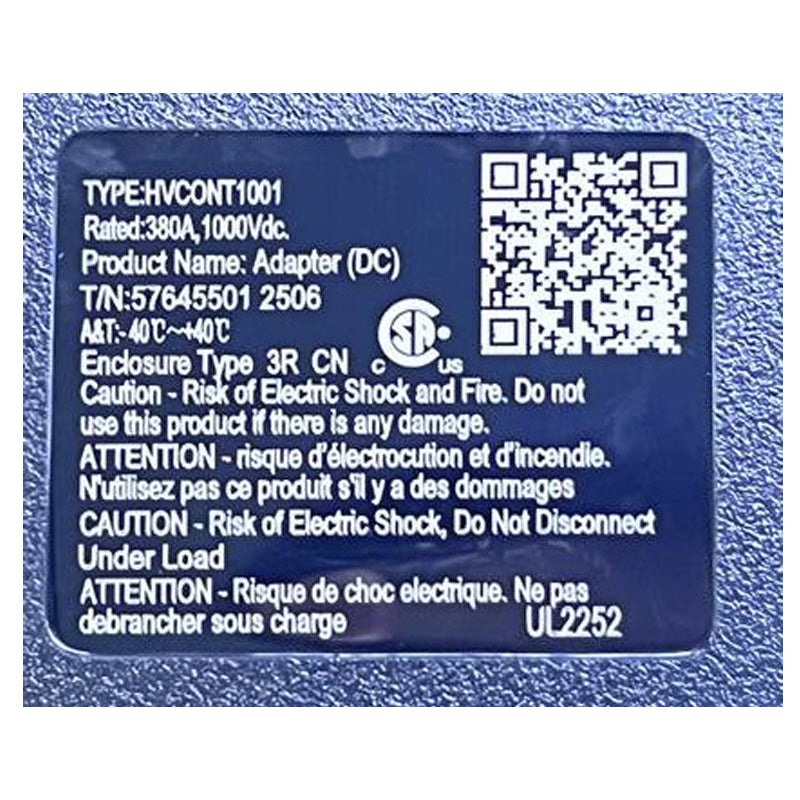

Product Specification:	UL2252
Temperature Switch:	Switch off when the temperature exceeds 90°C
