HVCON1MA50ANL7620
![HVCON1MA50ANL7620]()
HVCON1MA50ANL7620
Available: 6 items in stock
- NACS Charging Cable 50A
- 7.62m Length
- Without UHF
- Compliant with SAE J1772, SAE J3400, UL2251
- Product SKU: HVCON1MA50ANL7620
- Category:EV Connectors,New Products
- Contact for high volume orders (25 or more) for special pricing
$487.15 CAD

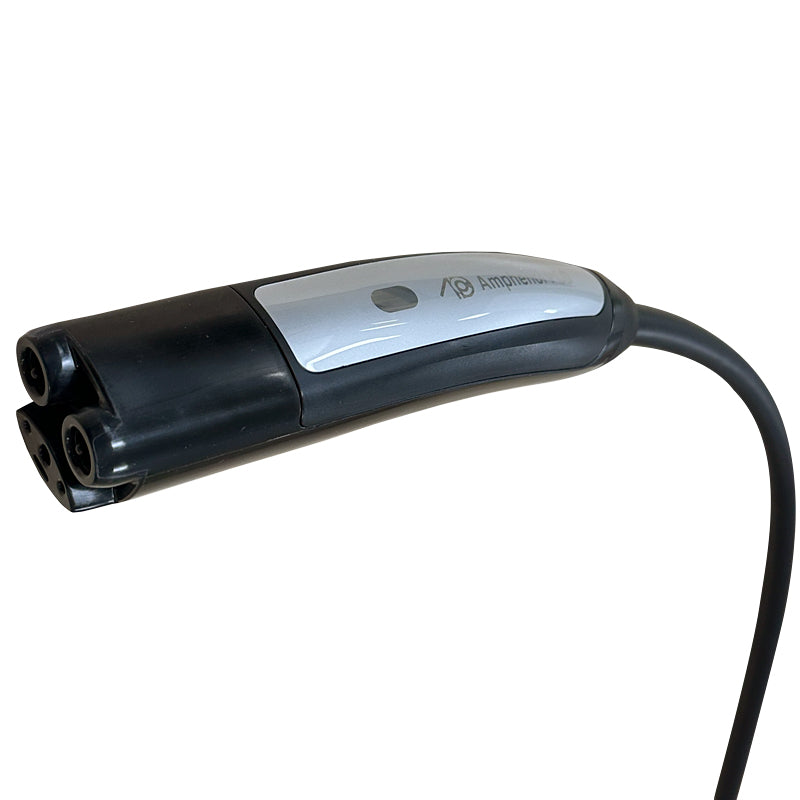

NACS Charging Cable 50A, L=7.62m Without UHF
High Power @ Amphenol is the leading provider of Electric Vehicle Charging Connectors, Cable Assemblies and Customized Cable Solutions for the EV infrastructure industry in North America. They can customize and manufacture domestically a cable assembly that ideally meets any Electric Vehicle Charging Station OEM/MRO requirement.
NACS Charging Cable 50A, L=7.62m Without UHF
High Power @ Amphenol is the leading provider of Electric Vehicle Charging Connectors, Cable Assemblies and Customized Cable Solutions for the EV infrastructure industry in North America. They can customize and manufacture domestically a cable assembly that ideally meets any Electric Vehicle Charging Station OEM/MRO requirement.
| Model: | HVCON1MA50ANL7620 |
| Mating Cycles: | > 10,000 cycles (unloaded) |
| Insertion / Withdrawal Force: |
< 100N |
| Rated Current: | 50A |
| Rated Voltage: | 600V AC |
| Protection Degree: | Type 3S IP67, IP69 |
| Ambient Temperature: | -40°C to 50°C |
| Shell: | Thermoplastic |
| Contact: | Copper alloy |
| lnserts: | Thermoplastic |
| Sealing Gasket: | Rubber or silicon rubber |
| Insulator Inflammability: | UL94V0 |
| Compliant With: | SAE J1772 SAE J3400 UL2251 |
