HVBI002R6AMHDGR
Categories
Amphenol

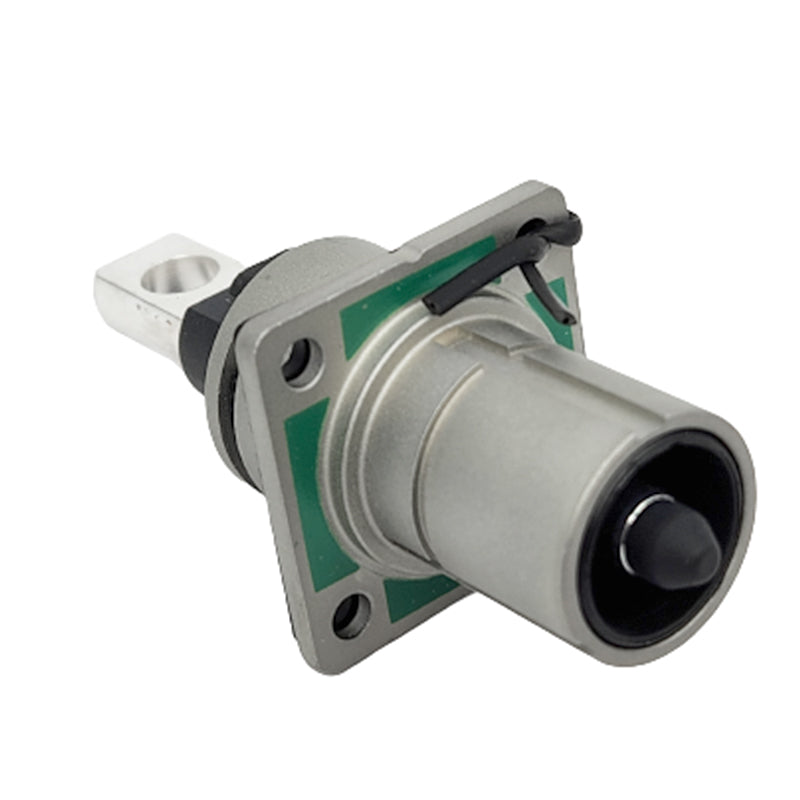

HVBI002R6AMHDGR

Available: 18 items in stock
  • Receptacle
  • 6MM Male Contact
  • With HVIL
  • Cooper Bar Termination
  • 120° Green
$40.19 CAD

HVBI Circular Automotive Connectors

Amphenol PCD Shenzhen HVBI Circular Automotive Connectors are a high-quality, high voltage electric vehicle (EV) solution. The connectors are powered by Amphenol Radsok technology that provides high amperages in smaller spaces, high reliability, high current ratings, low mating force, and high durability. The EMI shielded HVBI connectors utilize a push-pull high voltage interlock loop (HVIL) locking system with an audible “click” requiring no tool for unmating. These high voltage connectors are easy to install in limited spaces and are RoHS Compliant.

Datasheet (PDF)
Drawing (PDF)

HVBI Circular Automotive Connectors

Amphenol PCD Shenzhen HVBI Circular Automotive Connectors are a high-quality, high voltage electric vehicle (EV) solution. The connectors are powered by Amphenol Radsok technology that provides high amperages in smaller spaces, high reliability, high current ratings, low mating force, and high durability. The EMI shielded HVBI connectors utilize a push-pull high voltage interlock loop (HVIL) locking system with an audible “click” requiring no tool for unmating. These high voltage connectors are easy to install in limited spaces and are RoHS Compliant.

Datasheet (PDF)
Drawing (PDF)

Model: HVBI002R6AMHDGR
Number of Positions (w/o PE)  1
Rated Voltage: 1000V
Rated Current: 120A + 2 X 7.5A
IP-Class Mated: IP67 / IP6K9K
Contact Diameter:  6.0 mm
Gender:  Male
Part Category Male Receptacle
Connection: Bus Bar
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
Product Type: Power Connector
Shielding: Yes
RoHS Compliant: Yes
