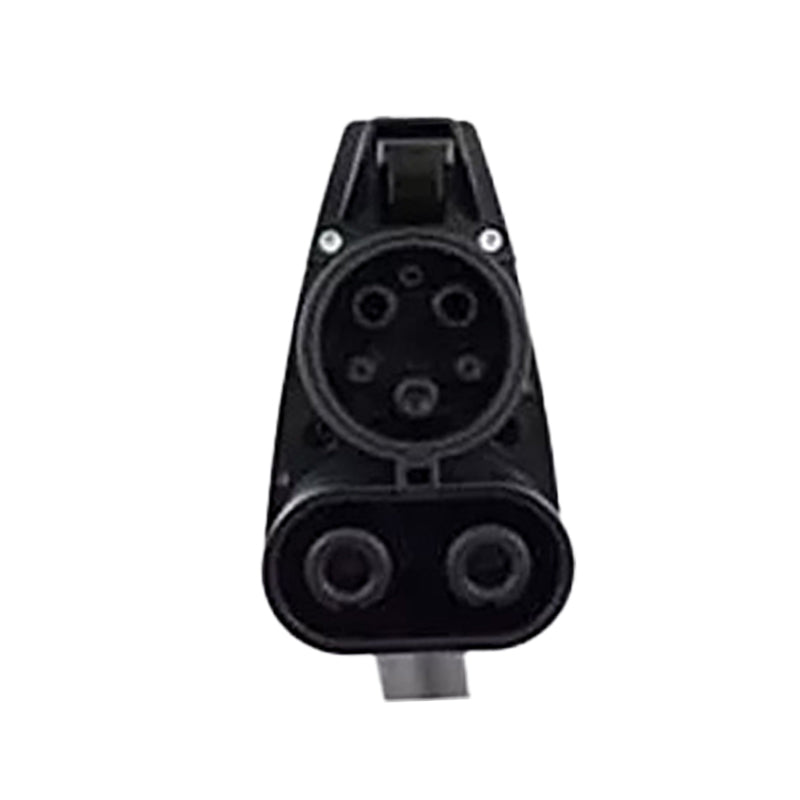

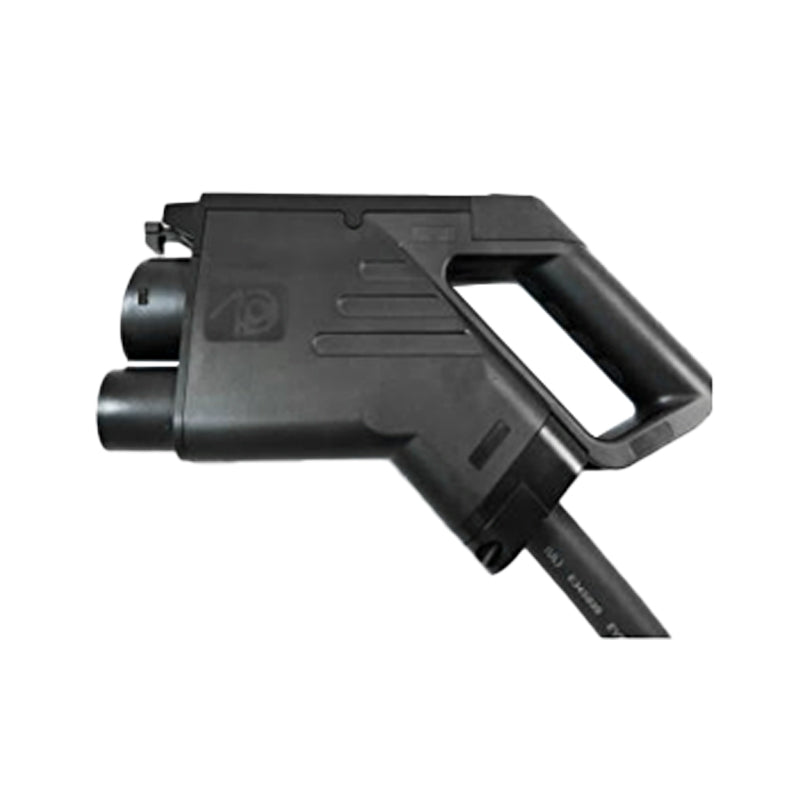

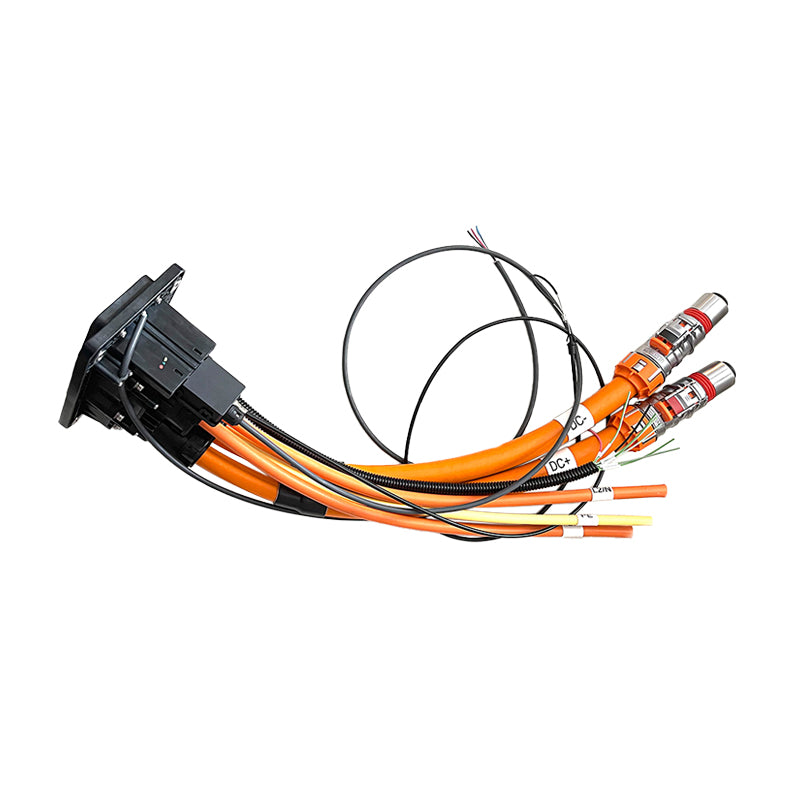

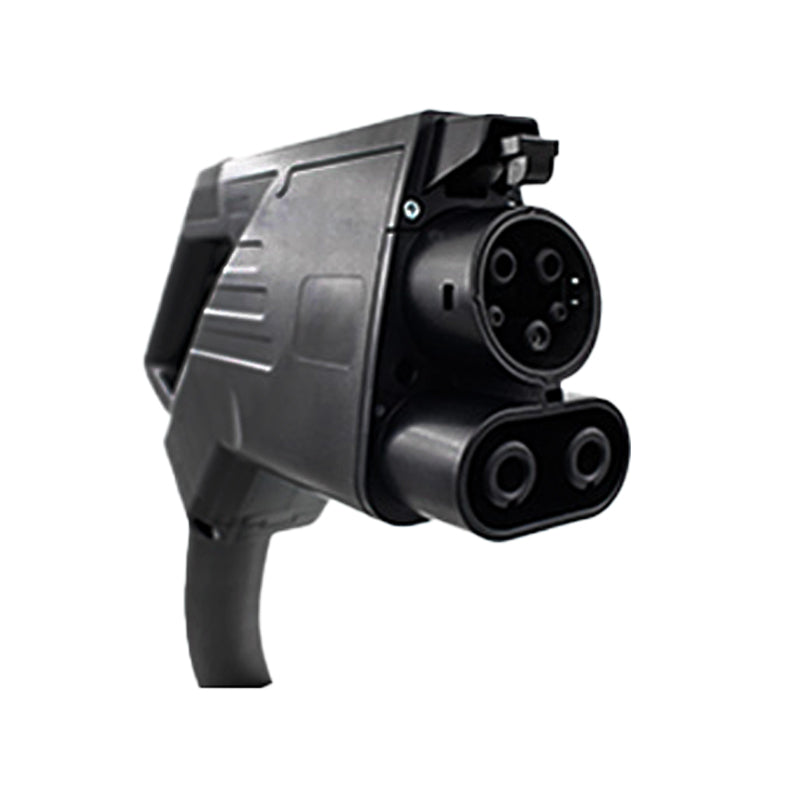

CCS1 SAE Combo
![CCS1 SAE Combo]()
![CCS1 SAE Combo]()
![CCS1 SAE Combo]()
![CCS1 SAE Combo]()
CCS1 SAE EV/Battery Storage
CCS1 SAE EV/Battery Storage
CCS1 SAE Combo
- 65 AMP 1000 V DC
- 125 AMP 1000 V DC
- 200 AMP 1000 V DC
- 500 AMP 1000 V DC
- Compliant with SAE J1772 & IEC 62196-3
- Product SKU: CCS1 SAE Combo
- Category:EV Connectors
- Contact for high volume orders (25 or more) for special pricing
CCS1 SAE EV/Battery Storage
Amphenol Energy Technologies is the leading provider of Electric Vehicle Charging Connectors, Cable Assemblies and Customized Cable Solutions for the EV infrastructure industry in North America. We can customize and manufacture domestically a cable assembly that ideally meets any Electric Vehicle Charging Station OEM/MRO requirement.
CCS1 SAE EV/Battery Storage
Amphenol Energy Technologies is the leading provider of Electric Vehicle Charging Connectors, Cable Assemblies and Customized Cable Solutions for the EV infrastructure industry in North America. We can customize and manufacture domestically a cable assembly that ideally meets any Electric Vehicle Charging Station OEM/MRO requirement.
| Model: |
CCS1 SAE COMBO |
| Mating Cycles: | > 10,000 cycles (unloaded) |
| Insertion / Withdrawal Force: |
< 75N |
| Rated Current: | 200A max |
| Rated Voltage: | 600V DC |
| Contact Resistance: | 0.35MΩ max |
| Insulation Resistance: | > 100MΩ |
| Temperature Sensor: | PT1000 The two power contacts DC+ and DC- are monitored by temperature-dependent resistor sensors |
| Protection Degree: | 3R |
| Ambient Temperature: | -30°C to 50°C |
| Shell: | Nylon |
| Contact: | Copper alloy, silver or nickel plating |
| Inserts: | Thermoplastic |
| Sealing Gasket: | Rubber or silicon rubber |
| Insulator Inflammability: | UL94V0 |
