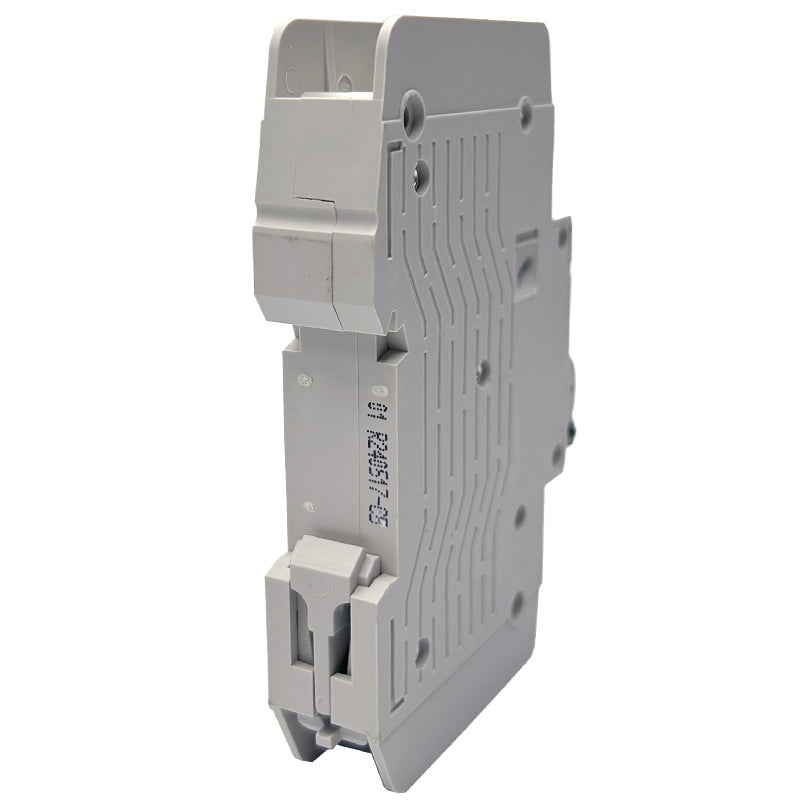

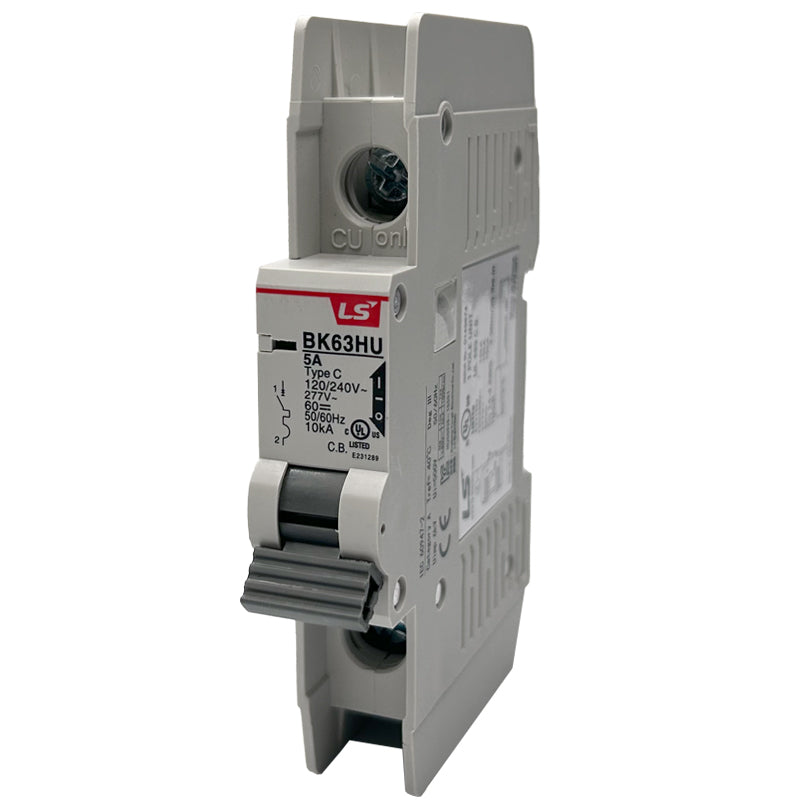

BK63HU 1P C5A 277VAC - 0626050363
![BK63HU 1P C5A 277VAC - 0626050363]()
![BK63HU 1P C5A 277VAC - 0626050363]()
BK63HU 1P C5A 277VAC - 0626050363
Available: 10 items in stock
- Miniature Circuit Breaker
- UL489
- 1 pole
- Operating voltage: 277 V AC
- Current rating: 5 A
- SCCR: 10 kA
- Trip curve: C
- Product SKU: 0626050363
- Category:Circuit Breakers,New Products
- Contact for high volume orders (25 or more) for special pricing
$24.50 CAD
Miniature Circuit Breakers
LS ELECTRIC Miniature Circuit Breakers are placed directly above the load and are designed to protect final loads. They are ideal for protection of circuits in industrial, commercial, and residential sectors, and ensures the following functions: protection against short-circuit and overload currents, isolation, and protection against indirect contact.
Miniature Circuit Breakers
LS ELECTRIC Miniature Circuit Breakers are placed directly above the load and are designed to protect final loads. They are ideal for protection of circuits in industrial, commercial, and residential sectors, and ensures the following functions: protection against short-circuit and overload currents, isolation, and protection against indirect contact.
| Model: | BK63HU-1P-C5A-277VAC Item Number: 0626050363 |
| Standard: | UL489 |
| Protection: | Overload, Short Circuit |
| Rated current: | 5 A |
| Number of poles: | 1 |
| Rated short circuit capacity: | 10 kA |
| Operating voltage: | 277 V AC |
| Rated frequency: | 50/60 Hz |
| Reference temperature: | 40℃ |
| Normal ambient temperature: | -5 ~ 40℃ |
| Tripping curve: | C Curve |
| Trip type: | Terminal with stirrup (Indirect pressure) |
| Terminal size acceptability - Min/Max: | 14 / 4AWG |
| Tightening torque: | 3.9 Nm (35 Ibf-in) |
| Installation: | Mounting on 35mm din rail |
| Protection degree: | IP20 |
| Relative humidity: | 45~85%RH |
| Electrical endurance: | 6,000 |
| Maximum switching frequency (Time/h): | 360/h |
| Approvals: | UL, CB, ABS |
