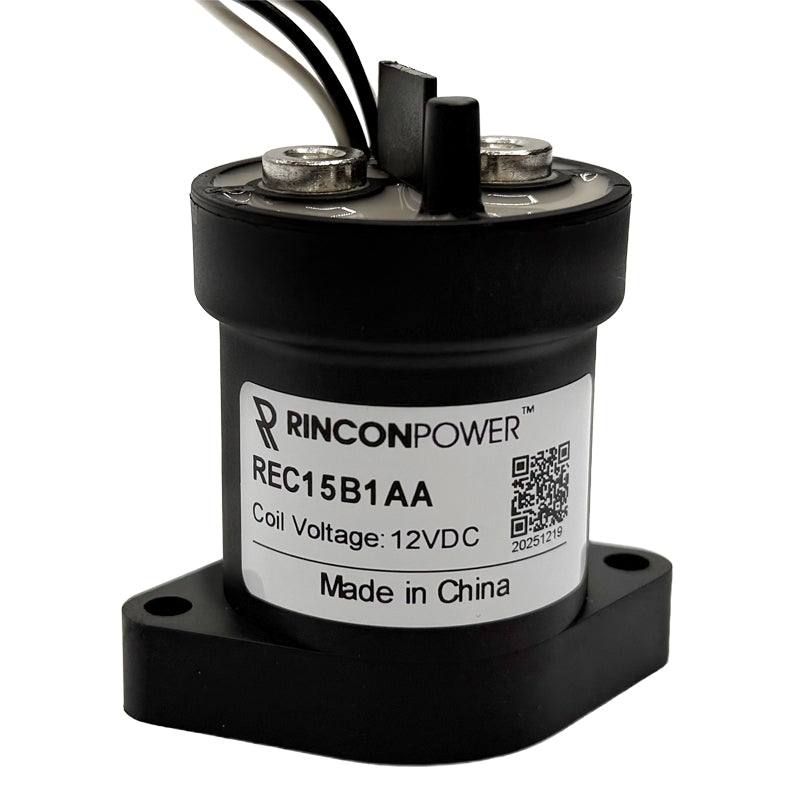

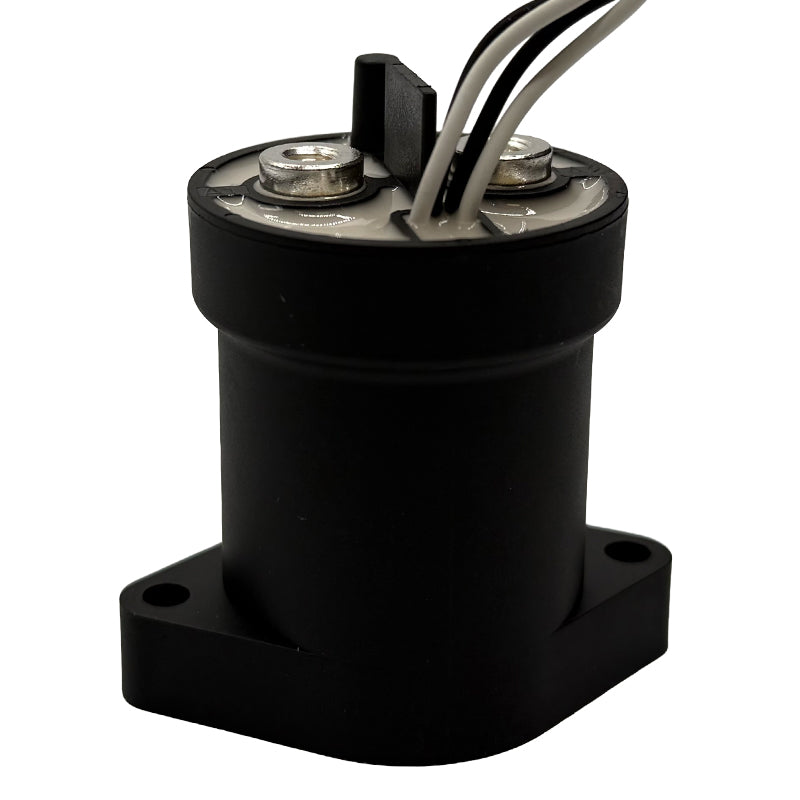

REC15B1AA
![REC15B1AA]()
![REC15B1AA]()
REC15B1AA
Available: 60 items in stock
- Hermetic seal with gas fill
- Optional auxiliary contacts – for main position feedback
- Meets RoHS 2011/65/EU
- CE certified
- Product SKU: REC15B1AA
- Category:AC/DC Contactors,New Products
- Contact for high volume orders (25 or more) for special pricing
$55.00 CAD
| Model: |
REC15B1AA |
| Contact Arrangement: | Form X, SPST- NO |
| Max Switching Voltage: |
1,000 VDC |
| Dielectric Withstand Voltage Contacts to Coil: | 4,000 VAC, 1 minute |
| Dielectric Withstand Voltage Across Open Contacts: | 4,000 VDC, 1 minute |
| Continuous Current: |
35mm2 conductor: 150A |
| Overload Current: | 30 seconds: 500A 3 minutes: 200A |
| Max Short Circuit Current: |
1,250A @ 1s |
| Min Insulation Resistance: | 1,000 MΩ @ 1,000 VDC |
| Contact Resistance: | 0.4 mΩ (max) / 0.25 mΩ (typical) @ 100A |
| Operate Time (Max, incl bounce): | 25ms |
| Release Time (Max): | 10ms |
| Shock - Functional, 1/2 Sine, 11ms: | 20G |
| Shock - Destructive, 1/2 Sine, 11ms: | 50G |
| Operating Temperature: | -40˚C to 85˚C |
| Ingress Protection: | Exceeds IP69 (hermetically sealed) |
| Mechanical Life: | 500,000 |
