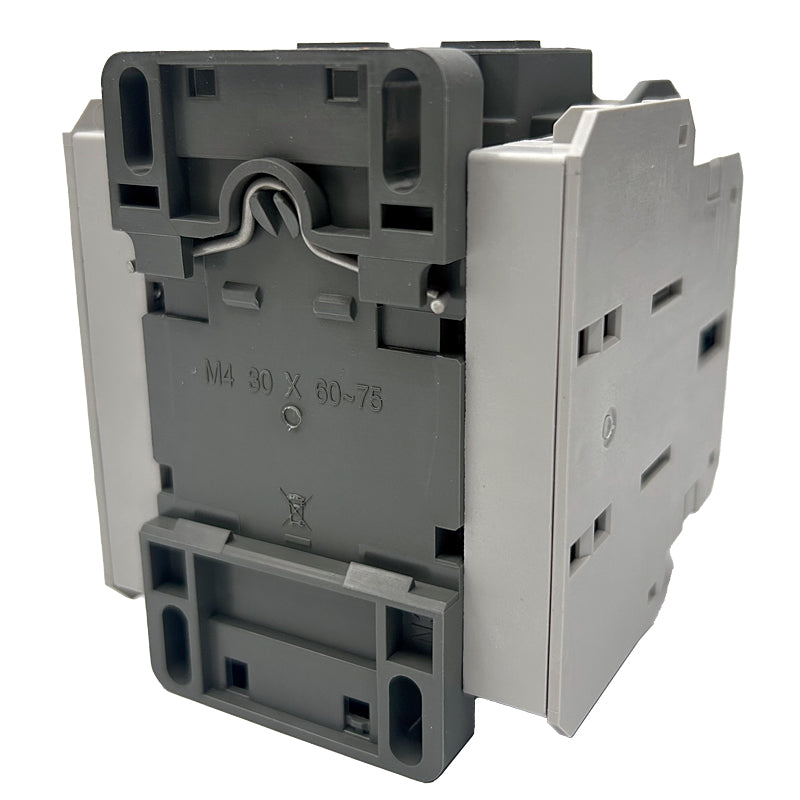

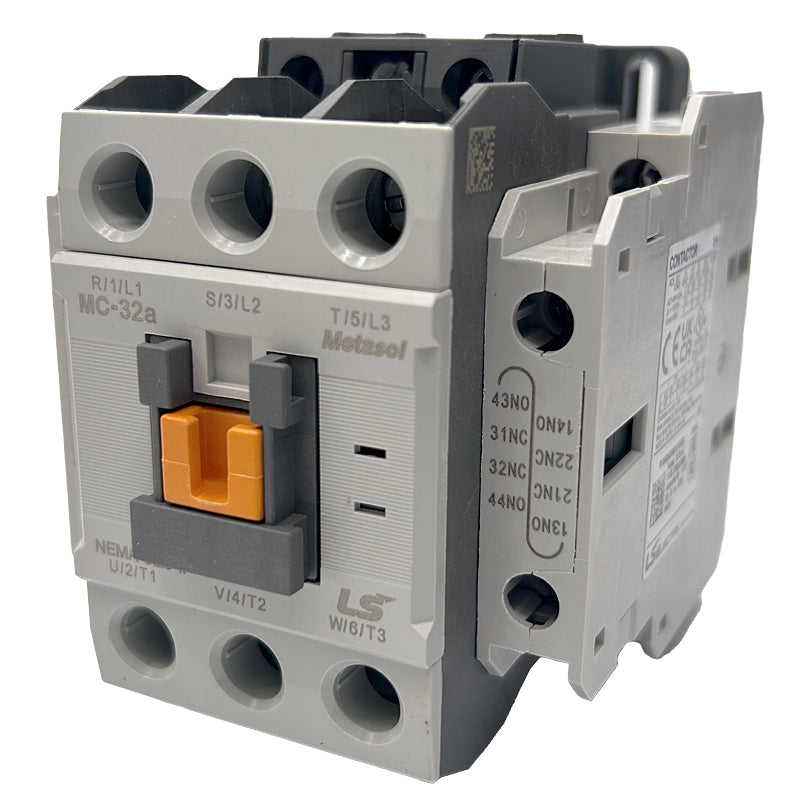

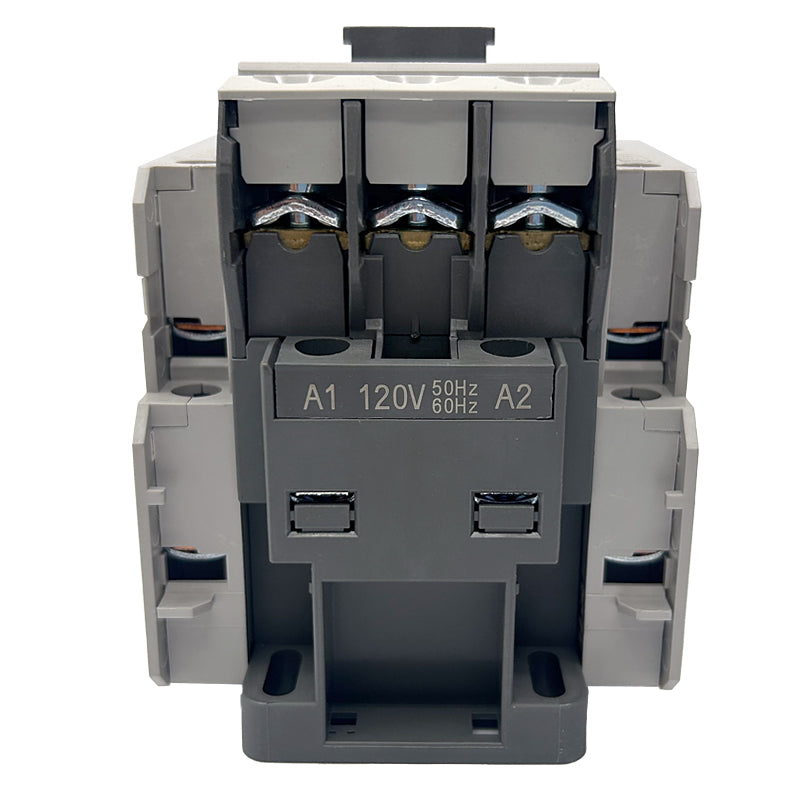

MC-32a AC120V 50/60Hz SCREW 2a2b (Metasol) EXP
![MC-32a AC120V 50/60Hz SCREW 2a2b (Metasol) EXP]()
![MC-32a AC120V 50/60Hz SCREW 2a2b (Metasol) EXP]()
![MC-32a AC120V 50/60Hz SCREW 2a2b (Metasol) EXP]()
MC-32a AC120V 50/60Hz SCREW 2a2b (Metasol) EXP
Available: 10 items in stock
- Reliable in the system: Type ∥ coordination
- Perfect system with peripheral devices
- No arc exposure via sealed structures
- One-touch connection with Din Rail
- Simple wiring with adapter, reversing wire set
- 4-terminal type: Easy wiring of operation coil
- Module type screw terminal
- Interlocking unit with built-in auxiliary contacts (2NO built-in)
- Product SKU: 1336012900
- Category:AC/DC Contactors
- Contact for high volume orders (25 or more) for special pricing
$62.44 CAD
METASOL Series Magnetic Contactor
Designed to show superior technology. High performance and user convenience. Sealed structure has improved its safety features so that no arc flash is exposed. In order to emphasize its durability as an industrial device, Metasol series adopt simple design form and sophisticated shape applying diamond cut concepts on product surface.
METASOL Series Magnetic Contactor
Designed to show superior technology. High performance and user convenience. Sealed structure has improved its safety features so that no arc flash is exposed. In order to emphasize its durability as an industrial device, Metasol series adopt simple design form and sophisticated shape applying diamond cut concepts on product surface.
| Model: | MC32A-30-22-K7-S-E |
| Frame Size: | 40AF |
| Terminal Clamp Type: | Screw |
| Number of Poles: | 3 |
| Auxiliary Contact: | - |
| Coil Voltage: | 120VAC 50/60HZ |
| Rated Current: | 32A |
| Rated Operational Voltage, Ue: | 1000V |
| Rated Insulation Voltage, Ui: | 1000V |
| Rated Impulse Withstand Voltage, Uimp: | 8KV |
| Rated Frequency: | 50/60HZ |
| Mounting Options: | DIN Rail or Screw Mountable |
| Matching Overload Relay: | MT-32 |
