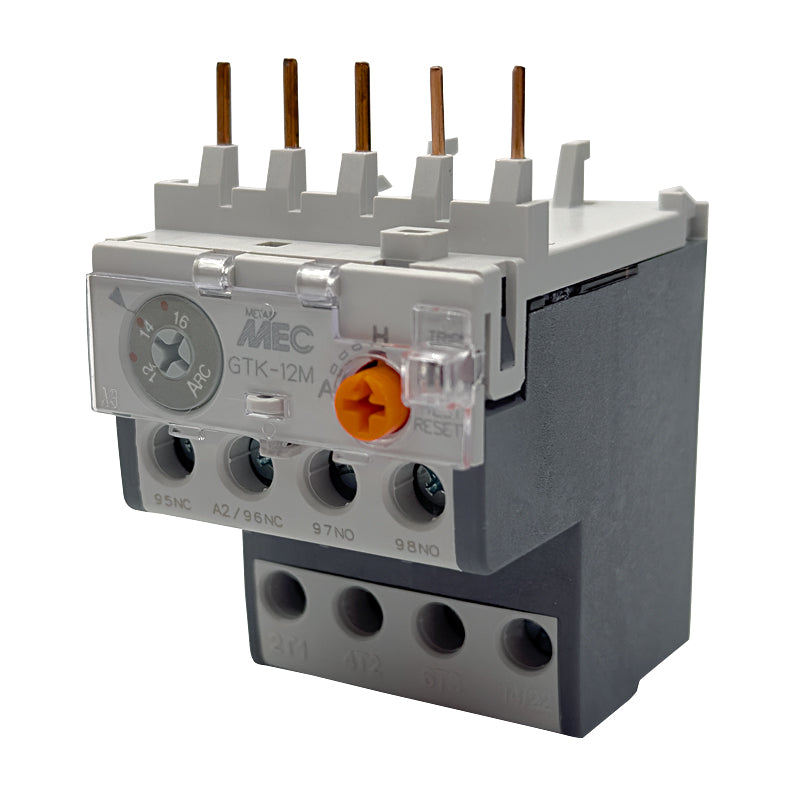

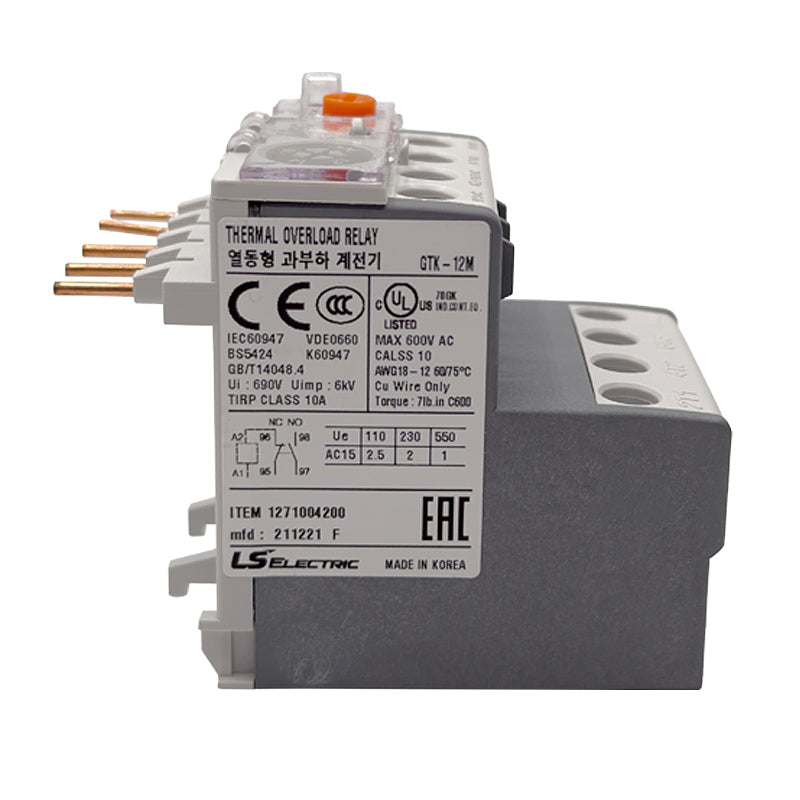

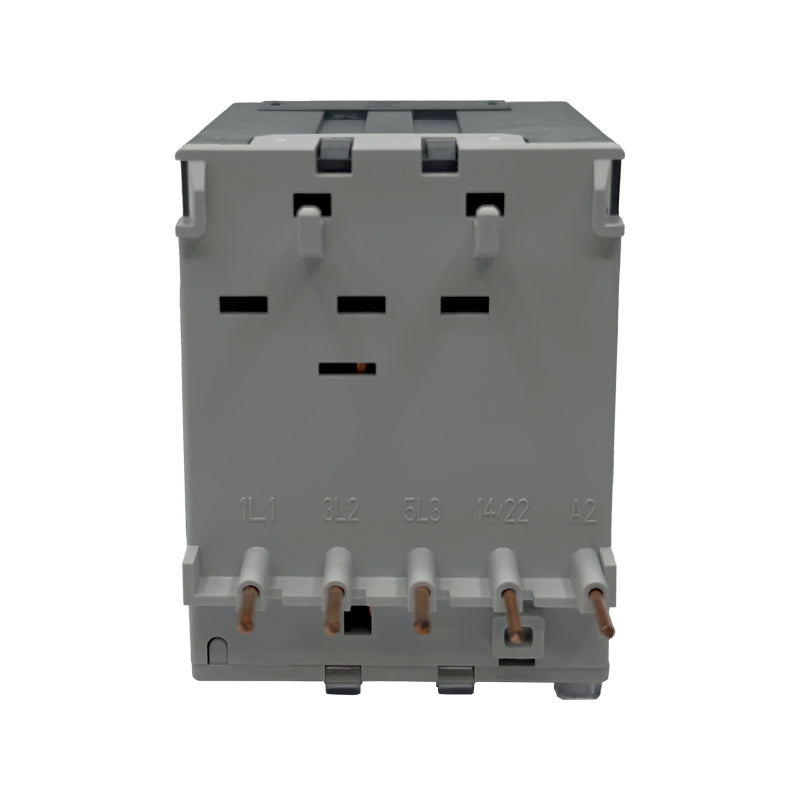

GTK-12M 14A 3H EXP
![GTK-12M 14A 3H EXP]()
![GTK-12M 14A 3H EXP]()
![GTK-12M 14A 3H EXP]()
GTK-12M 14A 3H EXP
Available: 4 items in stock
- Low consumption power
- High density power
- Saving panel size
- Installation space is reduced by 50% of conventional DC operated contactors achieving high performance
- Product SKU: 1271004200
- Category:AC/DC Contactors,New Products
- Contact for high volume orders (25 or more) for special pricing
$101.86 CAD
Mini Thermal Overload Relay
Overload relays are designed for easily mounting directly to contactors or separately by using additional bases or brackets.
Mini Thermal Overload Relay
Overload relays are designed for easily mounting directly to contactors or separately by using additional bases or brackets.
| Model: | GTK-12M 14A 3H EXP (GTK12M-3K-14-S-E) Item Number: 1271004200 |
| Heater Type: |
3K (Differential 3-heater, Trip class 10A) |
| Current Range: | 14(12~16A) |
| Type of Terminal: | Screw |
| Local/Export: | Export |
| Standards: | IEC 60947-4-1, IEC 60947-5-1, UL508 |
| Certificates: | CE, UL, CCC |
| Poles Description: | 3P |
| Trip Class: | 10A |
| Rated Operational Voltage [Ue]: | 690V |
| Rated Insulation Voltage [Ui]: | 690V |
| Rated Withstand Voltage [Uimp]: | 6kV |
| Rated Frequency [Hz]: | 50/60Hz |
| Temperature Compensation (℃): | -5 ~ 40 |
| Functions: | Trip indicating - Test Manual/Automatic Reset |
| Type 2 Coordination with MCCB & TOR (440V): | - |
| Conductor Size (AWG): | 18~12 |
| Conductor Size (mm2): | 2.5 |
| Conductor Charateristic: | 65/75 Cu-wire only |
| Main Terminal Size: | M3.5 |
| Torque (lb-in): | 7 |
| Torque (Nm): | 0.8 |
| Torque (kgf.cm): | 8 |
