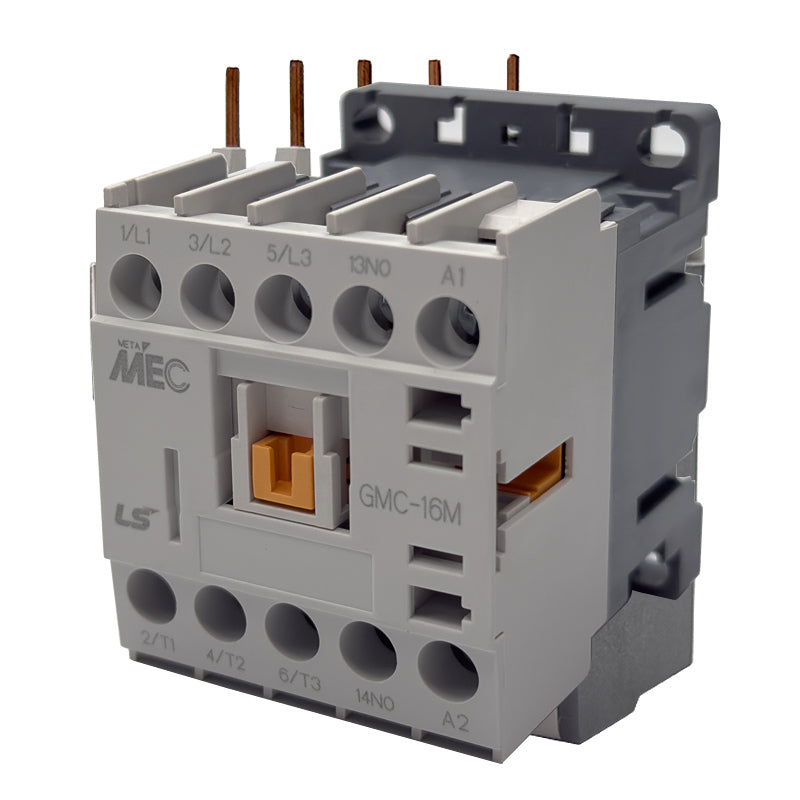

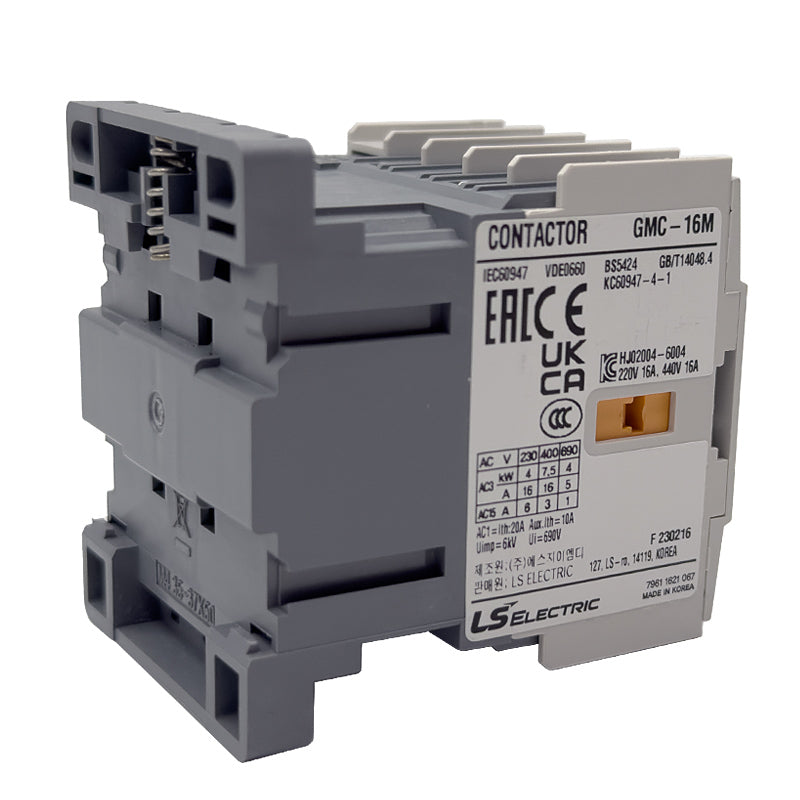

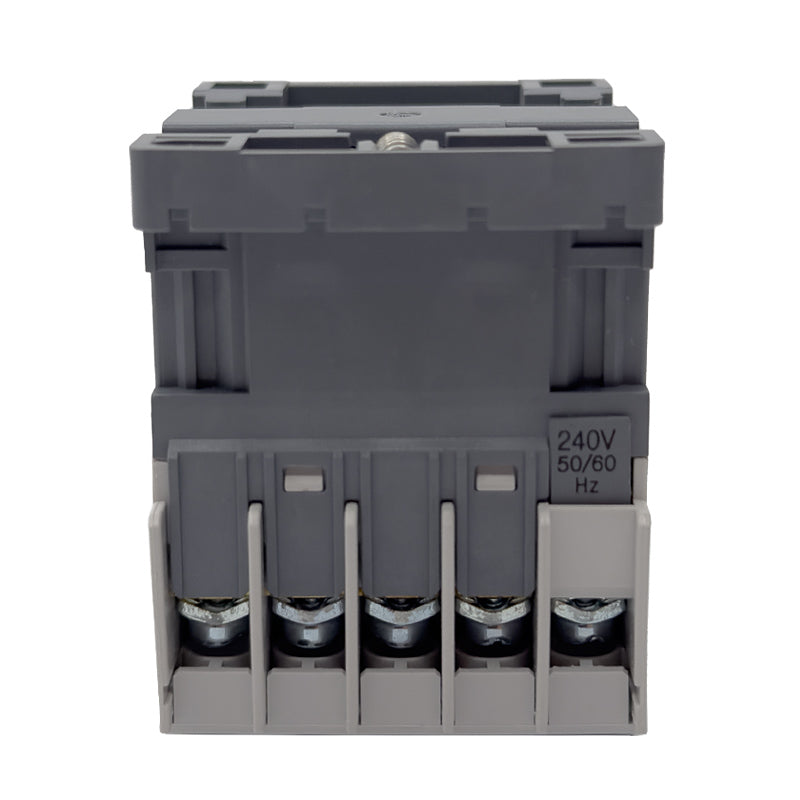

GMC-16M AC240V 50/60Hz 1a EXP
![GMC-16M AC240V 50/60Hz 1a EXP]()
![GMC-16M AC240V 50/60Hz 1a EXP]()
![GMC-16M AC240V 50/60Hz 1a EXP]()
GMC-16M AC240V 50/60Hz 1a EXP
Available: 5 items in stock
- Low consumption power
- High density power
- Saving panel size
- Installation space is reduced by 50% of conventional DC operated contactors achieving high performance
- Product SKU: 1269039600
- Category:AC/DC Contactors,New Products
- Contact for high volume orders (25 or more) for special pricing
$90.44 CAD
Mini Thermal Overload Relay
Overload relays are designed for easily mounting directly to contactors or separately by using additional bases or brackets.
Mini Thermal Overload Relay
Overload relays are designed for easily mounting directly to contactors or separately by using additional bases or brackets.
| Model: | GMC-16M AC240V 50/60Hz 1a EXP (GMC16M-30-10-U7-AC-S-E) Item Number: 1269039600 |
| Main Contact: |
3NO |
| Auxiliary Contact: | 1NO |
| Control Voltage: | AC240V 50/60Hz |
| Type of Terminal: | Screw |
| Local/Export: | Export |
| Standards: | IEC 60947-4-1, IEC 60947-5-1, UL508 |
| Certificates: | CE, CCC - |
| Number of Poles: | 3P |
| Rated Operational Voltage [Ue]: | 690V |
| Rated Insulation Voltage [Ui]: | 690V |
| Rated Withstand Voltage [Uimp]: | 6kV |
| Rated Frequency [Hz]: | 50/60Hz |
| Maximum Operating Rate in Operating Cycles Per Hour(AC3): | 1800 |
| Mechanical Durability (mil.Operations): | 12 |
| Electrical Durability (mil. operations): | 1 |
| Rated Operational Current (AC-1): | 20A |
