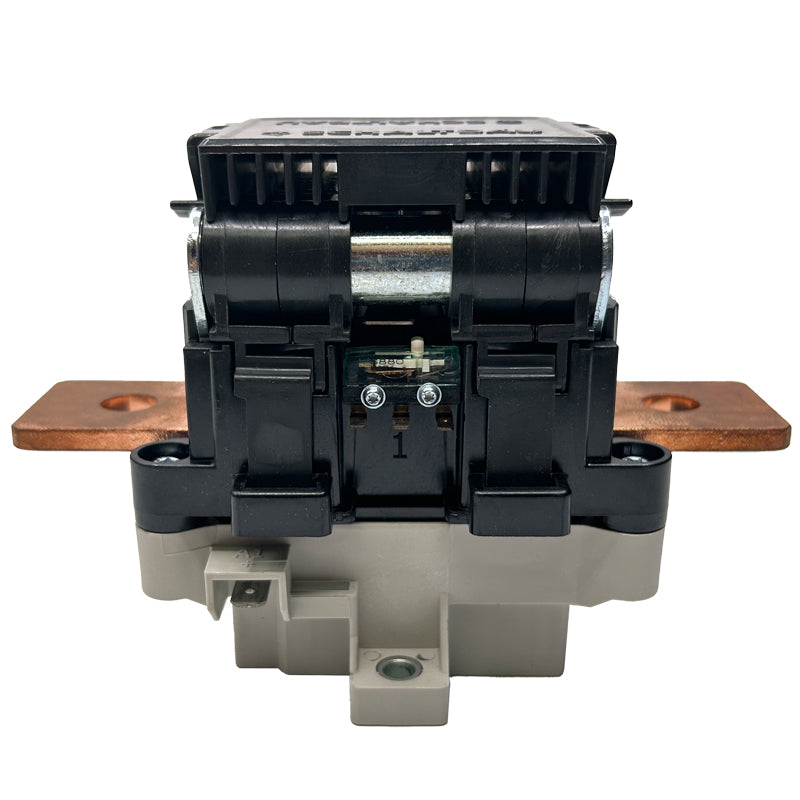

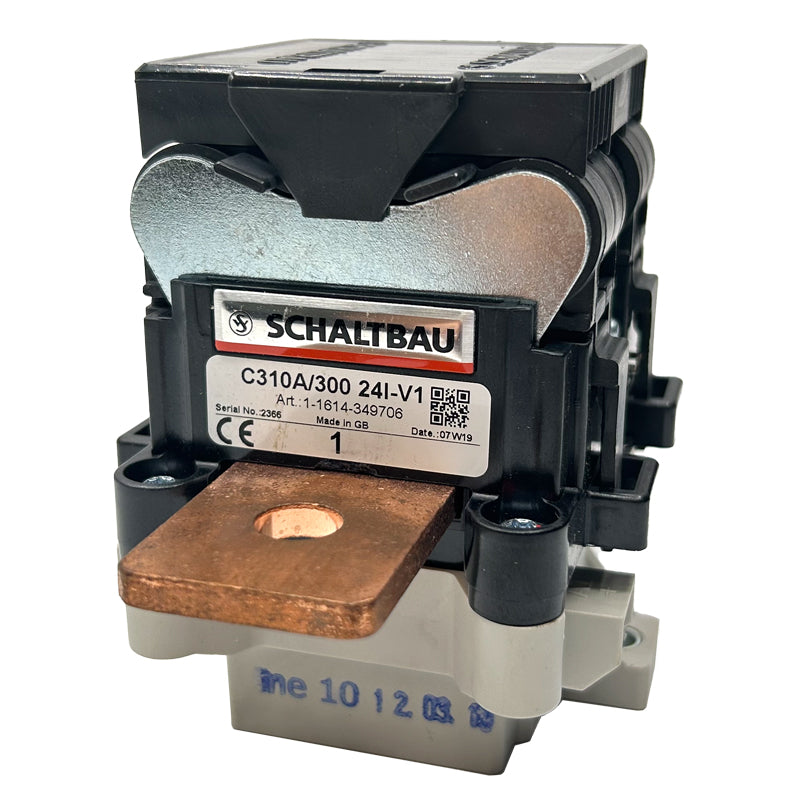

C310A/300 24I-V1
![C310A/300 24I-V1]()
![C310A/300 24I-V1]()
C310A/300 24I-V1
Available: Out of Stock
- Rated insulation voltage Ui up to 1,500 V, version with small arc chamber
- Rated short-circuit making capacity Icm up to 2,500 A
- Conventional free air thermal current Ith up to 500 A
- Rated short-time withstand current Icw up to 3,000 A
- Product SKU: C310A/300-24I-V1
- Category:AC/DC Contactors,New Products
- Contact for high volume orders (25 or more) for special pricing
$226.47 CAD
C310 – AC and bi-directional DC contactors up to 1,500 volts
Compact single-pole NO contactors for AC and DC (bi-directional) up to 1,500 volts rated insulation voltage. Making current up to 2,500 amps; conventional thermal current up to 500 amps; short-time current up to 3,000 amps.
C310 – AC and bi-directional DC contactors up to 1,500 volts
Compact single-pole NO contactors for AC and DC (bi-directional) up to 1,500 volts rated insulation voltage. Making current up to 2,500 amps; conventional thermal current up to 500 amps; short-time current up to 3,000 amps.
| Model: | C310A/300 24I-V1 |
| Type of voltage: | DC, bi-directional / AC, f ≤ 60 Hz |
| Main contacts, configuration: | 1x NO |
| Rated operational voltage Ue: | 1,000 V |
| Rated insulation voltage Ui: | 1,000 V @ PD3 / 1,500 V @ PD2 |
| Rated impulse withstand voltage Uimp: | 10 kV |
| Pollution degree / Overvoltage category: | PD2, PD3: see Ue and Ui / OV3 |
| Conventional free air thermal current Ith: | 300 A (185 mm²) |
| Power dissipation per pole Ith @ 40 °C: | 11 W |
| Pole impedance: | 120 μΩ |
